TYM T400 Service Manual

SECTION 5. EARTHING POINT

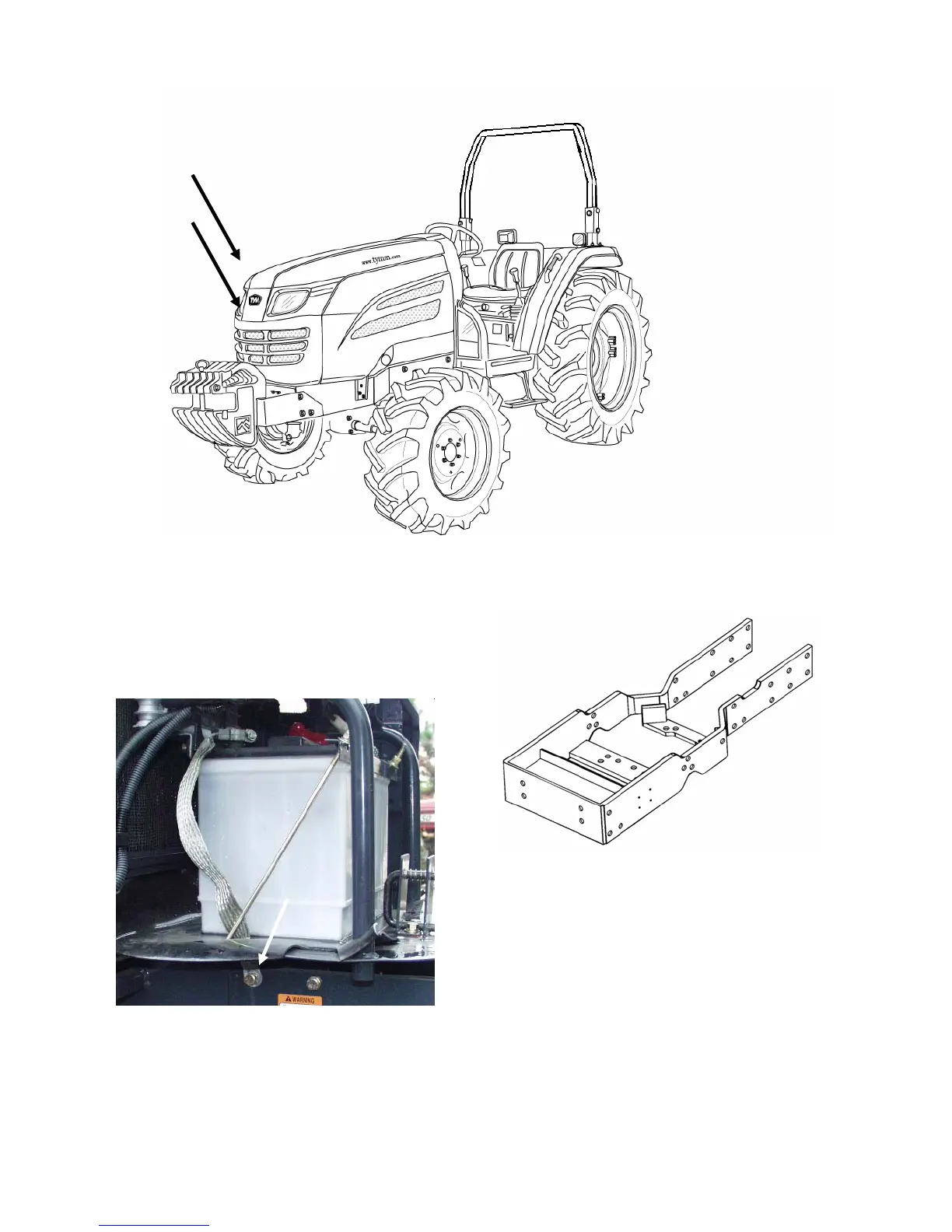

Fig.10-24
10-11
1) Front axle bracket (RH)
Earthed at upper upper tapped hole in the
axle bracket A.
A
2) Contact surfaces of the axle bracket and engine
where they tightened together
Fig.10-25
Fig.10-26
3) Right surface of the frame comp.Where the
battery bracket is to be installed.
1
3
