TYM T400 Service Manual

11-10
(3) Turn signal switch
Replace a defective
switch assembly.

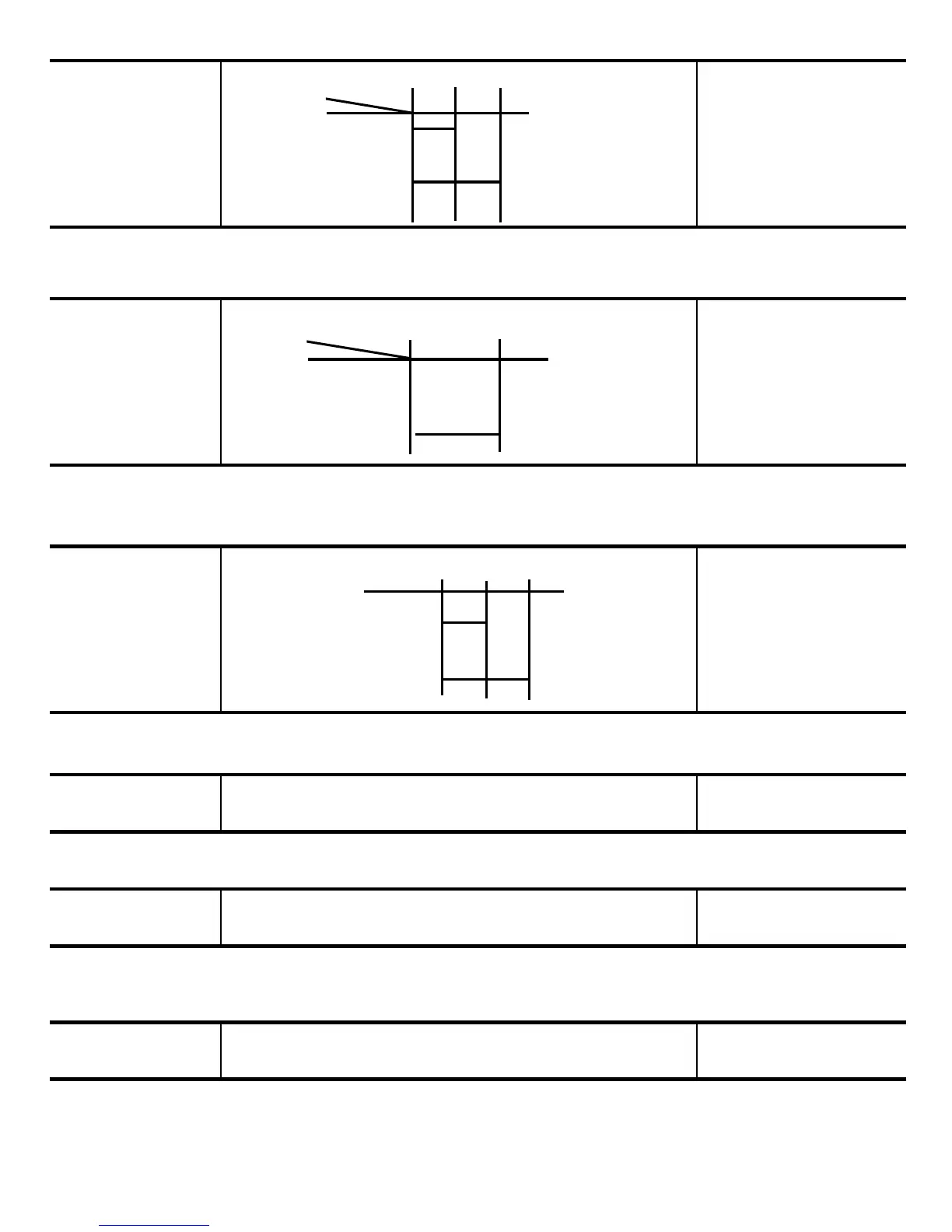

●Turn signal
switch
●
●
●●
color
coding
1
OFF
2
(4) Horn switch
Replace a defective
switch assembly.
●Horn switch
●
●
R
GW
OFF
ON
color
coding
(5) PARKING AND LIGHT SWITCH
Replace a defective
switch assembly.
Continuity across
each terminal
●●
●
●
0
1
LW LB L
(6) PTO SWITCH
Replace a defective
switch assembly.
Switched on when lever is moved by about 3 mm
(0.12 in) across R and LR
Continuity across
each terminal
(7) STOP LIGHT SWITCH
Replace a defective
switch assembly.
Switched on when actuator is pushed in by
about 3 mm(0.12 in)assembly
Continuity across
each terminal
(8) PARKING BRAKE SWITCH
Replace a defective
switch assembly.
Switched on when lever is pulled up by about
3 mm(0.12 in)
Continuity across
each terminal
