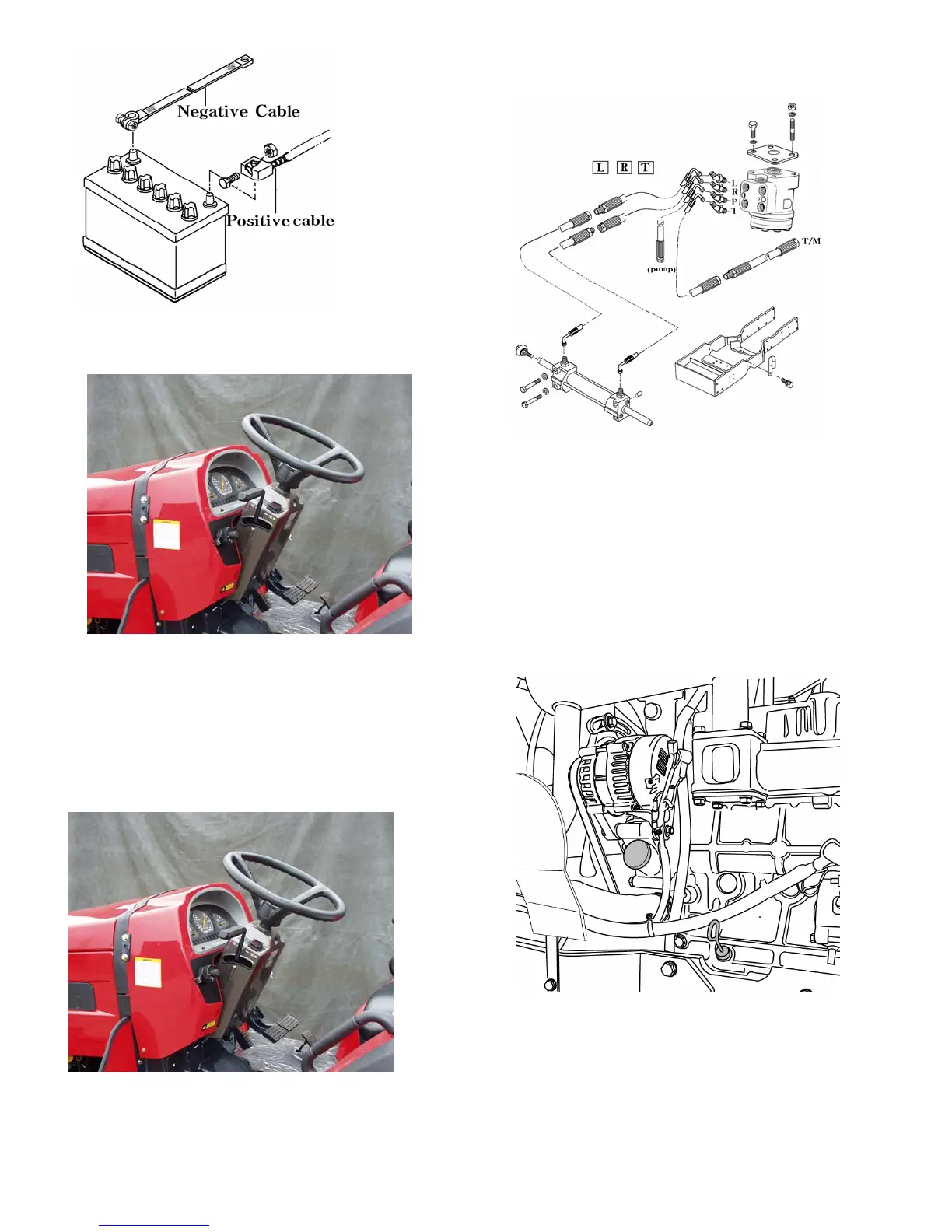

5) Disconnect the battery cables.
6) Disconnect the panel instrument set removing
bolts(4 nos.)
Fig.2-15
Note:
-Tilt the steering column rearwards.
-Lift up the panel set and disconnect
the wiring couplers.
7) Remove the cover.
Note:
- Disconnect the linear shift control cable
- Disconnect the cable from both the steering lever side
and transmission.
10) Remove the mounting bolts and dismounting the
dash panel
FIG.2-18 hardware Disassembly
11) Disconnect the rubber hose from the suction
pipe.
Fig.2-17
8) Disconnect the hydraulic hose from the power
steering (orbitrol)
2-8
Fig.2-16
Fig.2-14
