5-20
3.1 DISASSEMBLY
Separation the spacer transmission case and rear transmission case from each other referring
paragraph 5.(1) in SECTION 4.SEPARATION OF MAJOR COMPONENTS in chapter 2.

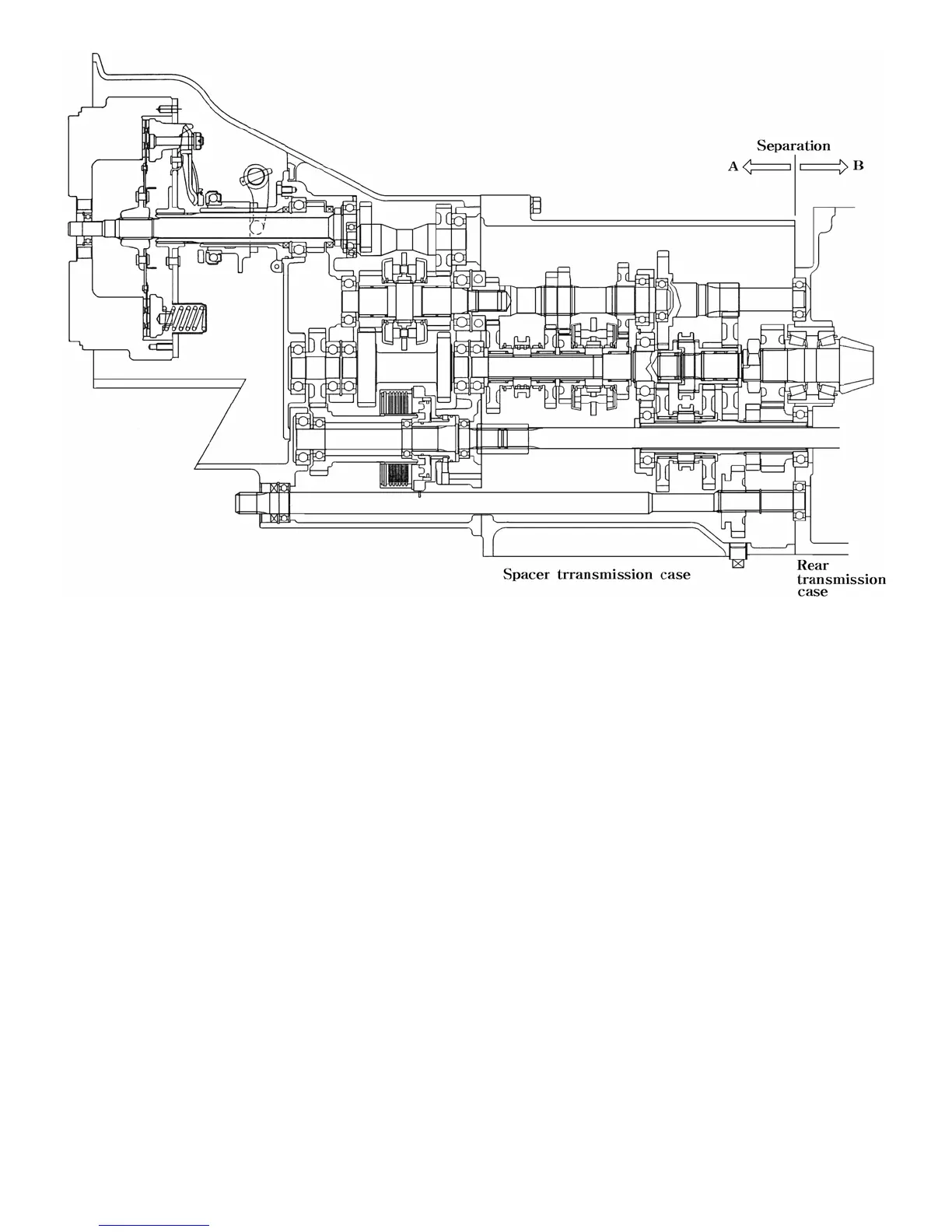

With this operation,the transmission is divided into parts A and B part A includes main speed shift and
mechanism and part B includes speed shifting and 4WD shifting mechanisms.(fig.5-26)
Note:
The separation of the gears mentioned in the figure is possible without dividing the front transmission
and the spacer transmission from each other
Fig.5-40
