TYM T400 Service Manual

5-22

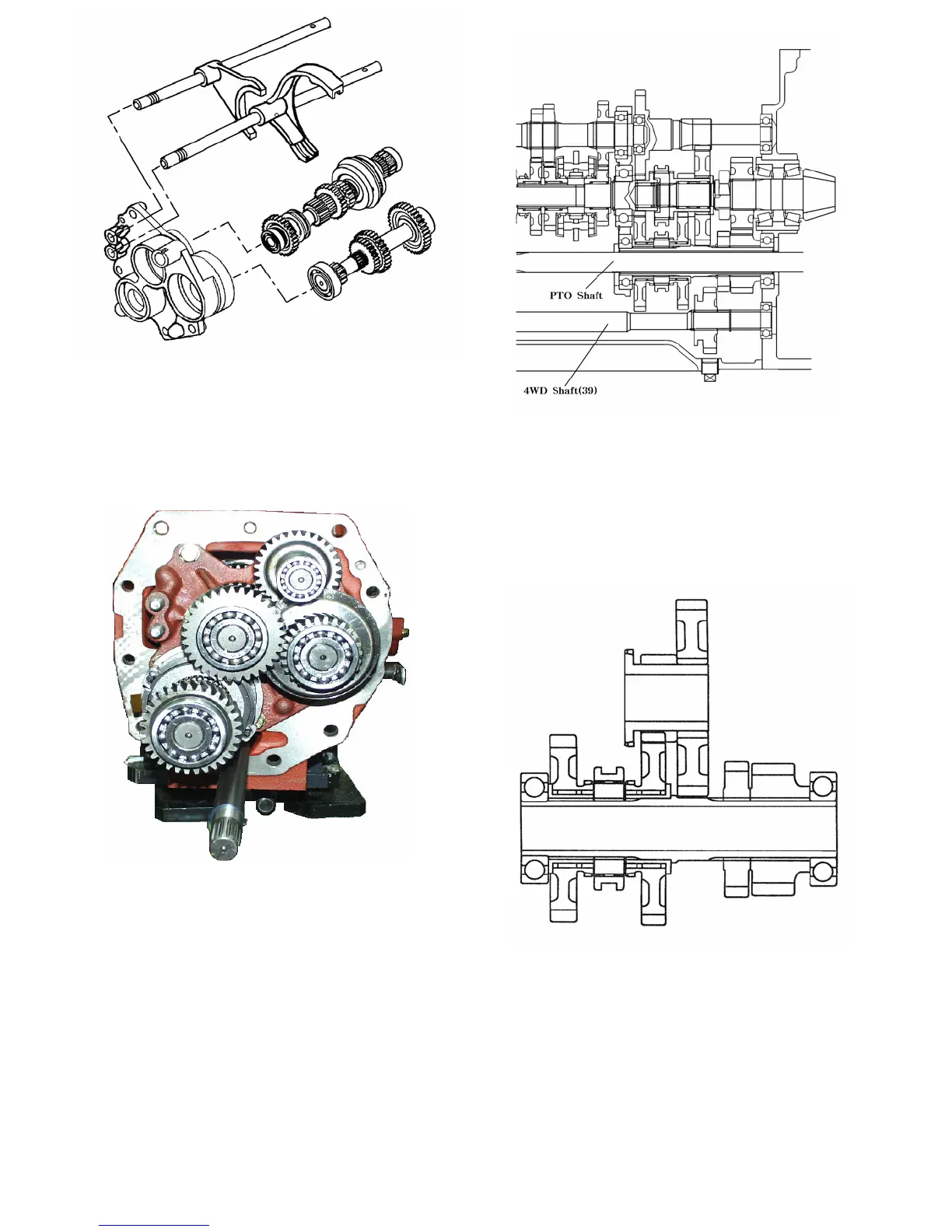

(2)Disassembly of the sub-change gears
(Speed range shift)
a.Remove the sub-shifter and shifter stay.
b.Pull out the PTO shaft ,4WD shaft and gear
Fig.5-44
c. Remove the snap ring from the end of the
pinion gear shaft
d. Remove the hub
e. Remove the sub-change gears.
Fig.5-45
Fig.5-43.
Fig.5-45
