TYM T603 Manual

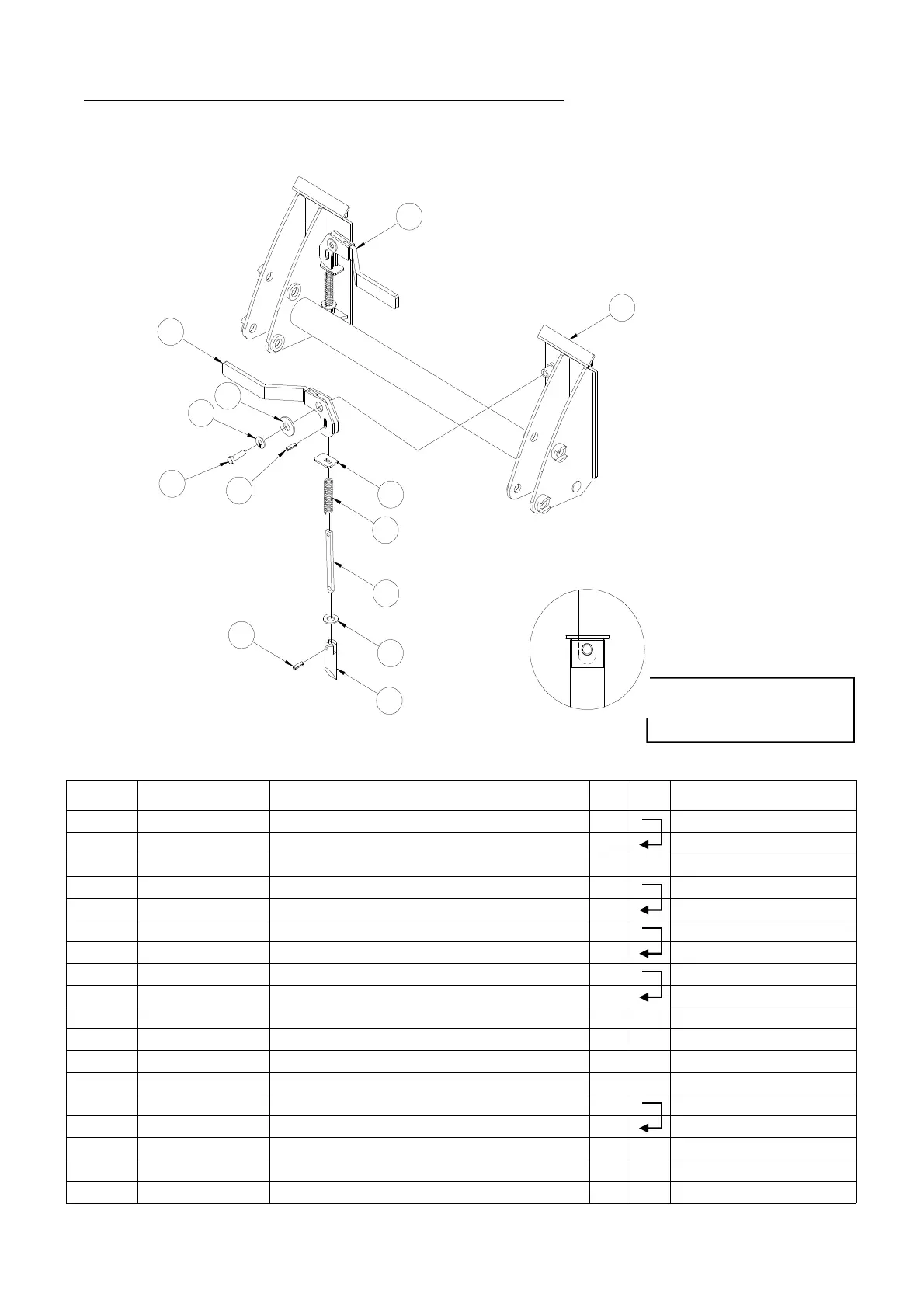

QUICK ATTACHMENT (UPDATED 09, 18, 2008)
12
9
7
3
5
10
4
1
2
11
REF.NO
REF.NOREF.NO
REF.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
0 LTS21-46000 QUICK ATTA. ASS'Y, NO 1~12 1
04.03.2007~
0 LTS21-46000-01 QUICK ATTA. ASS'Y, NO 1~12 1
09.18.2009~
1 LTS21-46100 QUICK ATTA. W.A 1
04.03.2007~
2 LTS21-46200 HANDLE-LH 1
04.03.2007~
2 LTS21-46200-01 HANDLE-LH 1
09.18.2009~
3 LTS21-46300 HANDLE-RH 1
04.03.2007~
3 LTS21-46300-01 HANDLE-RH 1
09.18.2009~
4 LTS21-46401 PIN LINK 2
04.03.2007~
4 LTS21-46401-01 PIN LINK 2
09.18.2009~
5 LTS21-46402 PLATE GUIDE 2
04.03.2007~
6 LTS21-46403 WASHER #1 2
04.03.2007~
7 LTS21-46404 WASHER #2 2
04.03.2007~
8 LTS21-46405 PIN, Φ31.5xL112 2
04.03.2007~
9 LTS21-46406 PIN LOCK, Φ9.4x32L 4
04.03.2007~
9 14031-10030 SPRING PIN, Φ10x30L 4
09.18.2009~
10 LTS21-46407 SPRING, I.D20xL130 2
04.03.2007~
11 10191-M1406-35 HEX-BOLT, M14-2.0P 35L 2
04.03.2007~
12 10316-M1400 WASHER-SPRING, M14 2
04.03.2007~
Be sure to assemble,
Be sure to assemble, Be sure to assemble,
Be sure to assemble,
rounding part should be
rounding part should be rounding part should be
rounding part should be
9
4
6
8
