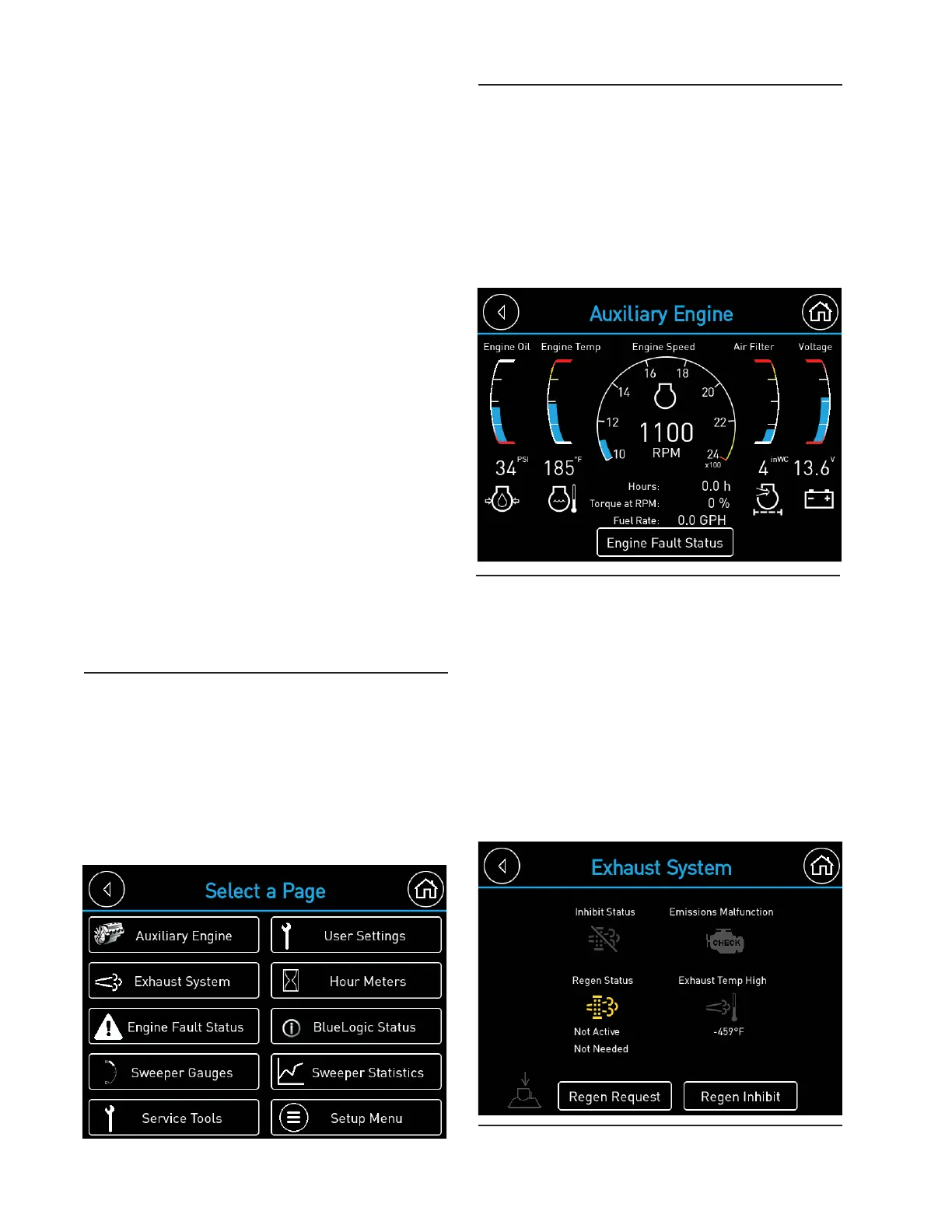

Page Selector
When on the Homepage, pressing the menu
button will bring up the Page Selector screen.
The available pages will vary based on the
options ordered. Once on the Page Selector
screen, simply touch the desired page to
display it. From any page, press the Home
Button to return to the Homepage. Press the
Back button to go back one page.
Auxiliary Engine
Engine speed, engine oil pressure, engine
coolant temperature, and battery voltage will
be displayed as well as engine hours, engine
torque % and fuel rate. These gauges will
always be present regardless of the options
ordered. Pressing the Engine Fault Status
button will bring up the Engine Fault Status
page. This page may also include optional
gauges if equipped.
Exhaust System
Detailed information about the status of
the auxiliary engine exhaust system can
be viewed on the Exhaust System Page.
If a manual regeneration is required, this
is initiated by pressing the Regen Request
button and following the prompts. The
exhaust icons will also be displayed on the
Homepage when active. Pressing the Regen
Inhibit button will prevent the engine from
cleaning itself when needed. This feature
should not be used unless prompted by
trained personnel.
The available pages include:
Homepage
The Homepage is the main screen that will
always show after the ignition is turned on.
The bottom of the page will show sweeper
status indicator lights. The icons will change
color to indicate the state of the feature. A
gray icon indicates the inactive state. The
gauges and icons visible on the Homepage
will vary depending on the options ordered.
Engine Speed will always be displayed in
the center of the screen. The left most gauge
will display engine temperature. The gutter
broom speed selection will also be shown
here for a few seconds after the selection is
changed. The middle left gauge position will
either be engine oil pressure or the optional
Leaf Pressure Bleeder Position Gauge. The
middle right gauge will show optional variable
speed broom setting or optional engine air
fi lter restriction. The right most gauge will
either be battery voltage or the optional
dust suppression water level gauge. If the
sweeper is equipped with optional gauges,
the default engine gauges can be viewed on
the engine data page. Pressing the HOME
button on any page will bring you back to the
Homepage. The display will automatically
close all pages and return to the Homepage
after 5 minutes.
