TypeS BT530033 - DASH MONITOR INSTALLATION - WINDSHIELD MOUNT; POWER UP THE DASH MONITOR; CHARGING THE WIRELESS BACKUP CAMERA

5
1. Take the 12V/24V power adapter and plug adapter
into the right side of the Dash Monitor. Plug the
other end into 12V/24V power port in your car.
2. Now, the Dash Monitor is ready to be activated
by the motion trigger when you wave your hand
in front of the monitor or tap once on the Dash
Monitor screen.
WARNING: Many vehicles provide constant power to the
12V outlet. If your outlet provides constant power,
please remember to unplug the Dash Monitor when
not in use to avoid draining the vehicle battery.

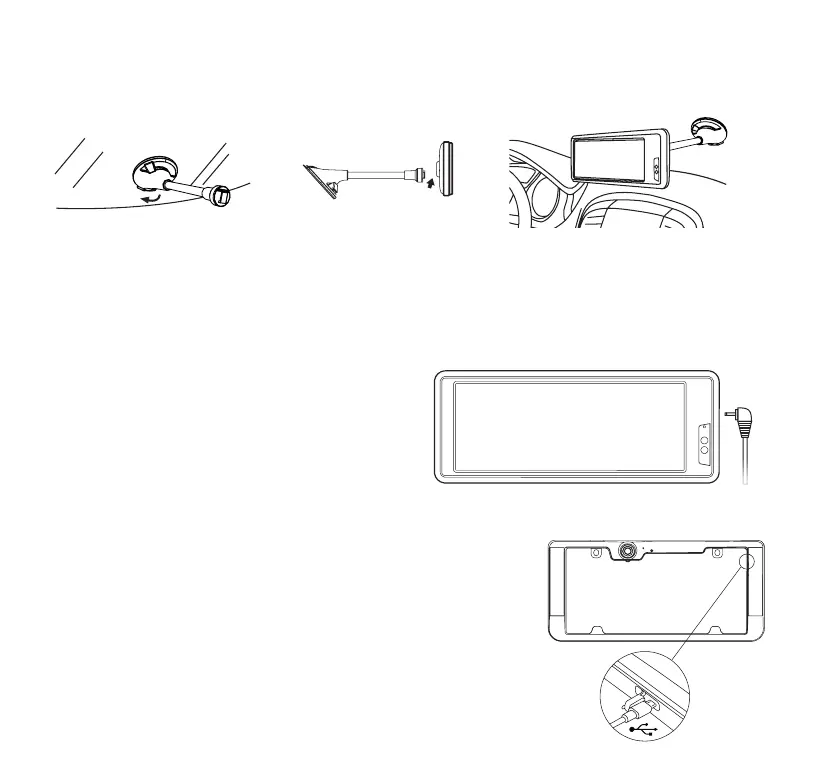

1. Place the Windshield Mount on the windshield and push the knob counter clockwise to lock in place.
2. Attach Dash Monitor to the Windshield Mount and adjust to your desired position.
3. Adjust the tube of the Windshield Mount so the base of the Dash Monitor is touching the surface of
the dashboard in order to reduce vibration rattling.
DASH MONITOR INSTALLATION  WINDSHIELD MOUNT
POWER UP THE DASH MONITOR
CHARGING THE WIRELESS BACKUP CAMERA
1. 2. 3.
Fold back camera power port plug and insert included charging
cable. Most AC wall adapters will work with the USB charging cable.
12V/24V
Power adapter
