4.2. Folding and Unfolding Your Lexis Light
>Folding the Lexis Light<

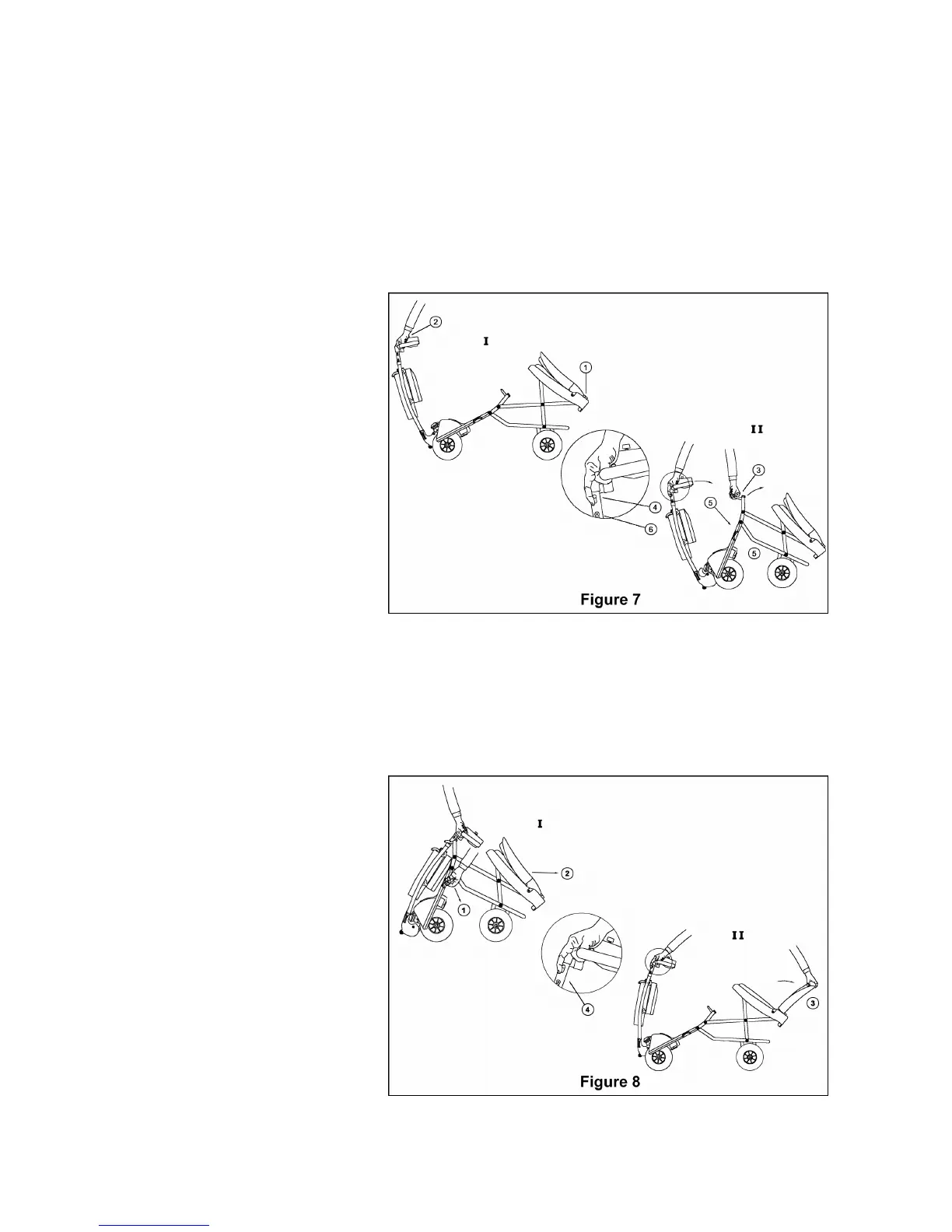

Step 1: Fold backrest of seat down (Fig. 7/1)
Step 2: Hold handgrip of front column (Fig. 7/2) in the “Operating” or
“Entry/Exit” position and push forward away from seat to fold platform
upwards.
Step 3: Grasp platform handle (Fig. 7/3) and pull column lock triggers (Fig.
7/4) to fold column
towards the
platform. Fold
together until
folded frame lock
pin (Fig. 7/5) and
column latch (Fig.
7/6) click into place
and hold the Lexis
Light in
folded position.
>Unfolding the Lexis Light<
Step 1: Pull on the frame lock pin ring (Fig. 8/1) to release platform and rest
front wheels on floor.
Step 2: Pull the seat backrest and lift it upright. (Fig. 8/2)
Step 3: Grasp top of seat
backrest (Fig. 8/3)
and pull column
lock triggers (Fig.
8/4) to release
column from
platform. Pull
outwards to unfold
Easy Fold Deluxe
until platform and
column lock into
the operating
position.
