Tzora Titan User Manual

Disassembly
If necessary, the Titan scooter can be easily disassembled. To transfer the
scooter safely, follow these steps:
1. Turn the power off.

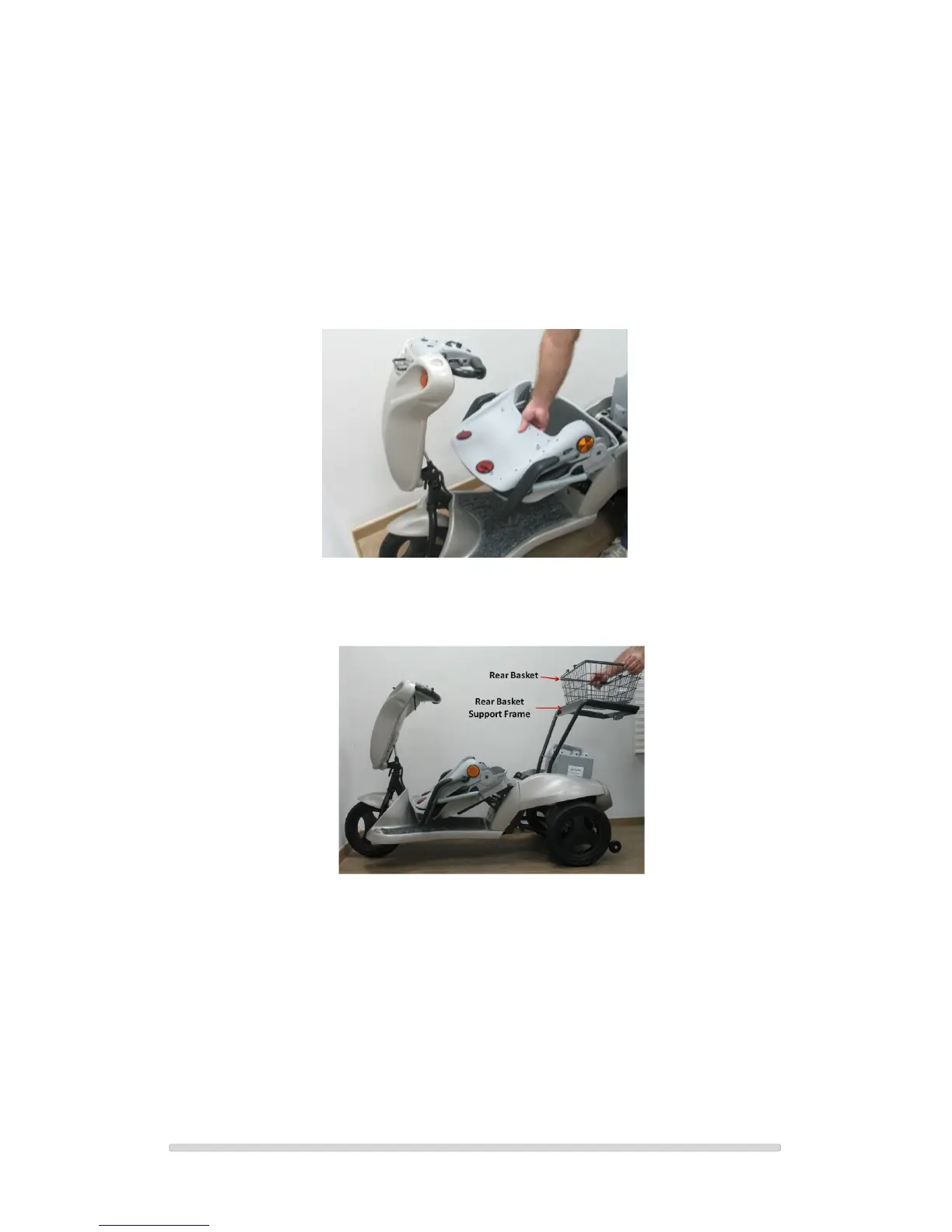

2. Fold the seat down. Slightly raise the seat up and push it down towards
the surface. (See Fig. 9).
Figure 9
3. Remove the rear basket and the basket support frame. (See Fig. 10).
Figure 10
4. Disconnect and remove the batteries from the rear chassis (See Fig.
11).
Pull the battery up first to disconnect from electricity
.
Note
:

Tzora Titan Specifications

General

Weight Capacity	120 kg
Travel Range	40 km
Dimensions	1200 x 600 x 1200 mm
Range	40 km
Max Load	120 kg
