Tzora Titan User Manual

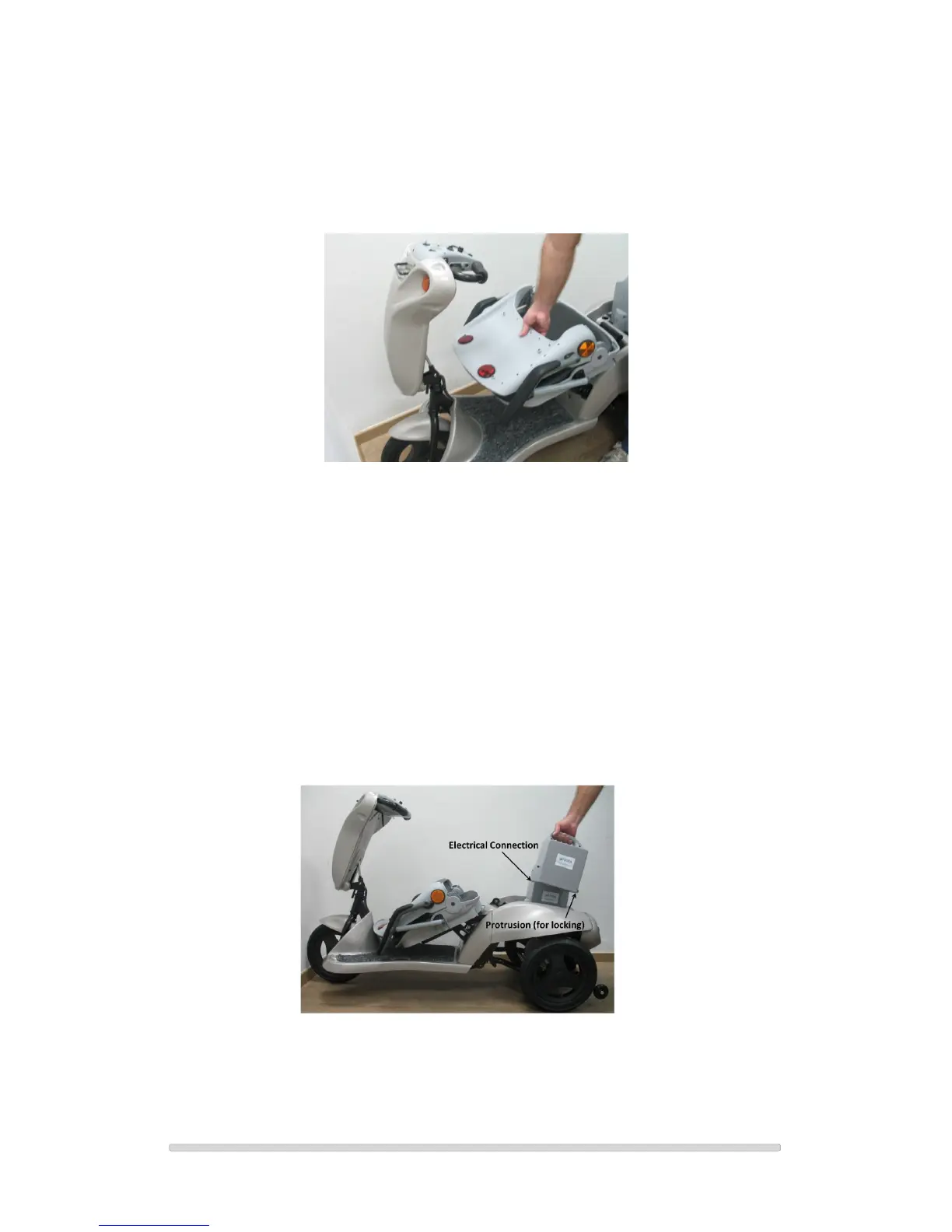

Installing the Seat
1. Raise the backrest to an upright position while pushing the handle
down.
2. Raise the seat until it reaches a locked position. (See Fig. 6).
Figure 6
Installing the batteries
1. Take the batteries out of the box.
2. Place the battery into the rear area with the protruding part towards
rear. (See Fig. 7).
3. Then, connect the side with the electrical connection.
Figure 7
The batteries are partially charged. We recommend charging them
fully prior to usage.
Note
:

Tzora Titan Specifications

General

Weight Capacity	120 kg
Travel Range	40 km
Dimensions	1200 x 600 x 1200 mm
Range	40 km
Max Load	120 kg
