U-Line Echelon Wine Captain 2075WC User Manual

5. Remove existing bottom hinge (3 screws) and remount on oppo-
site side TOP. Remove top hinge screw pin.

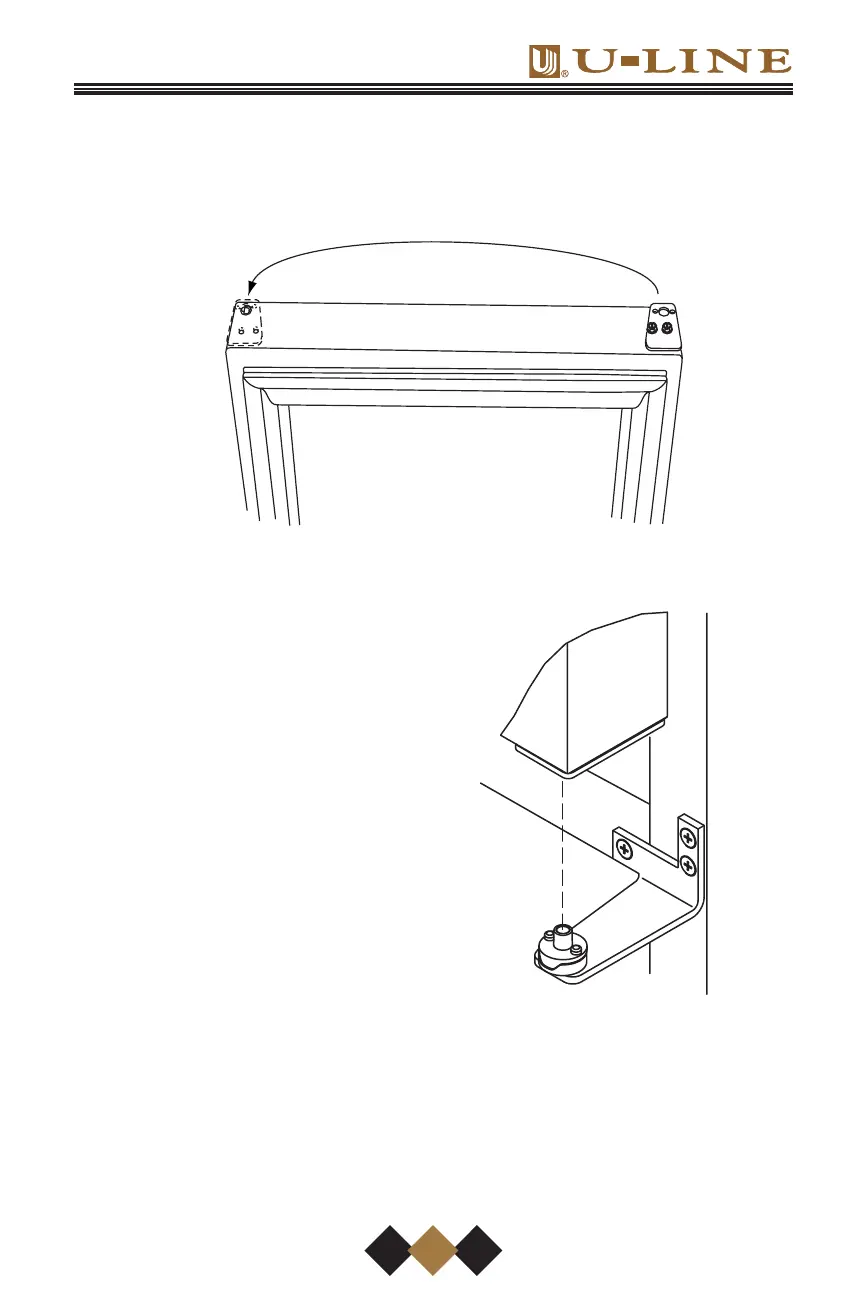

6. With bottom of door facing up, remove pivot plate (2 screws), flip
over, and remount on opposite side of door (see Figure 10).
Figure 10
7. Holding door upright with top of
door tilted forward, place hole of
door pivot plate on bottom hinge
screw pin (see Figure 11).
8. Tilt top of door into position in top
hinge and install top hinge screw
pin.
9. Install plastic screw plugs
removed in Step 2 in existing hinge
holes (3 each, top and bottom).
Figure 11
UL312A
UL319
15
30_10008_E_WC_UM 4/25/02 8:43 AM Page 15
