CONDENSER CLEANING - EVERY 3 MONTHS
Disconnect electric power to the unit before
cleaning the condenser.
To remove and replace the grille for access to the condenser fins
follow this procedure:

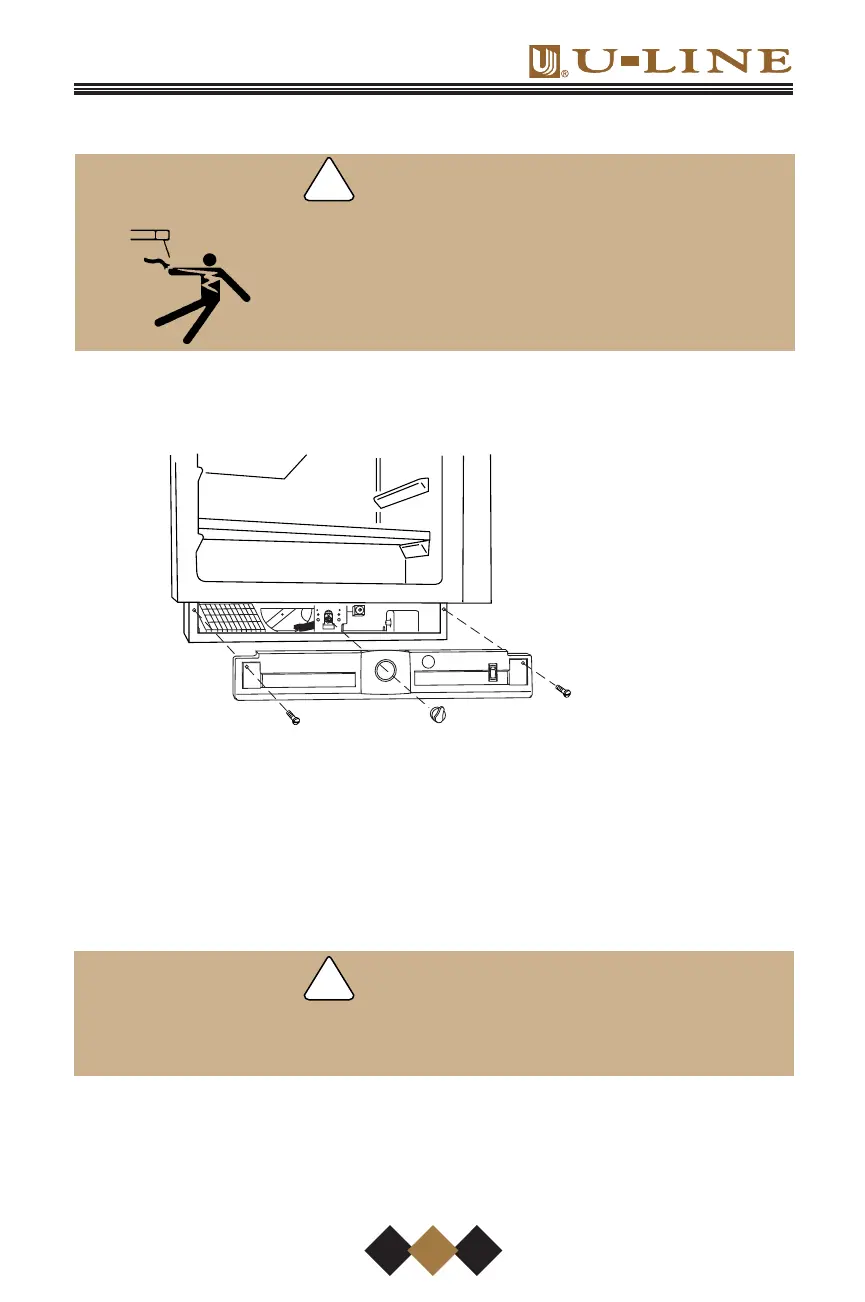

Figure 18
1. Remove the control knob by grasping the knob and pulling straight
off (see Figure 18).
2. Remove the screws at each end of the grille.
3. Remove the grille.
DO NOT touch the condenser fins. The condenser fins are
SHARP and can be easily damaged.
4. Clean the condenser coil using a brush or vacuum cleaner. Do not
touch.
5. Position the grille to align the screw holes with the cabinet.
