U-Line U2224DWRINT00A Install Guide

Prepare Site 3
4 Prepare Site
Your U-Line product has been designed for either free-standing or
built-in installation. When built-in, your unit does not require
additional air space for top, sides, or rear. However, the front grille
must NOT be obstructed and clearance is required for an
electrical connection in the rear.
IMPORTANTIMPORTANT
• Unit can NOT be installed behind a closed cabinet door.
Electrical Specifications
WARNING
SHOCK HAZARD — Electrical Grounding Required.
• Never remove the round grounding prong from the
plug and never use a two-prong grounding adapter.
• Never use an extension cord to connect power to the
unit.
IMPORTANTIMPORTANT
Electrical installation must observe all state and local
codes. This unit requires connection to a grounded (three-
prong), polarized receptacle that has been placed by a
qualified electrician.
The unit requires a grounded and polarized 115 VAC, 60 Hz, 15A
power supply (normal household current). An individual, properly
grounded branch circuit or circuit breaker is recommended. GFCI
(ground fault circuit interrupter) is usually not required for fixed
location appliances and is not recommended for your unit because
a GFCI could be prone to nuisance tripping. However, be sure to
consult your local codes.
See below for recommended receptacle location

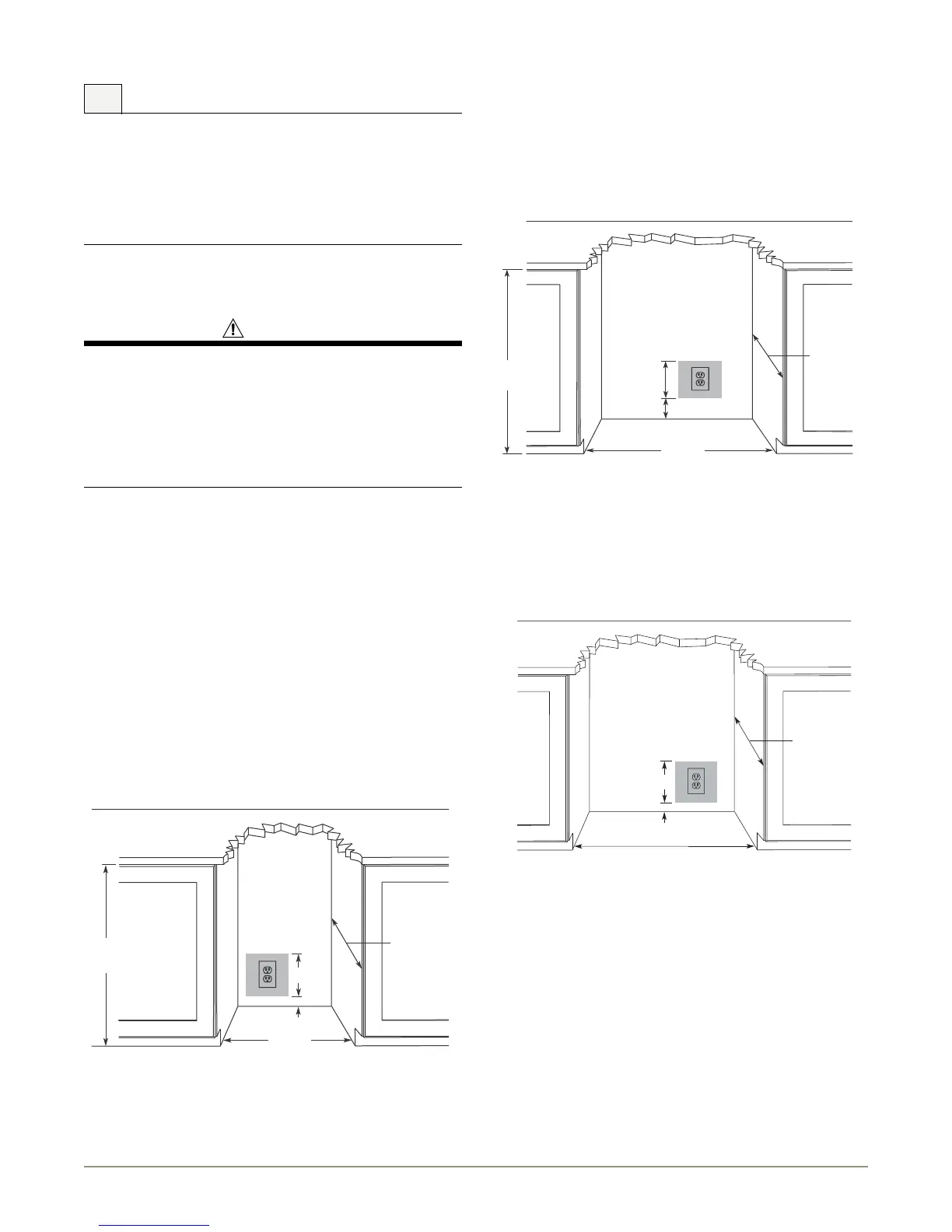

Cut-Out Dimensions
2115 Series
Follow the cut-out drawing. The 15-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
24”
1-1/2"
15-1/4"
7"
34-1/8"
to
35"
2175 Series
Follow the cut-out drawing The 24-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
2275 Series
Follow the cut-out drawing The 24-1/4" width allows 1/4" for ease
in installation and removal of the unit. 24" is the cabinet depth in
most installations.
24"
1-1/2”
24-1/4”
7”
4"
7"
24"
24-1/4"
34-1/4"
to
35-1/8"

U-Line U2224DWRINT00A Specifications

General

Color	custom, custom panel ready
Total Capacity	4.9 cubic feet
Refrigerator Capacity	4.9 cubic feet
Defrost System	none
Smart Home	yes
Wi-Fi	wi-fi
Annual Energy Consumption	300 kilowatt hours
Voltage	115 volts
Current	1.2 amperes

Weight and Dimensions

Depth	23 7/16 inches
Height	33 11/16 inches
Width	23 5/8 inches
Net Weight	135 pounds
