USER GUIDE
Integrated Panel Dimensions 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

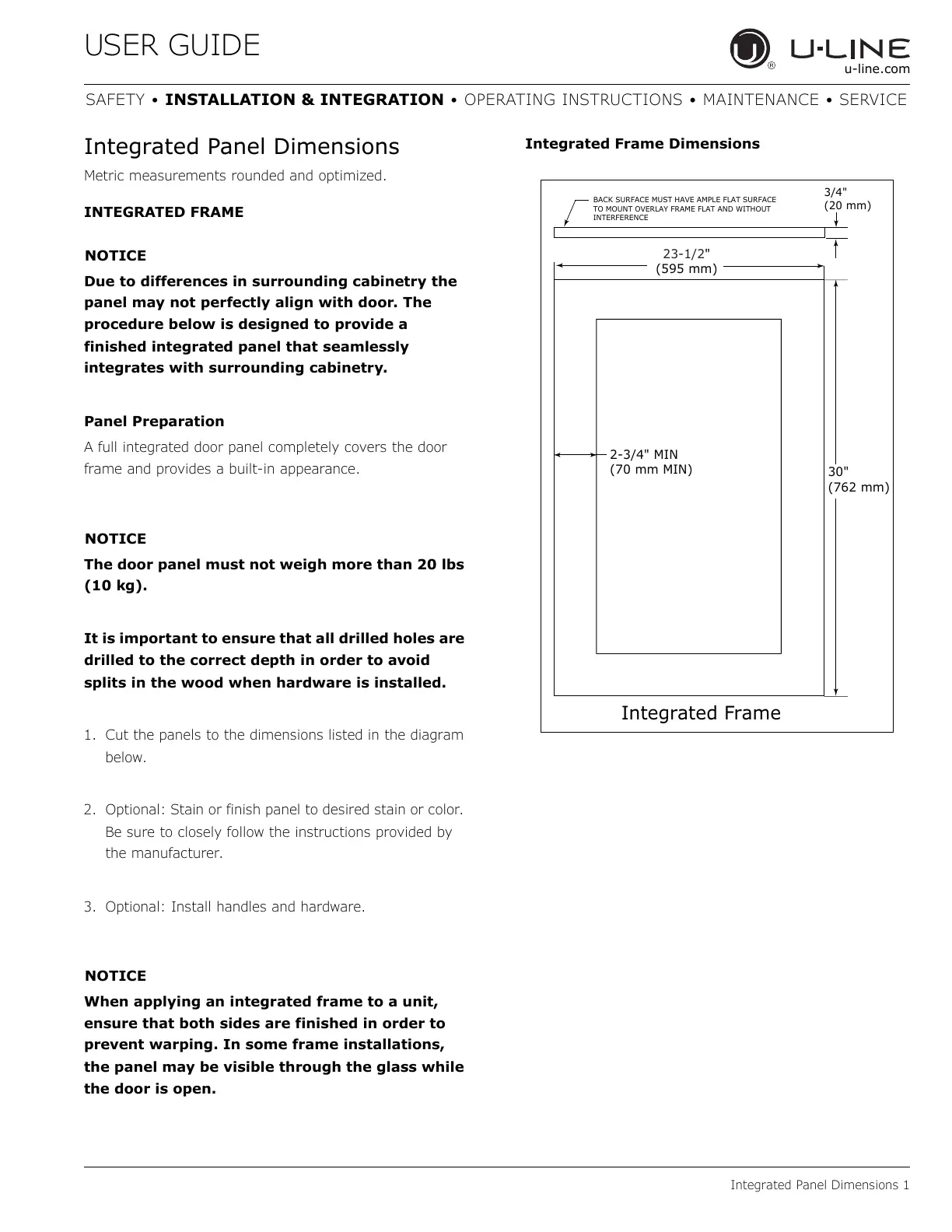

Integrated Panel Dimensions
Metric measurements rounded and optimized.
INTEGRATED FRAME
NOTICE
Due to differences in surrounding cabinetry the
panel may not perfectly align with door. The
procedure below is designed to provide a
finished integrated panel that seamlessly
integrates with surrounding cabinetry.
Panel Preparation
A full integrated door panel completely covers the door
frame and provides a built-in appearance.
NOTICE
The door panel must not weigh more than 20 lbs
(10 kg).
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid
splits in the wood when hardware is installed.
1. Cut the panels to the dimensions listed in the diagram
below.
2. Optional: Stain or finish panel to desired stain or color.
Be sure to closely follow the instructions provided by
the manufacturer.
3. Optional: Install handles and hardware.
NOTICE
When applying an integrated frame to a unit,
ensure that both sides are finished in order to
prevent warping. In some frame installations,
the panel may be visible through the glass while
the door is open.
Integrated Frame Dimensions
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY FRAME FLAT AND WITHOUT
INTERFERENCE
2-3/4" MIN
(70 mm MIN)
Integrated Frame
3/4"
(20 mm)
23-1/2"
(595 mm)
30"
(762 mm)
14

U-Line U2224DWRINT00A Specifications

General

Color	custom, custom panel ready
Total Capacity	4.9 cubic feet
Refrigerator Capacity	4.9 cubic feet
Defrost System	none
Smart Home	yes
Wi-Fi	wi-fi
Annual Energy Consumption	300 kilowatt hours
Voltage	115 volts
Current	1.2 amperes

Weight and Dimensions

Depth	23 7/16 inches
Height	33 11/16 inches
Width	23 5/8 inches
Net Weight	135 pounds
