USER GUIDE
u-line.com

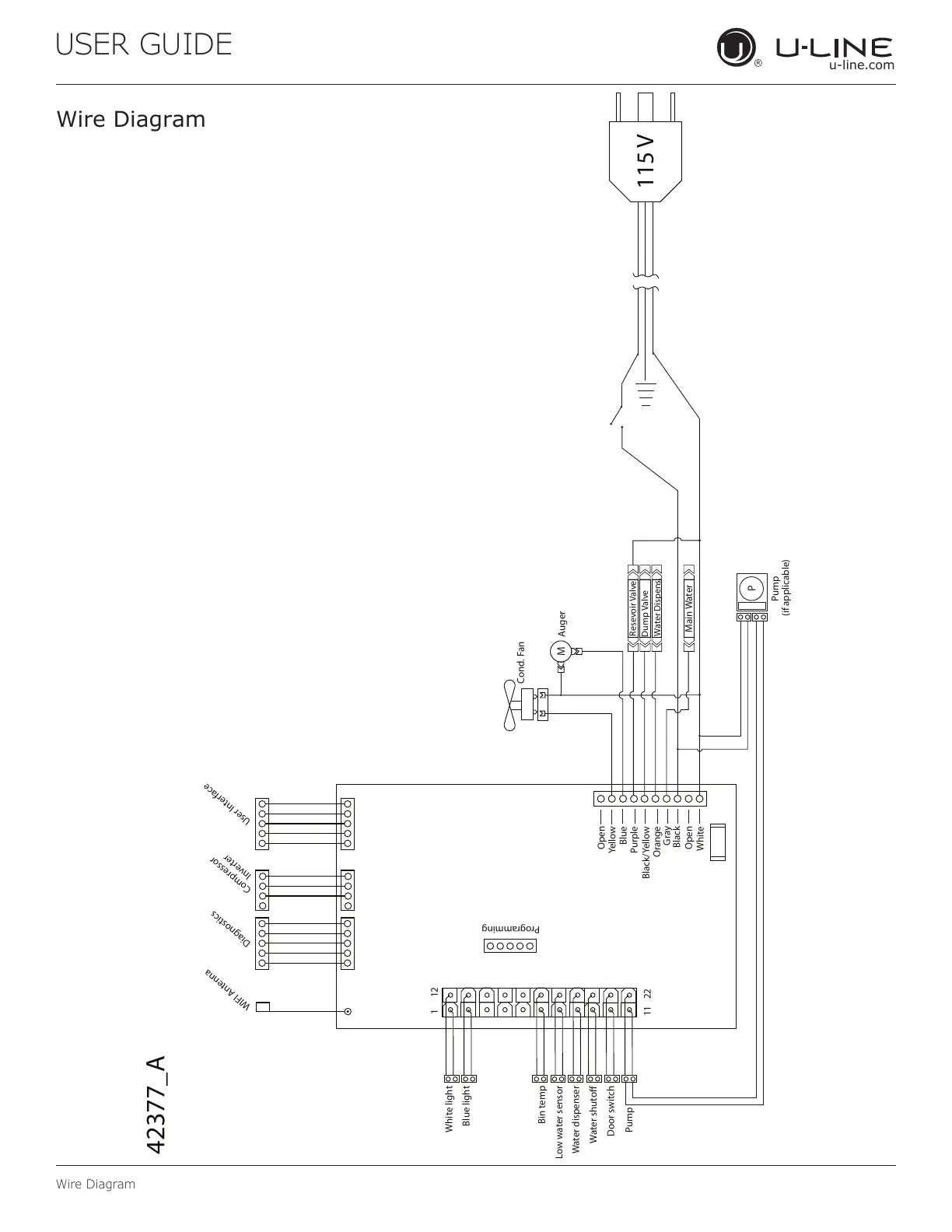

Wire Diagram
Wire Diagram
M
P
115 V
Blue
Yellow
Open
Purple
Black/Yellow
Orange
Black
White
Open
11 22
1 12
White light
Blue light
Bin temp
Door switch
Pump
Low water sensor
Water dispenser
Water shuto
Auger
Main Water
Water Dispens.
Dump Valve
Resevoir Valve
Cond. Fan
Gray
Programming
WIFI Antenna
Diagnostics
Compressor
Inverter
User Interface
42377_A
Pump
(if applicable)
32
