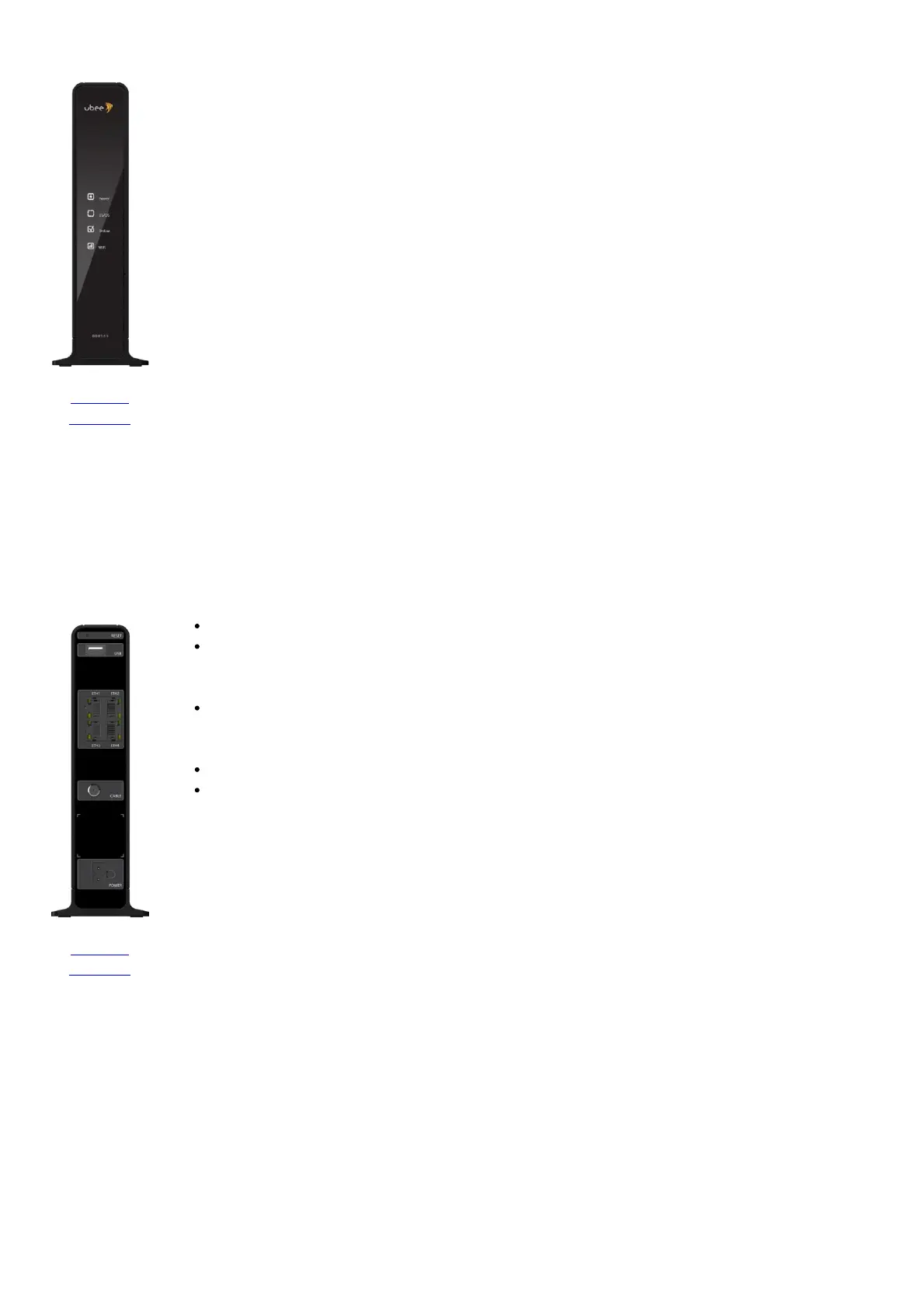

Front View
Click to
enlarge.
After the cable modem is successfully registered on the network, the POWER, DS/US, and ONLINE
indicators illuminate continuously to indicate that the cable modem is online and fully operational.
Back View
Click to
enlarge.
The Ubee DDW365 has the following ports available on the back of the WiFi modem.
USB – Connects to USB devices such as flash drives, hard disk drives, and printers.
ETH 1-4 (Gigabit Ethernet 1-4 also known as LAN 1-4) – Four 10/100/1000 auto-sensing RJ-
45 ports. Connect devices on your LAN (Local Area Network) such as a computer, hub or
switch to these ports. Only one port is active at a time.
RESET – Use a pointed object to push down the reset button for less than five seconds to
reset the device without losing personal setup. If you want to restore factory resets, push
down this button for more than five seconds.
CABLE – Connect your coaxial cable line to this port.
POWER – Connect the supplied power cord to this port.
