Page 16
Step 10
V
P
P
P
P
P
P
P
F
F1
G1
G
D
D1
×6

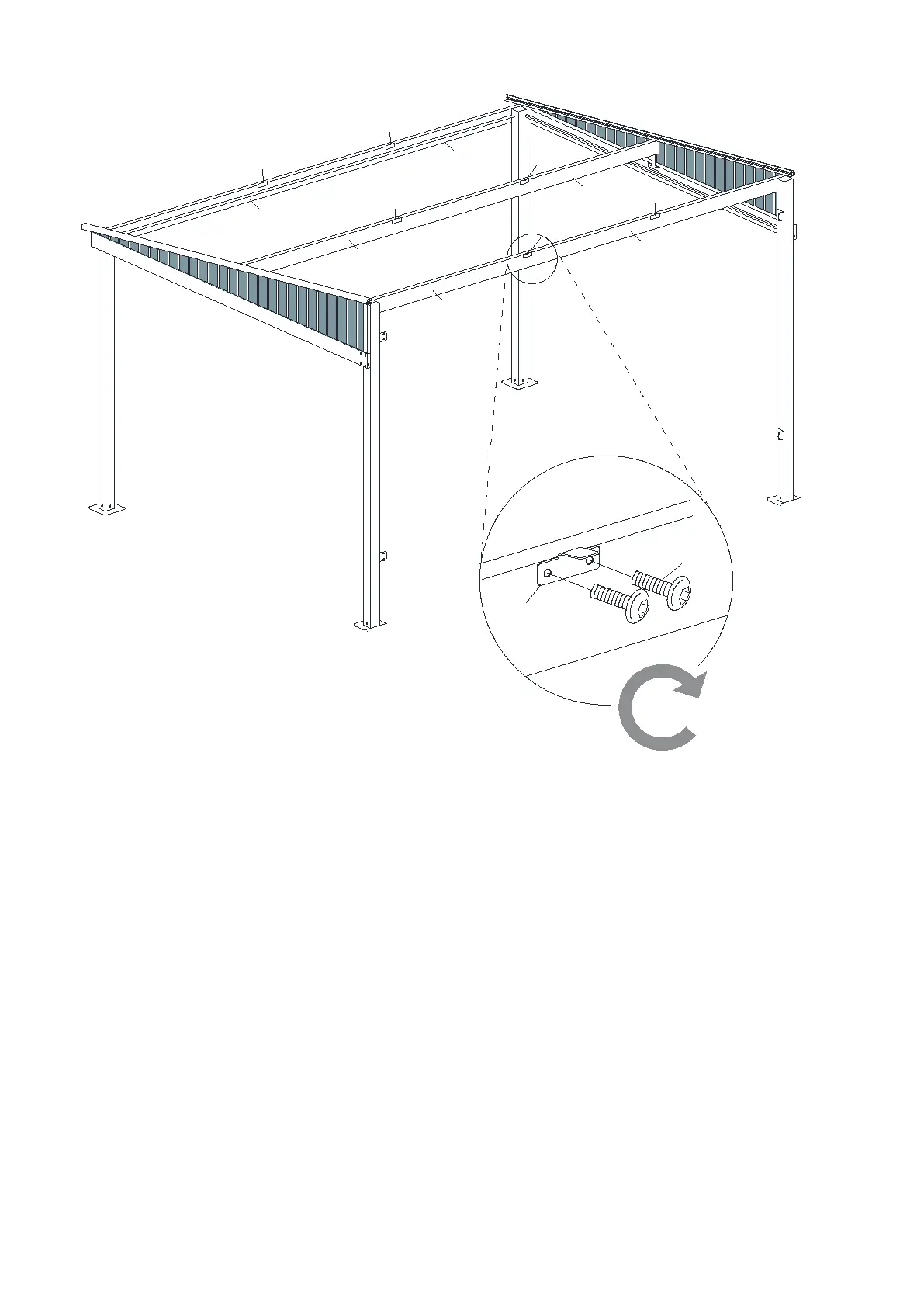

10.1 Attach the Connectors (P) to the assembled Lintels (D, D1, F, F1, G & G1) with Screws (V).
