Step 11
J2
F
F1
G1
G
D
J2
V
J2
J2
P
P
G/G1
D/D1/F/F1
V
×4
×2

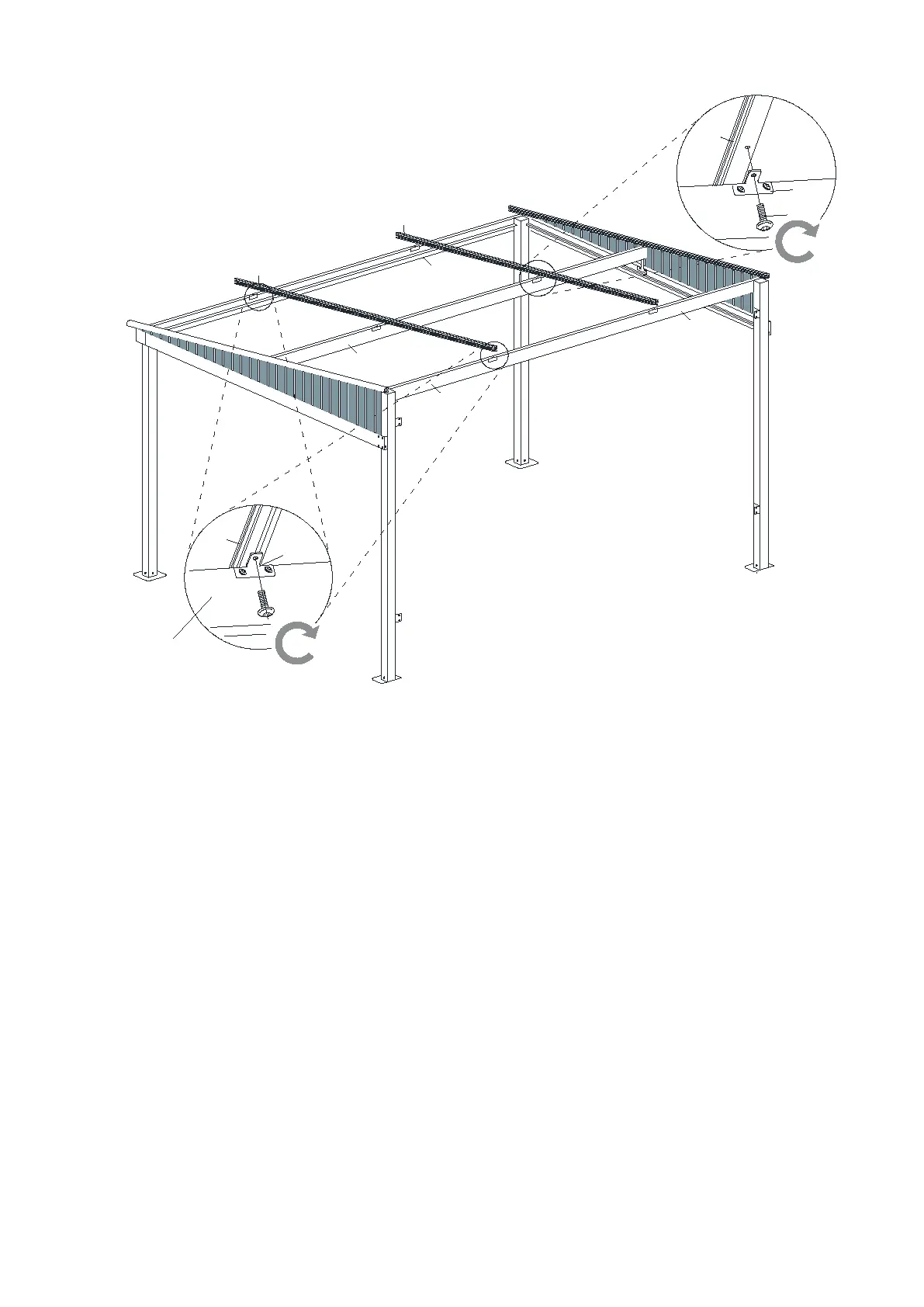

11.1. Attach the Roof Central Bars (J2) to the Lintels (G & G1) with Screws (V) in the holes of the
Connectors (P).
11.2. Attach the end of the Roof Central Bars (J2) to the Bars (D, D1, F & F1) with Screws (V) in the
holes of the Connectors (P).
