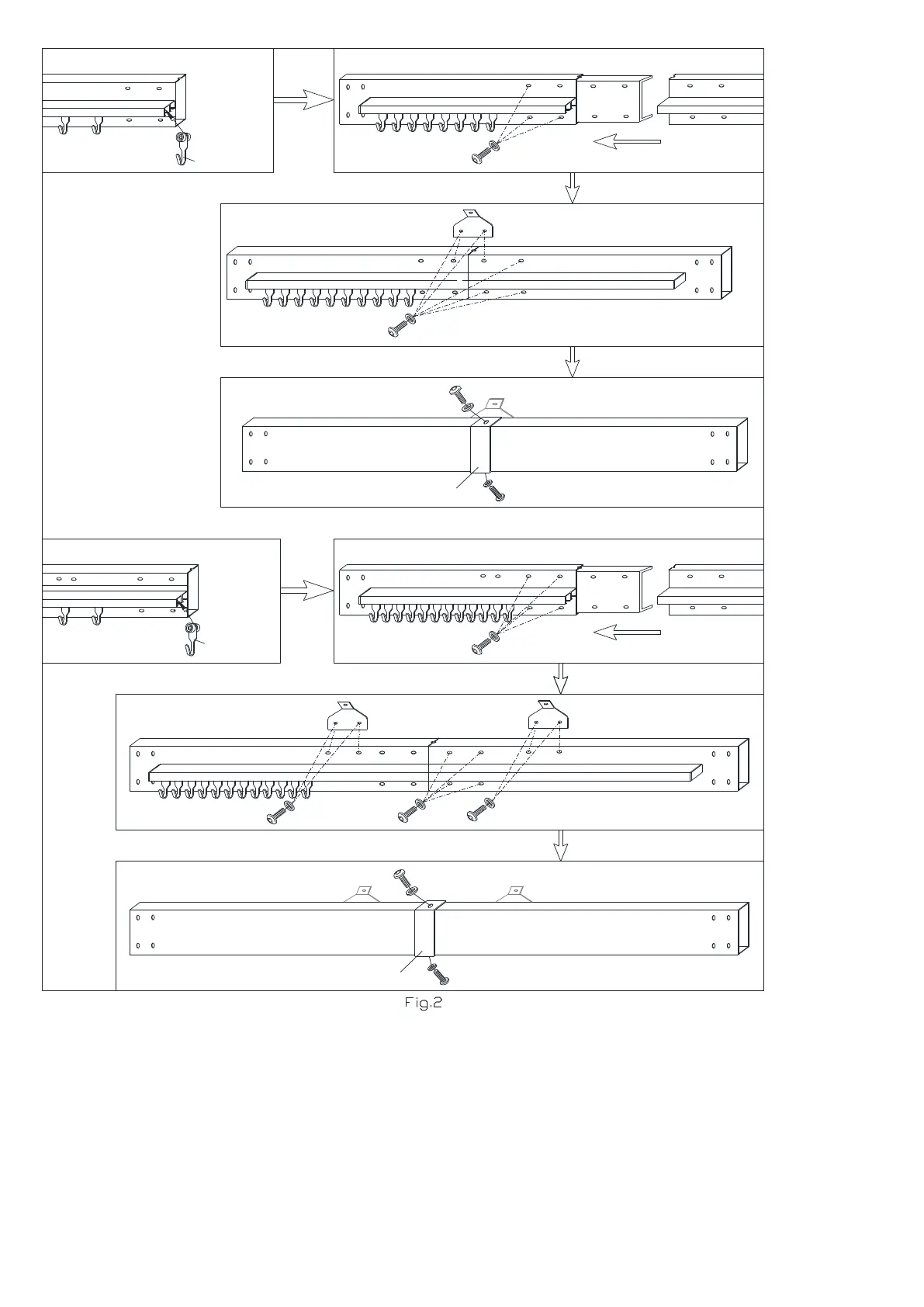

2. Insert Hanger (V) into the track of Short Right Lintel (E2). Attach Short Left Lintel (E1)
and Short Right Lintel (E2) to Connector (F) with Bolt (W1). At the same time, attach
Connection Piece (H) to Short Lintel (E1/E2) with Bolt (W1). Attach the Lintel Cover (R)
to Connector (F) with Bolt (W1). Insert Hanger (V) into the track of Long Right Lintel (E4).
Attach Long Left Lintel (E3) and Long Right Lintel (E4) to Connector (F) with Bolt (W1).
Attach Connection Piece (H) to Long Lintel (E3/E4) with Bolt (W1). Attach the Lintel
Cover(R) to Connector (F) with Bolt (W1). See Fig.2.
