Page 11
Step 5

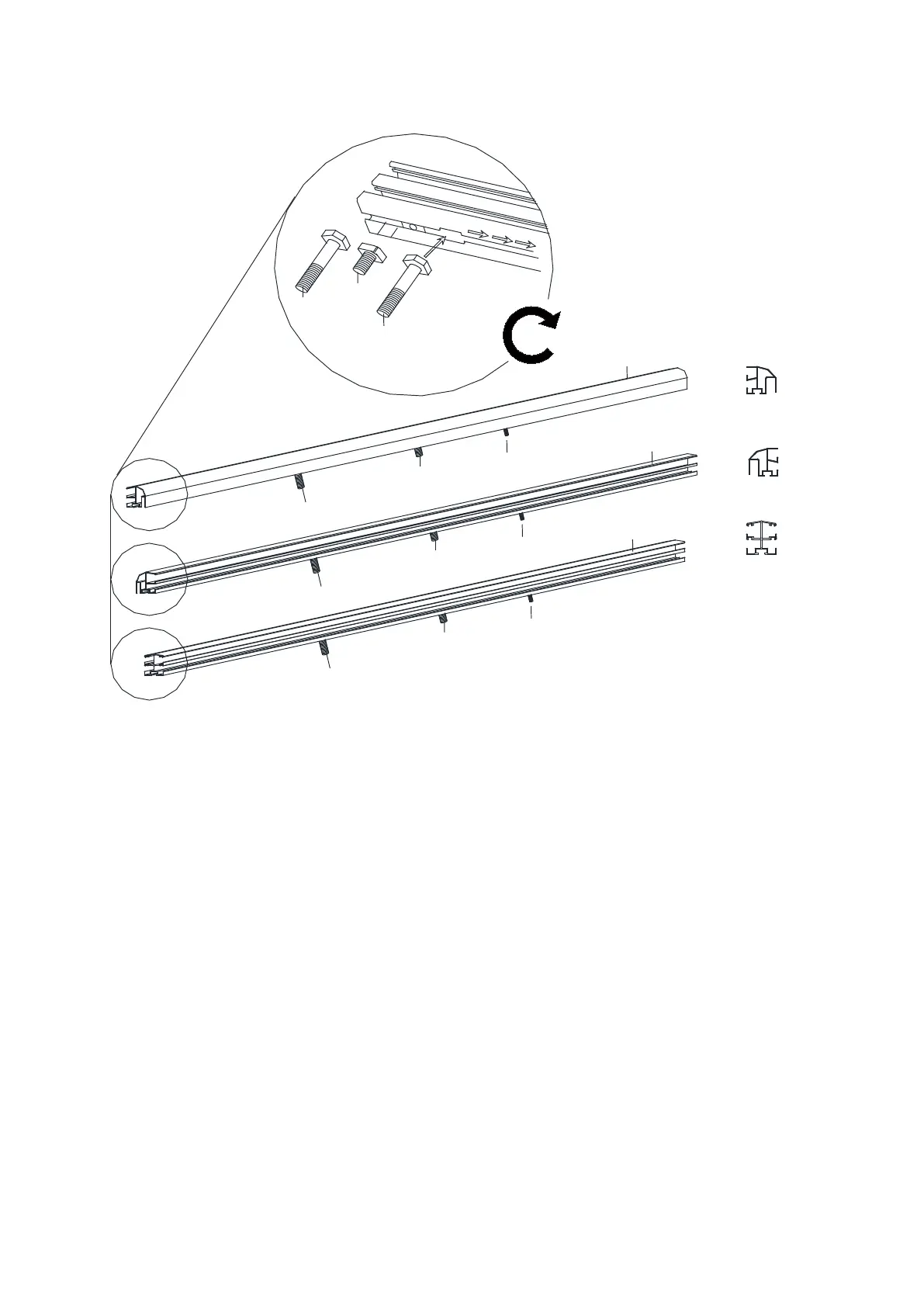

5. Insert the Screws (W1), (W2), (W1) into the grooves of each Roof Corner Bar (J & J1) and each
Roof Central Bar (J2).
X 5
W1
W1
W1
W1
W1
J1
J2
J
W1
W1
W2
W2
W2
W2
W1
