Step 6

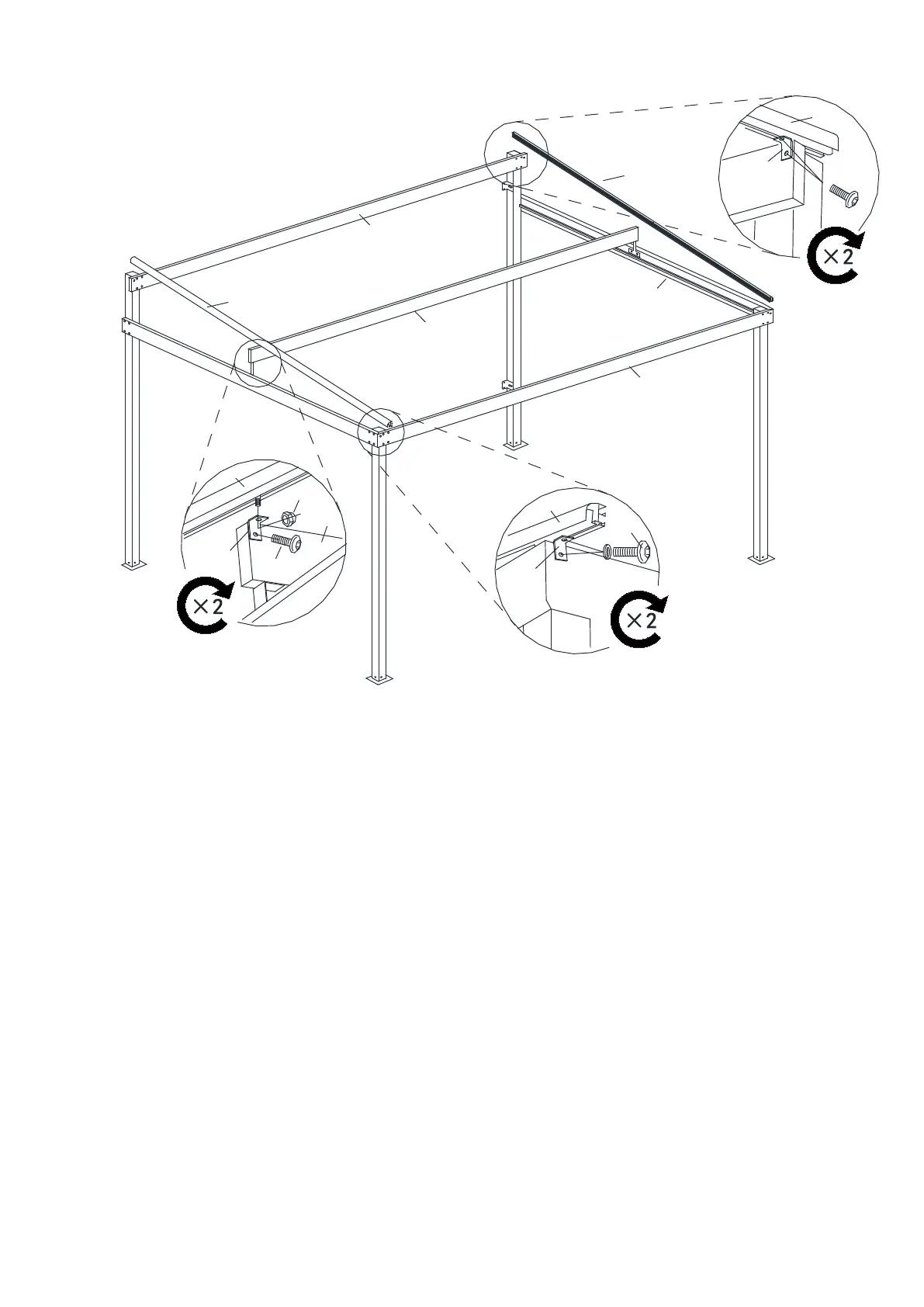

6.1. Attach a Connector (P1) to each end of the Lintel ( F) and (G) and to the end of the Rail (D) with
the Screws (V).
6.2. Put the Roof Holder Bars (J & J1) onto the Connectors (P1) which are installed at the ends of the
Lintel (G). Place Screws in the center of the Roof Holder Bars (J & J1) into the holes of the Connectors,
and fix them with Nuts (Y1).
6.3. Attach the Roof Holder Bars (J & J1) by passing Screws (V) through the holes on the top of
Connectors (P1).
NOTE:
The Long Screws (W1) previously inserted on the Roof Holder Bars (J & J1) will be used in
Step 10.
J1
C1
J1
P1
F
F
G
D
D
G
Y1
P1
P1
V
V
J
J
J
V
