Step 1
A
N1
U
A
V
N
B
V
N2
N2
B
A
N1
N1
A1
N1
U
N2
B
N1
N1
A1
N

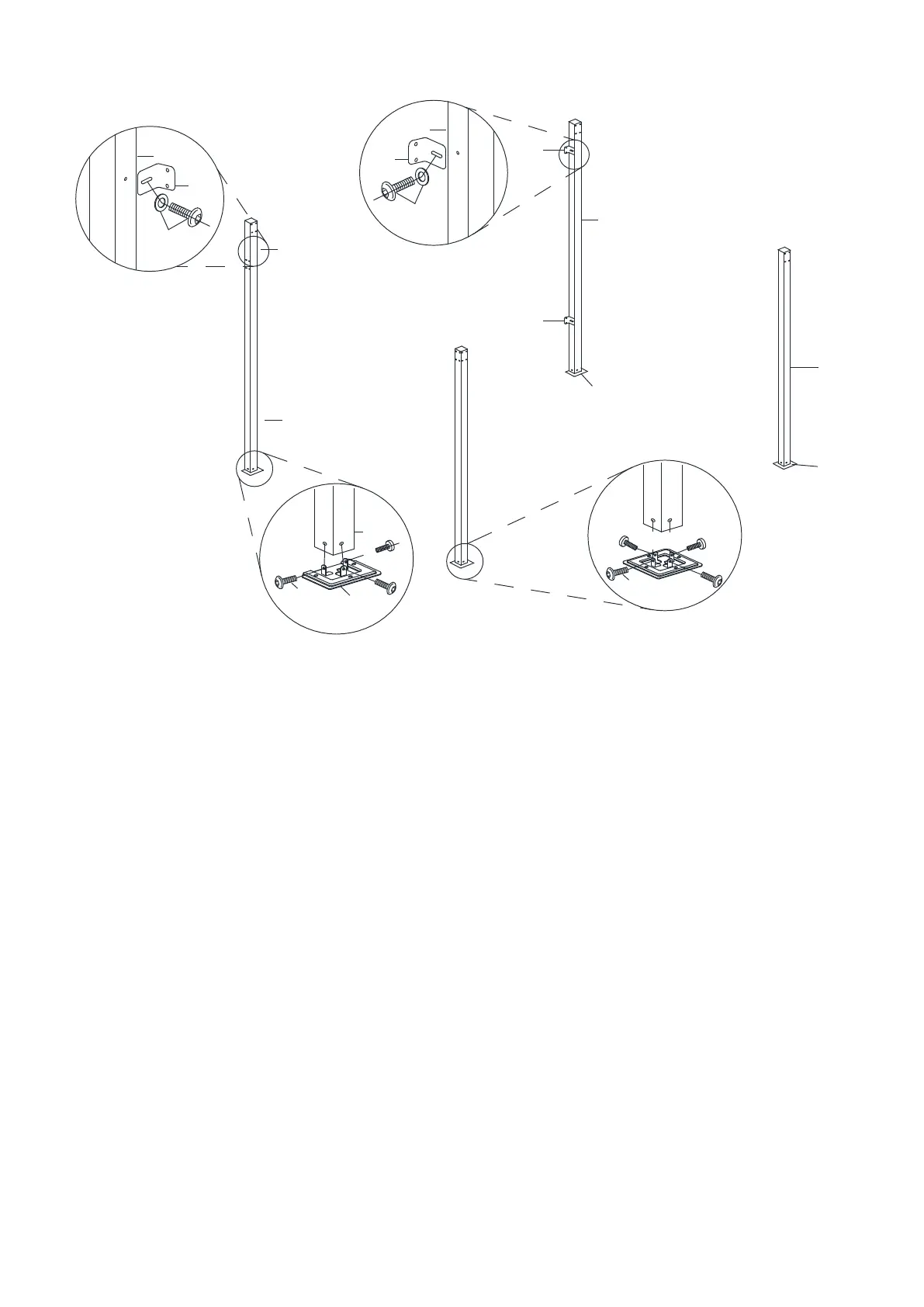

1.1. Attach the Connector (N1) onto the Post (A) and (A1) by using Screws (U).
1.2. Attach the Base Plate (N) to the bottom of the Post (A and A1) by using the Screws (V).
1.3. Attach the Base Plate (N2) to the bottom of the Post (B) by using the Screws (V).
NOTE:
Make sure the convex edge of the Base Plate (N) is facing the front of the Post, as shown in the
above drawing.
The bolts to fix the Anchor Bracket (N1) to the wall are
not provided and must be purchased
separately.
