Page 8
Step 2

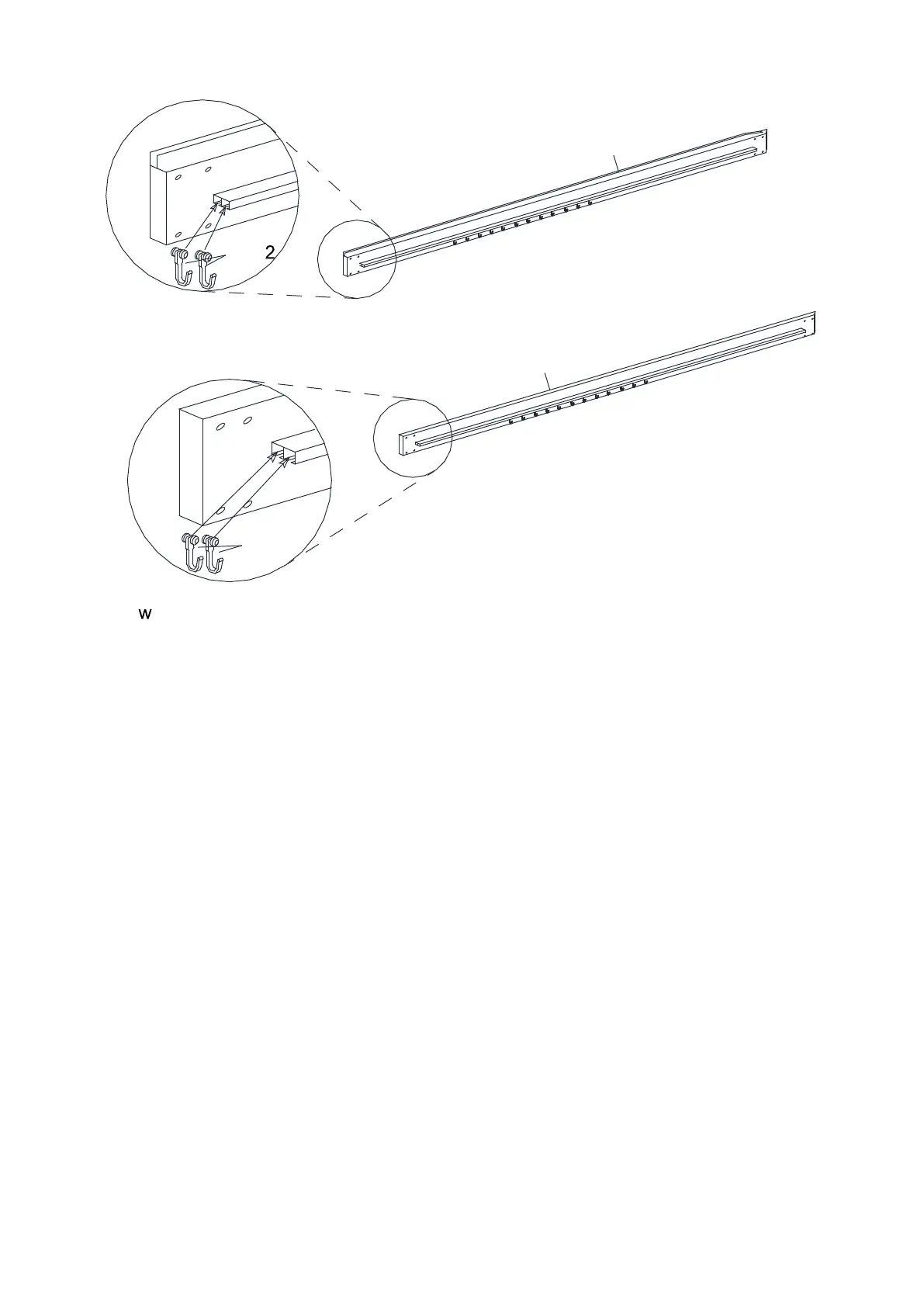

2.1. Insert t elve Hooks (R) into the Rail (C) and twelve Hooks (R) into the Rail (C1) by sliding
them into the appropriate location designed for the hooks.
2.2. Insert twelve hooks (R) into the Rail (D) by sliding them into the appropriate location designed for
the hooks.
NOTE:
Make sure the direction of the Hooks matches the above drawing.
The Shelter has two Rails: one for the Screen and one for the Curtains. The Hooks for the
Curtains must be placed on the internal Rail. The same number of Hooks must be used for the
Curtains and Screen.
C/C1
C/C1
D
R×12
R×1
D
To Next Page
