Uberhaus 72255162 - Step 6: Additional Roof Supports

Fig.26 Fig.27
Fig.26
Fig.27

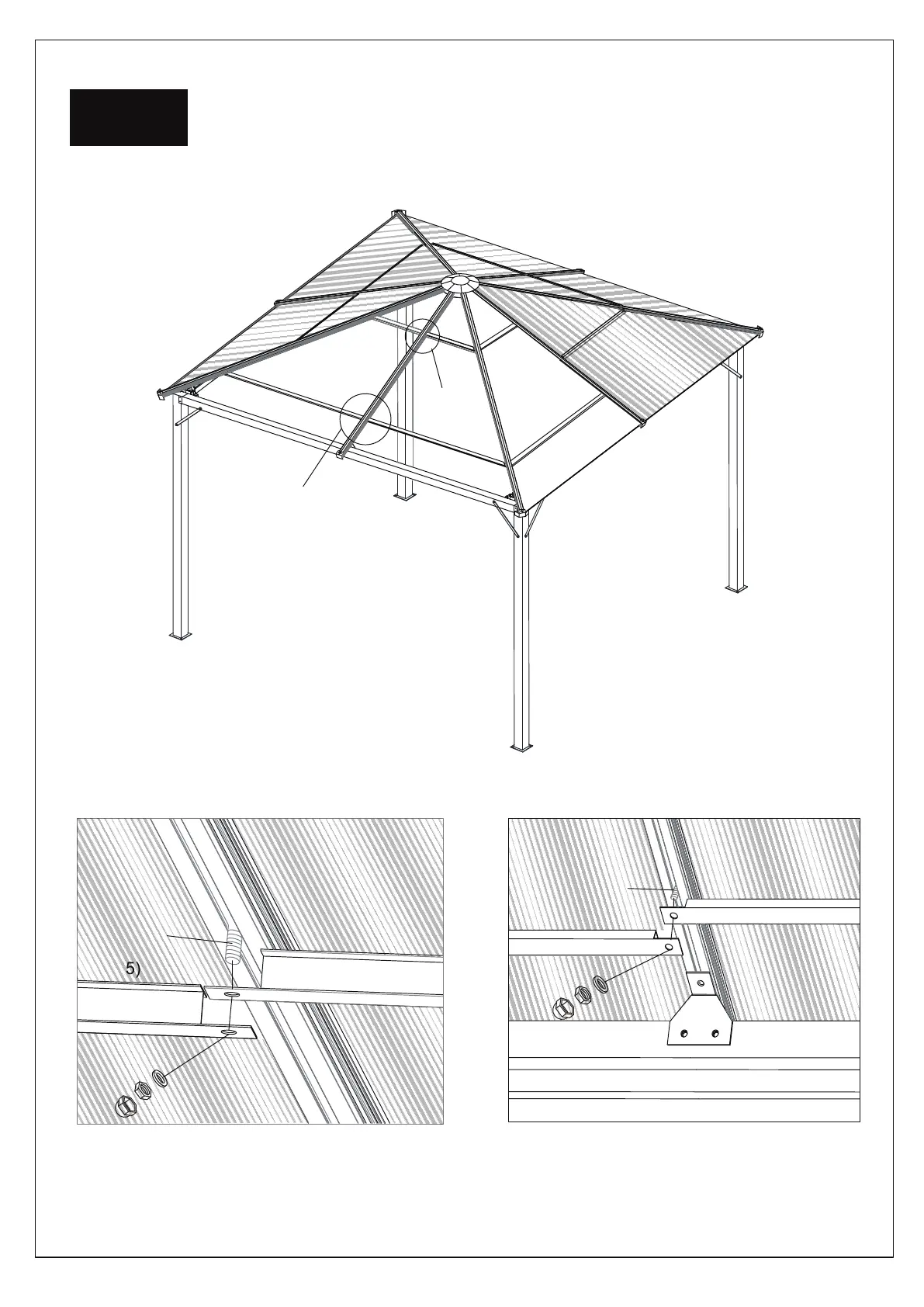

21. Attach #1 Left Supporting Tube (14) and #1 Right Supporting Tube (15) to Long Bar (3) and
Short Bar (4) with Bolt (34). Attach #3 Left Supporting Tube (18) and #3 Right Supporting Tube
(19) to Long Bar (3) and Short Bar (4) with Bolt (34).
See Fig.26 and Fig.27
(14)
(15)
(15)
(5a)
(34)
(34)
(34)
(34)
(19)
(18)
(4)
(4)
(3)
(3)
(5a)
(6)
(18)
(14)
(14)
(19)
(18)
(4)
Step 6:
Page 18
