Connecting the Rocket Titanium
Connecting the Rocket Titanium
The Rocket M Titanium can be used with a Dish or Sector Antenna.
The cable connections are the same for either antenna type.

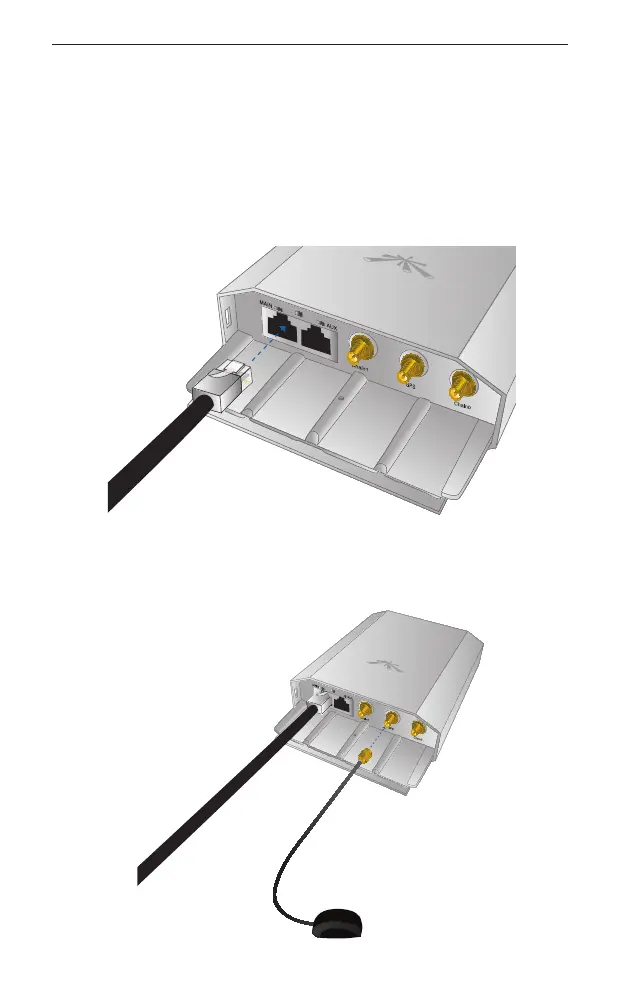

1. Press on both sides of the Removable Cover to slide it off.
2. Connect an Ethernet cable to the Primary Ethernet port on the
Rocket Titanium.
3. Connect the GPS Patch Antenna to the center SMA connector
on the Rocket Titanium.
