Second way,

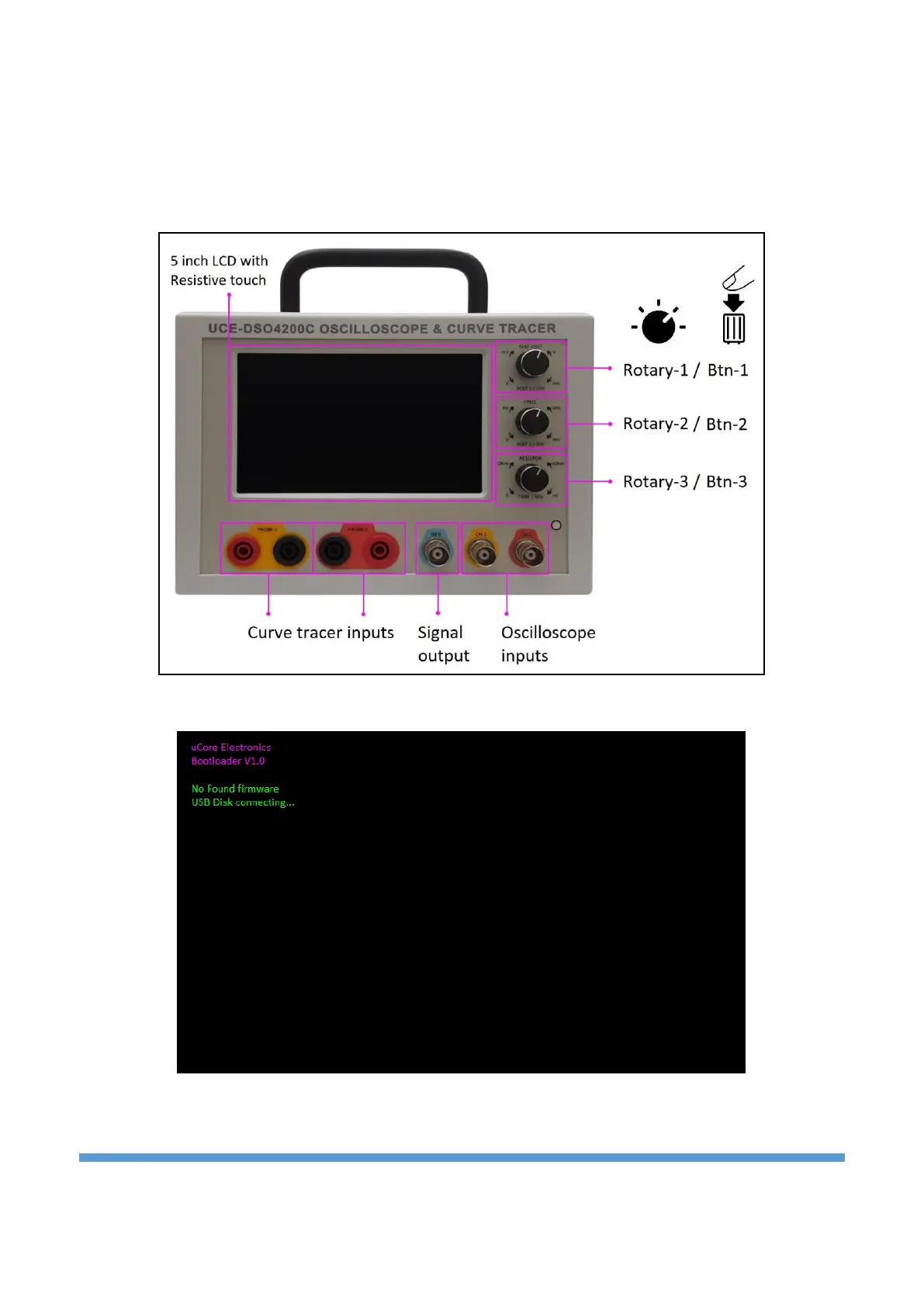

Connect UCE-DSO4200C to PC via USB Cable. Then, power up the Device while holding down
the Btn-1 button (Figure 3). Finally, release the Btn-1 button. When the device recognizes as USB
Disk, there will be a connection information on the screen (Figure 4) and it is listed in the ‘Devices
and drivers’ (Figure 2).
Figure 3.
Figure 4.
