Ude AX-309 - Input Configuration Jumper Settings

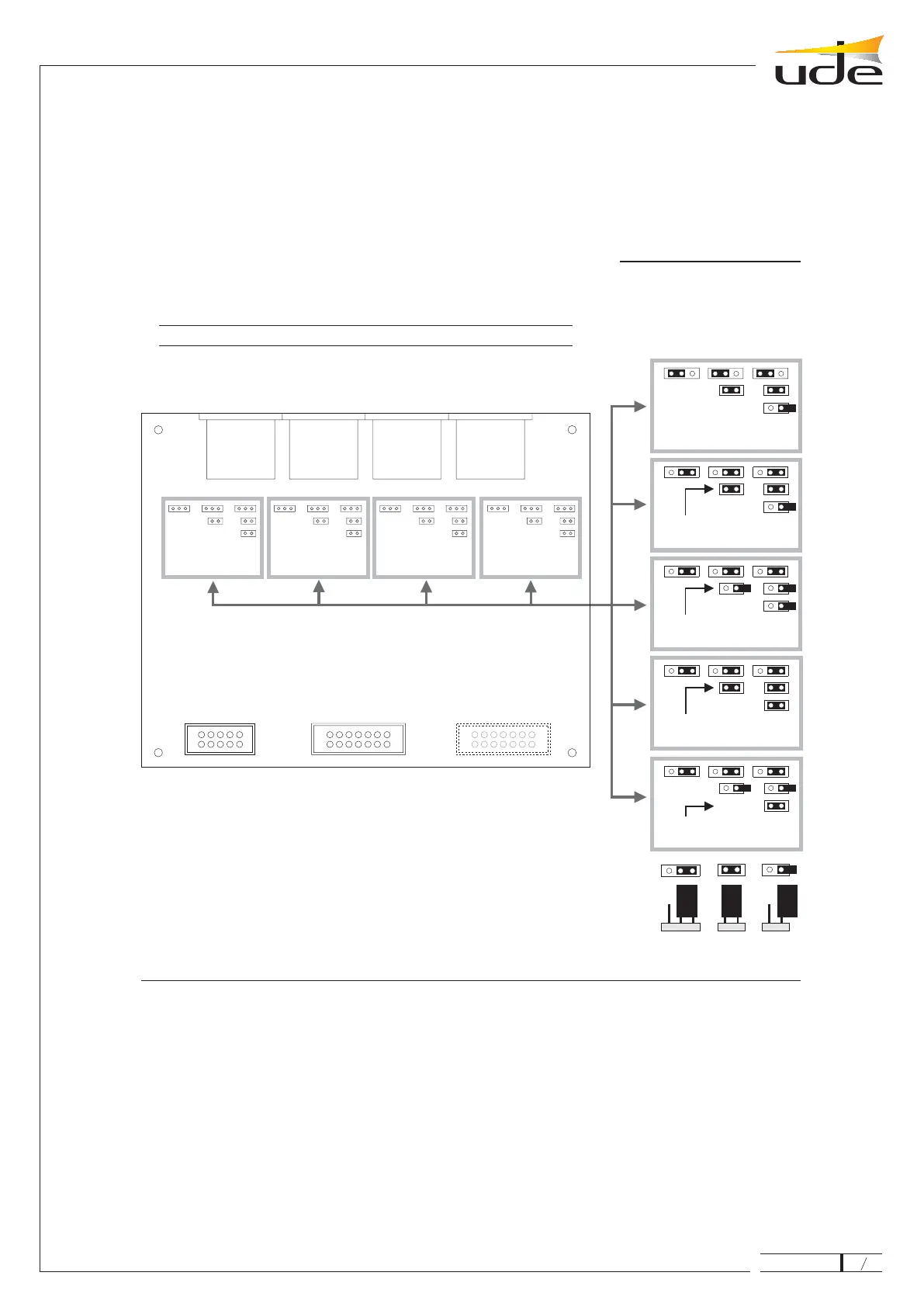

Configuration
INPUT 2
Configuration
INPUT 3
Configuration
INPUT 4
Configuration
INPUT 1
MIC
AUX 4
MIC
AUX 3
MIC
AUX 1
MIC
AUX 2
AUXILIARY
MUSIC
MICROPHONE
JUMPER
SETTINGS
VOICE MICROPHONE
PHANTOM POWER SUPPLY
VOICE
MICROPHONE
MUSIC MICROPHONE
PHANTOM POWER SUPPLY
Configuration of convertible inputs
REMOVE THE COVER AND SET THE JUMPERS AS FOLLOWS
NOTE:
The amplifier is factory-set as follows:
INPUTS 1, 2, 3 and 4 microphone with phantom power supply
and voice filter.
