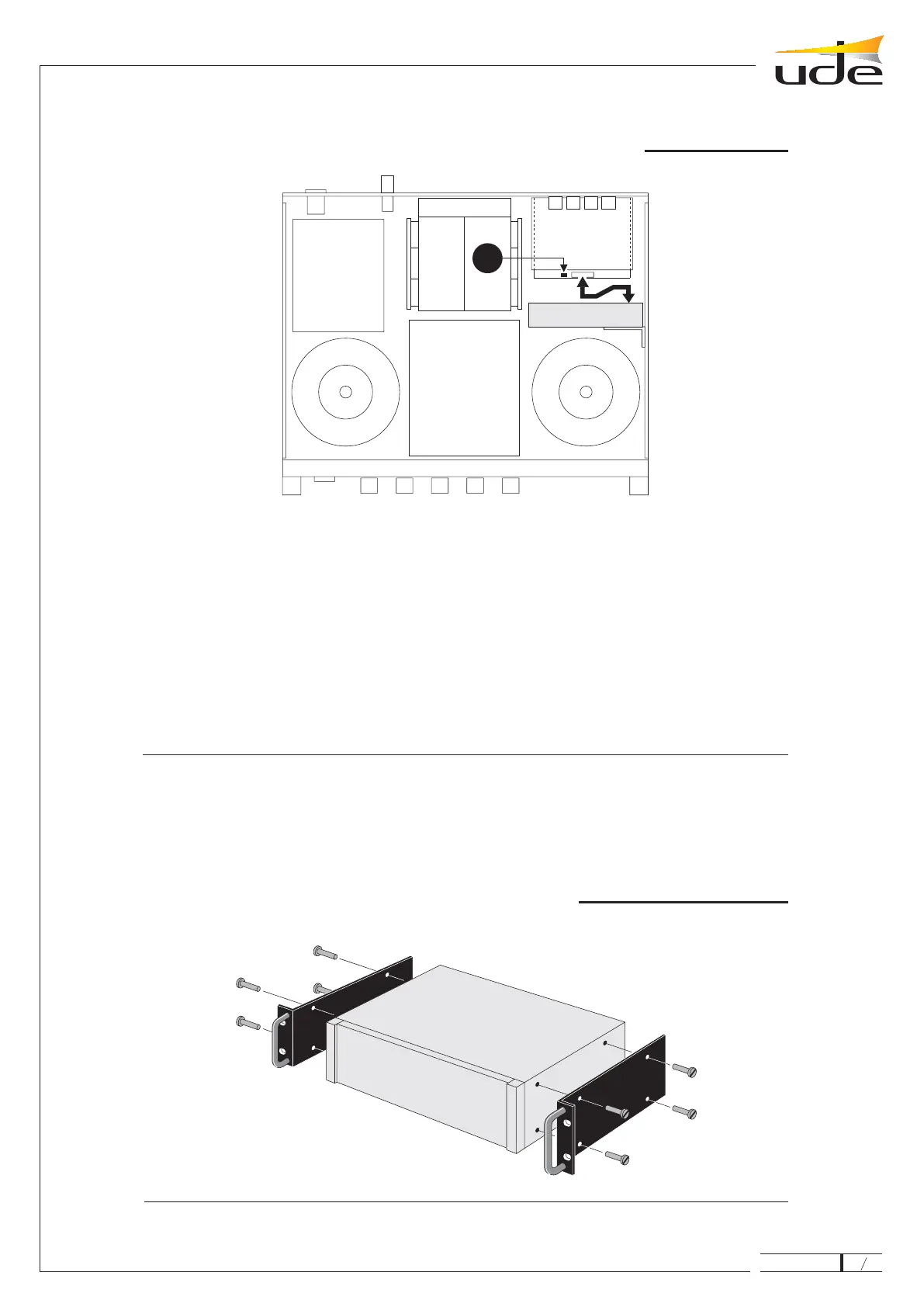

How to assemble the WX-19 module
NOTE: WX-19If you remove the module from the unit you must restore jumper (D)
to its relevant site.
WX-19
D
How to assemble the WX-3
handle / bracket mounting rack
1
2 WX-19
3 WX-19
4
5(D)
6
- Remove the top cover of the unit.
- Remove the bracket for the module.
- Assemble the module in the aforementioned bracket using the screws supplied.
- Fit the 6-lead connection as shown.
- Extract jumper . No special adjustment is needed.
- Fix the bracket in position. The unit is ready to operate.
AX-309
168
610.104A
