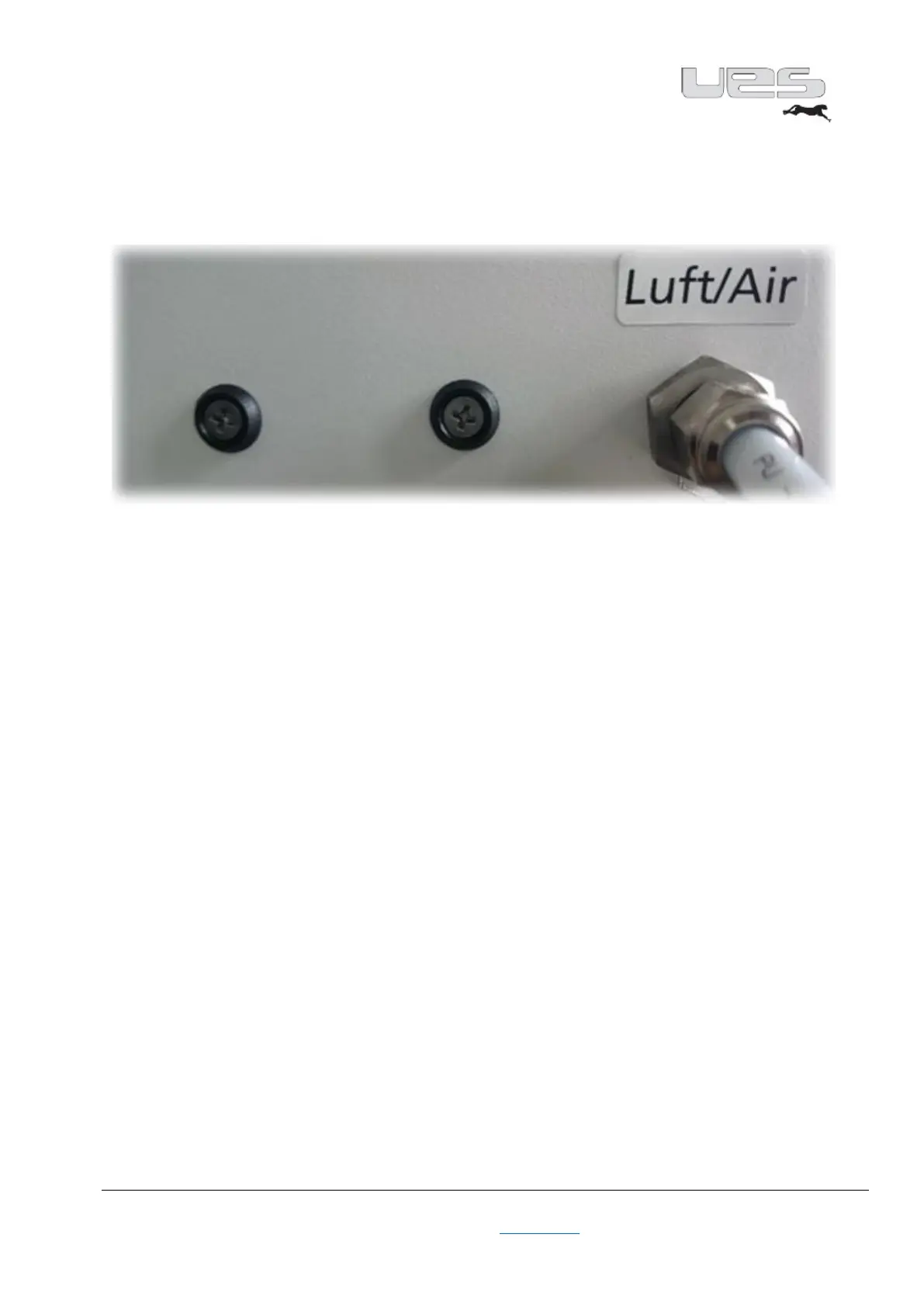

Air connection
Compressed air supply 6 bar (oil and anhydrous)
Connection via PK 8* 1.25 pneumatic hose.
Hose connection
Air connection
Hose connection
Hose connecting nipple (fittings)
The system is equipped with two glue nipples by the factory.
The corresponding electrical connections are labelled 1 & 2 accordingly.
To connect a hose, the end cap has to be placed under resistance with an SW 17 wrench.
The electrical connection is made by inserting the plug located on the hose into the socket located on the
system.
