19

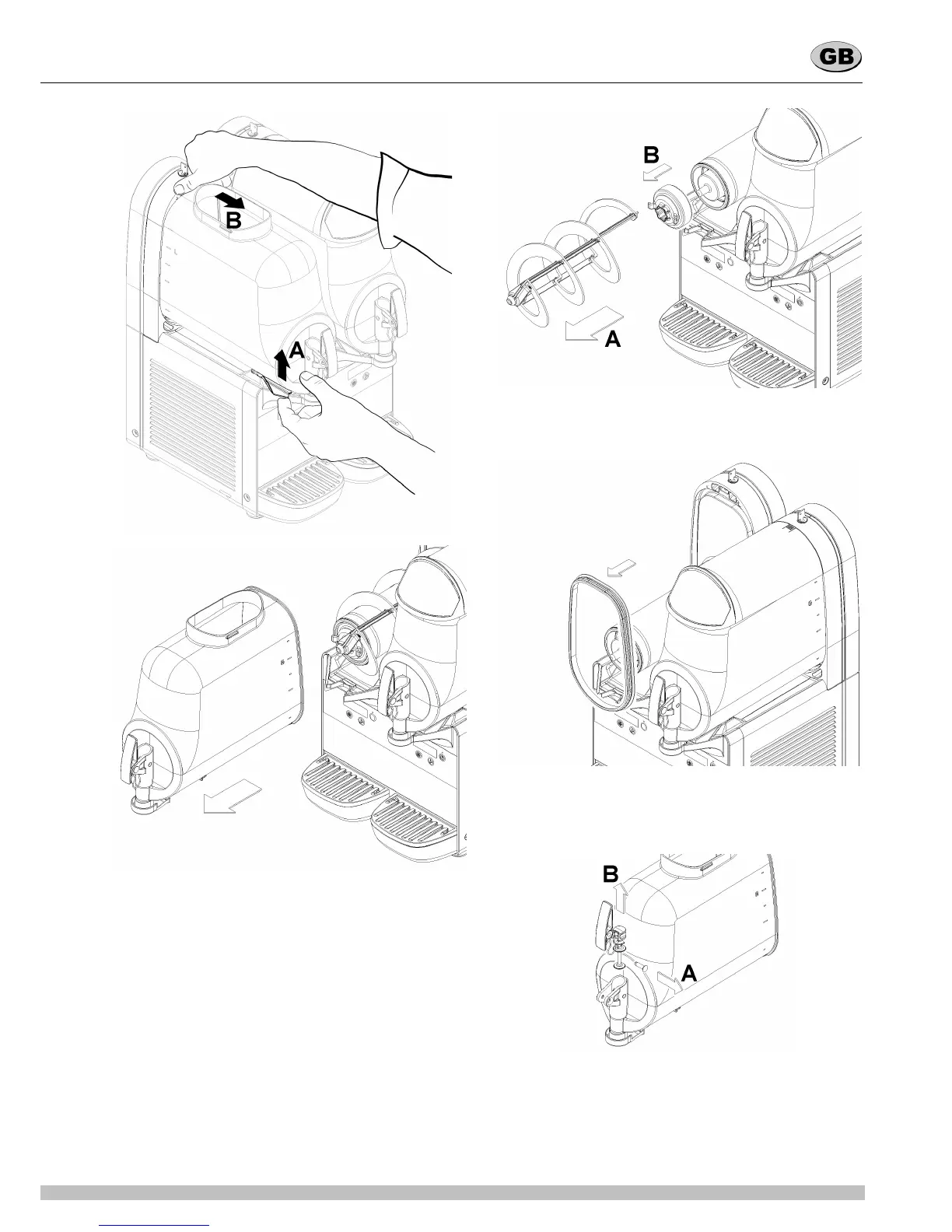

figure 7) and then remove the container itself (see figure 8).
figure 7
figure 8
3 Remove the mixer by sliding it out of the evaporator
cylinder. Then remove the hexagonal joint (see figure 9).
figure 9
4 Remove the gasket from its housing (see figure 10).
figure 10
5 Disassemble the tap by following the order given (see figure
11).
figure 11
6 Remove the drip tray and empty it.
7 Remove the flow restrictor from the container (see figure
