The UJK Parf Guide System (PGS) has been designed by Peter
Parfitt and developed jointly with Axminster Tools & Machinery
Ltd who manufacture the system under the UJK brand name.
The PGS provides a highly accurate, yet quick and easy method
of laying out a pattern of 20mm holes in a bench top or the
surface of a track saw cutting station. With a pair of UJK Super
Dogs and at least two UJK Guide Dogs or Pups you will be able
PGS Components
to make perfect right angle or 45 degree cuts with either a
guide rail and track saw or straight edge and circular saw.
The PGS also provides an easy way to create an Isometric
pattern of 20mm holes that then allows the user to make
perfect 30 degree and 60 degree cuts.

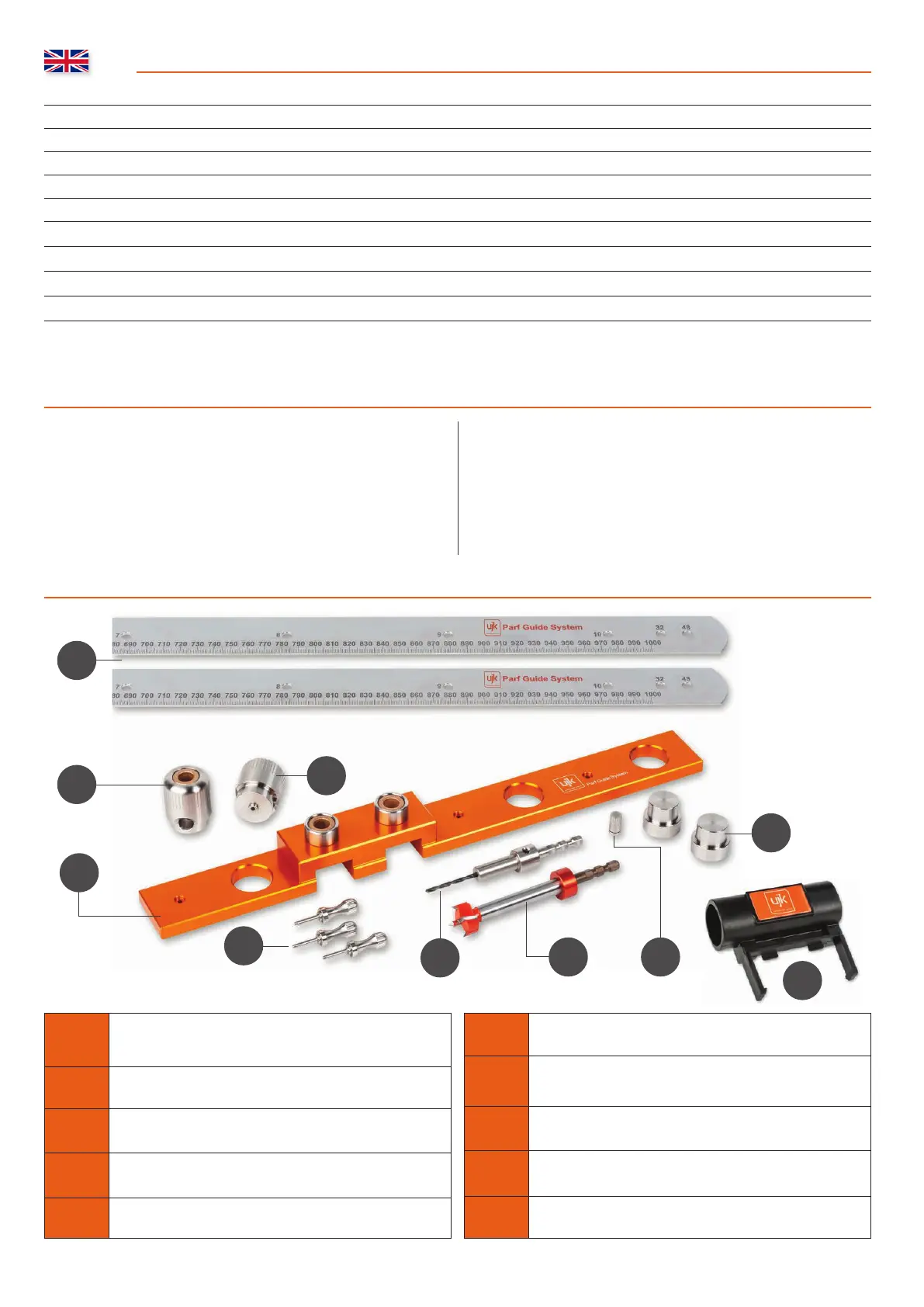

PGS IDENTIFICATION OF PARTS
Introduction 02
PGS Identification of Parts 02
The Concept 03
Using the 3mm Drill Guides 03
Using the 3mm Pins 03
Initial Pattern of 3mm Holes 04
Completing the Pattern of 3mm Holes 05-06
Creating Offset Holes 07-08
Enlarging the 3mm Holes to 20mm 09
Useful Tips 10
A
Pair of Parf Sticks; 1m long with metric ruler
graduations and a series of 6mm holes
B
Bearing guided 3mm Drill Guide; short spigot
C
20mm Guide Block
D
Bearing guided 3mm Drill Guide; long spigot
E
Set of 3mm Guide Pins
F
3mm Drill Holder with 3mm drill
G
Special D/G 20mm TCT drill with hex shank
and 3mm centre guide spike with stop collar
H
Joining Screw for fixing Parf Sticks together
I
Parf Locator Dogs
J
UJK Parf Dust Port
Figure 1
I
G H
F
D
E
C
B
A
J
