-2- USE INSTRUCTIONS TFS 100
8/38

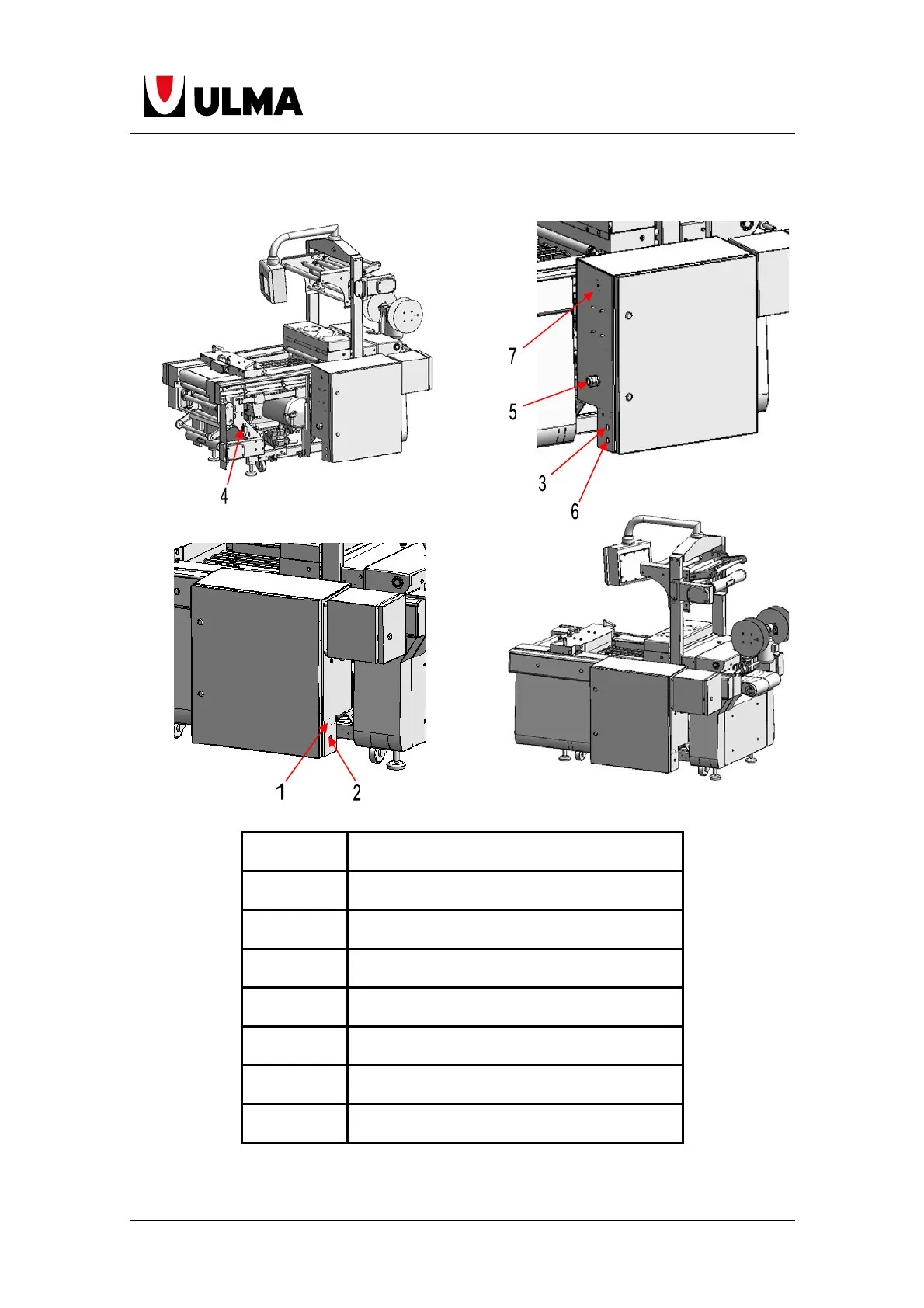

3.2 INSTALLATION SCHEME
Cabinet backside view
NUMBER DENOMINATION
1 Vacuum pump tray connector
2 Gas inlet (option)
3 Cooling water outlet
4 Water outlet push button
5 Electrical connection
6 Cooling water inlet
7 Main switch
