-3- SCREEN PP45
10/29

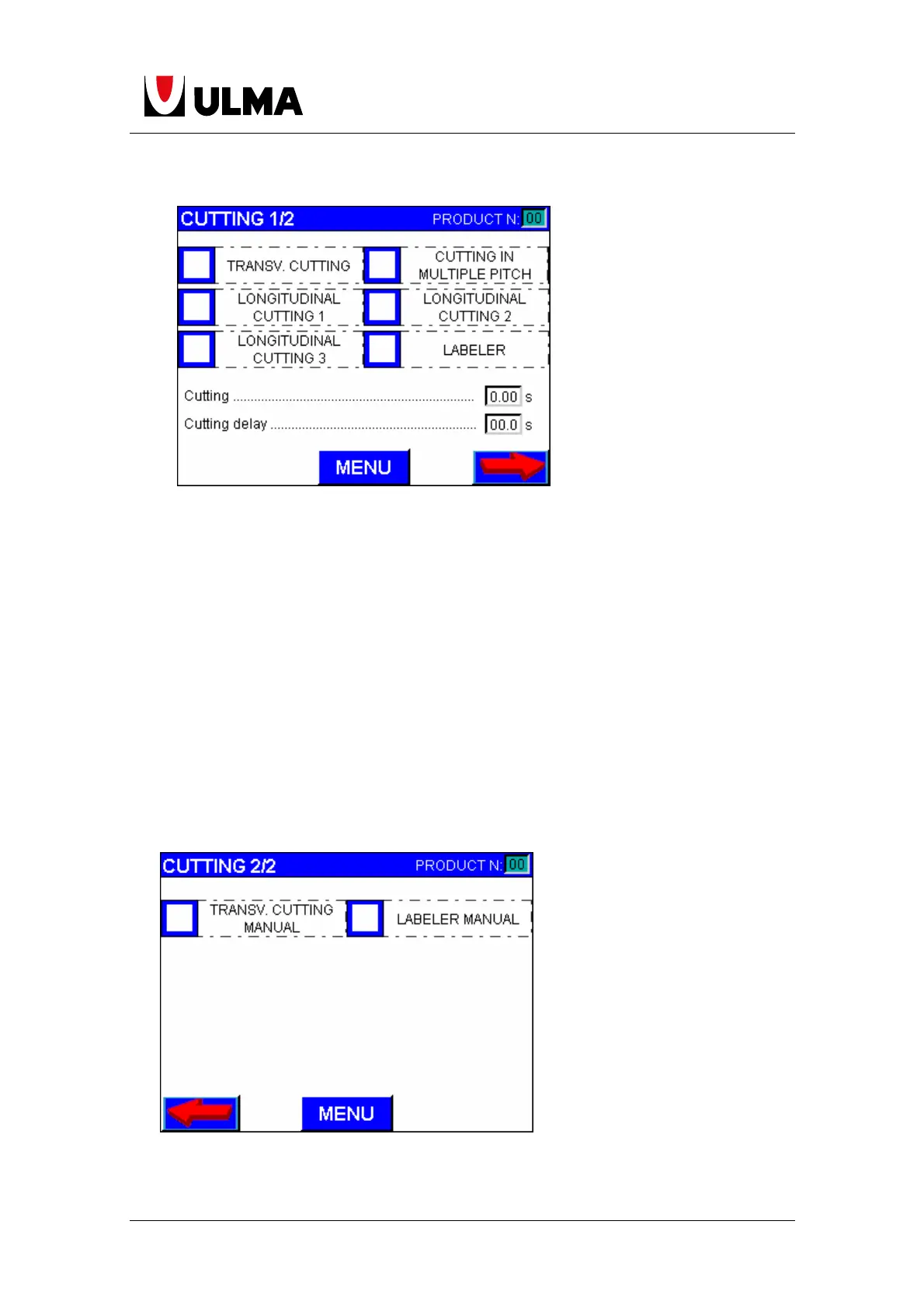

1.6 CUTTING
Depending on the configuration of the machine, some of the following
parameters may not be changed or displayed.
Transversal cutting: Transversal cutting activation.
Transversal cutting in multiple pitch: Activates transversal cutting with multiple
advance.
Longitudinal cutting 1: First longitudinal cutting activation.
Longitudinal cutting 2: Second longitudinal cutting activation.
Longitudinal cutting 3: Third longitudinal cutting activation.
Cutting: Time of package cross cutting.
Cutting delay: Delay time from the end of the advance until cutting is made.
Labeler: Labeler activation (only if the machine has the labeler option).
Transversal cutting manual. Activates the transversal cutting manually.
Labeller manual. Activates the labeller manually (only if it has labeller option).
