3

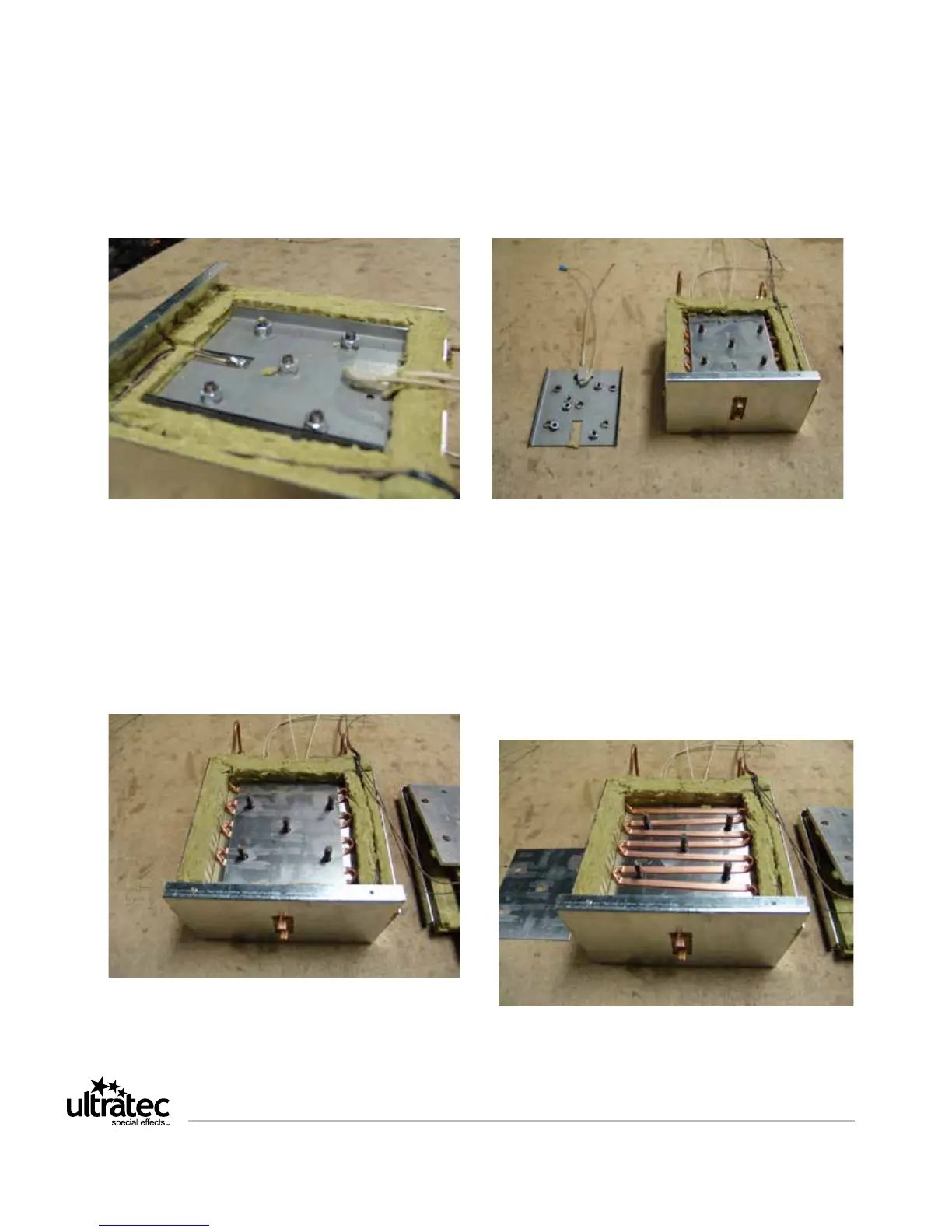

6. Using a ½” socket, loosen the ve nuts. Remove all 5 nuts and washers (these
will not be reused). Be careful not to damage any exposed wiring. Remove the
upper steel plate by gently lifting the plate up out of the way.
7. Remove the ¼” aluminum plate
cautiously to avoid damage to
the thermocouple. Examine the
thermocouple wires for moisture as
this may cause failures.
8. Remove the aluminum wear plate
that is positioned above the coil (this
will not be reused).
9. Remove the used copper tube from
the block (this part will not be
reused).
