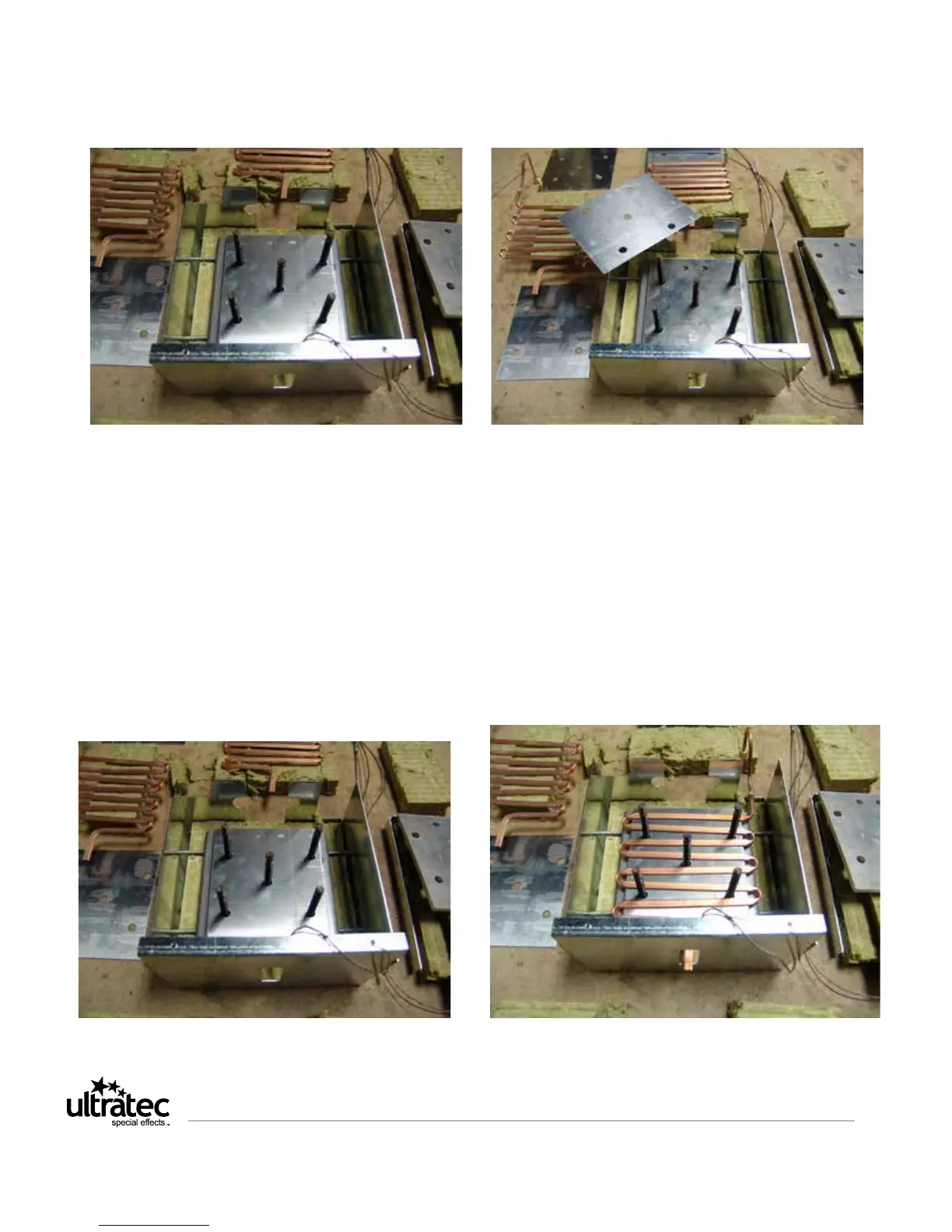

14. Remove the forth thin wear plate
(this part will not be reused).
15. When replacing the parts, ensure all mating surfaces are clean to promote good
thermal conduction.
16. Place a new narrow aluminum wear
plate on the block. Note: All plates
can only be installed one way due
to the offset bolt pattern. There are
two sizes of wear plates (narrow and
wide)
17. Place the new copper tube on the
wear plate. Adjust the runs of the
tube so they do not touch the bolts.
The bends in the coil must be facing
DOWNWARDS.
