3.4 Electric wiring
Unplug cords for power supply before connecting wires.
Otherwise an electric shock occurs.
(1)The pump rotates in the clockwise direction as seen from the front of the pump (level
gauge side).

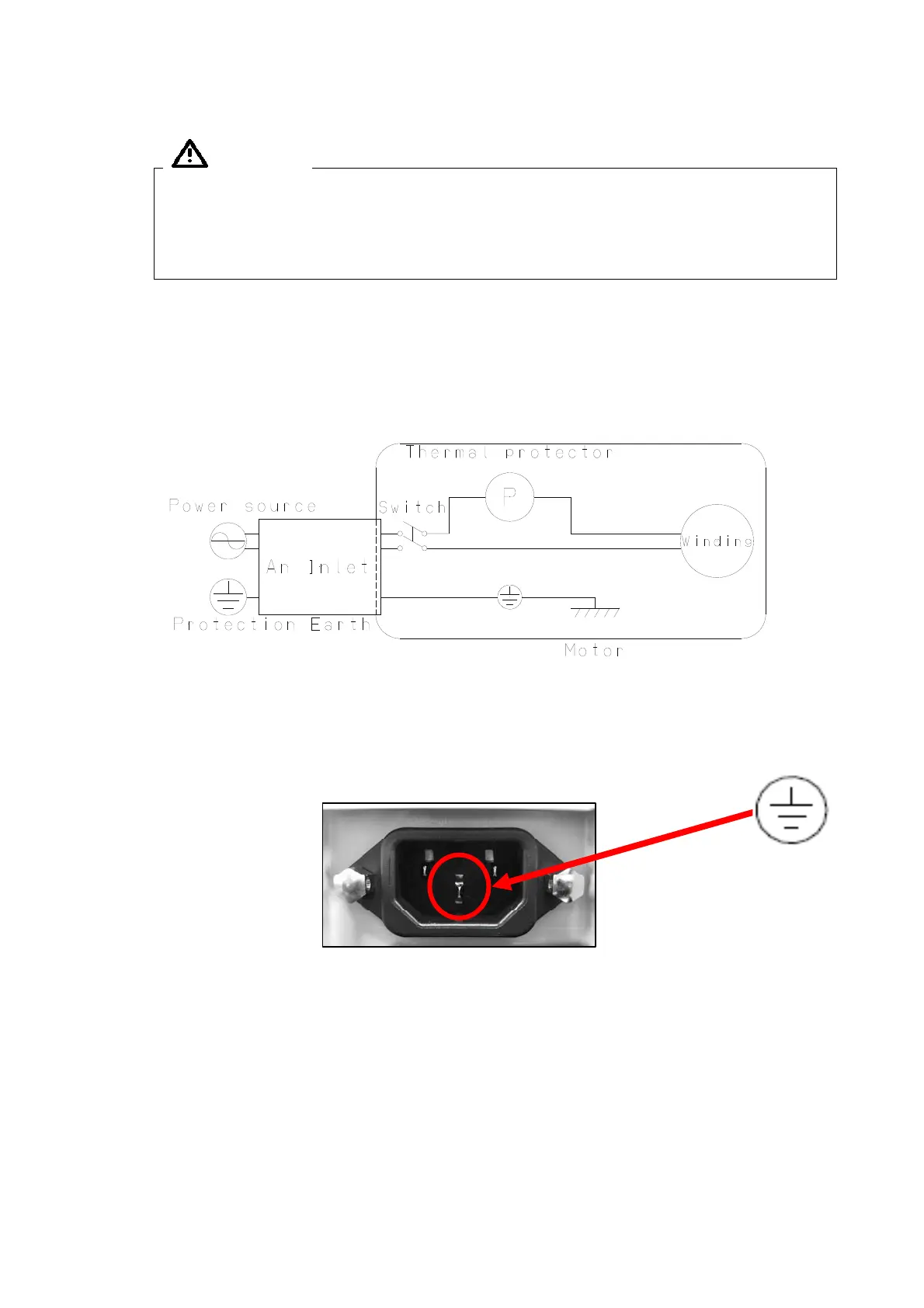

Figure3. Electric wiring diagrams
(2) An inlet is suitable for standards of EN60320－１.
Figure4. Inlet (EN60320-1)
(3) Insert an including plug cord into an Inlet as shown in figure4.
Warning
