um Renegade Commando - Rear Fender Removal

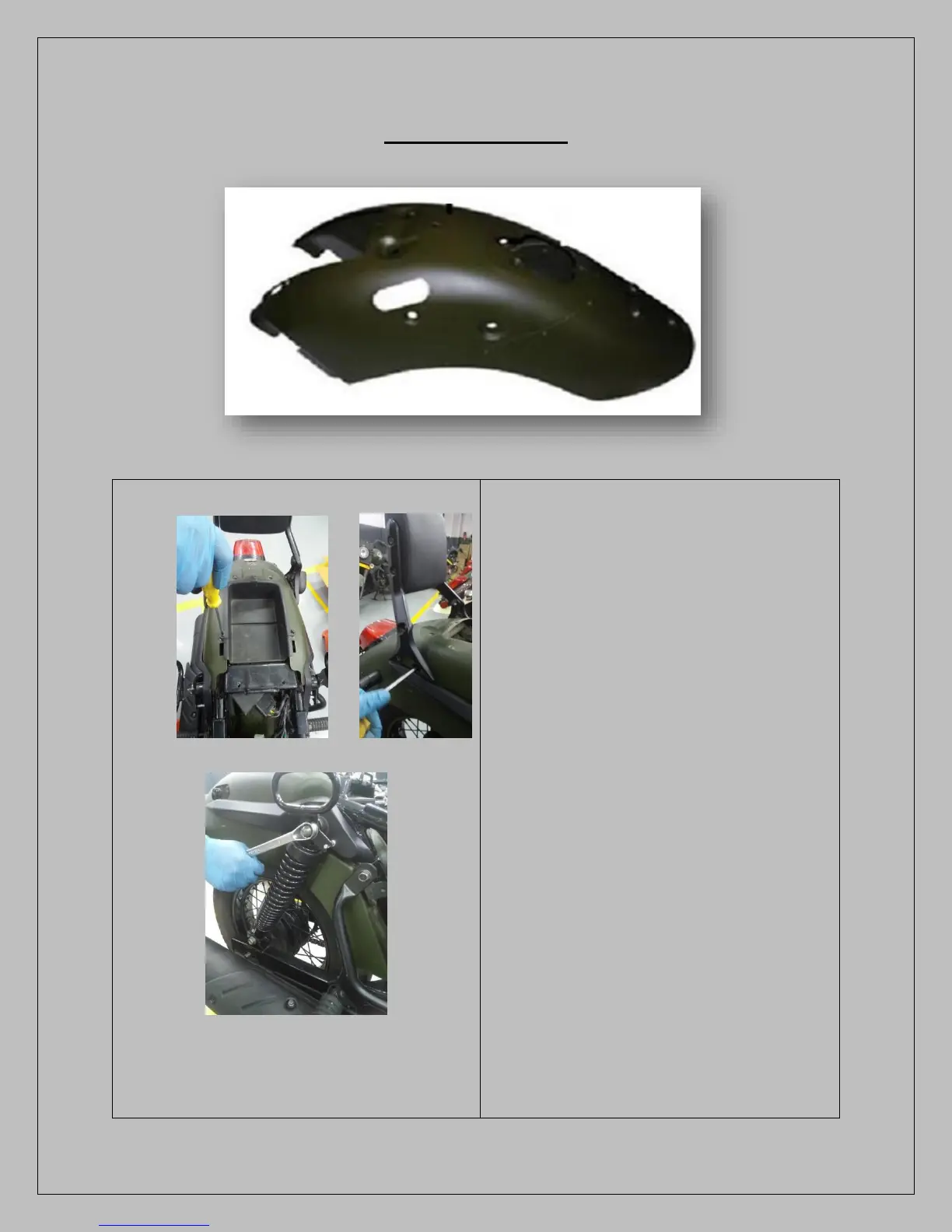

7-REAR FENDER
Remove rear seat.
Remove storage box
screws M5*17*3 No’s.
Remove backrest
 Allen bolt M8*16mm*2
No’s with spring washer
(2 each RH & LH side).
 Tool-Allen key 6mm
 Loosen RL & LH Rear Shock
absorber upper mounting
dome nut M10 (T-18).
 Remove both side rear
fender decoration plates.
Allen bolts-M8*30 (Allen
key-6 mm ).
 Remove Tail lamp lower
nut M6 , 1 No.-Ring
spanner-8*9).
