Service Manual

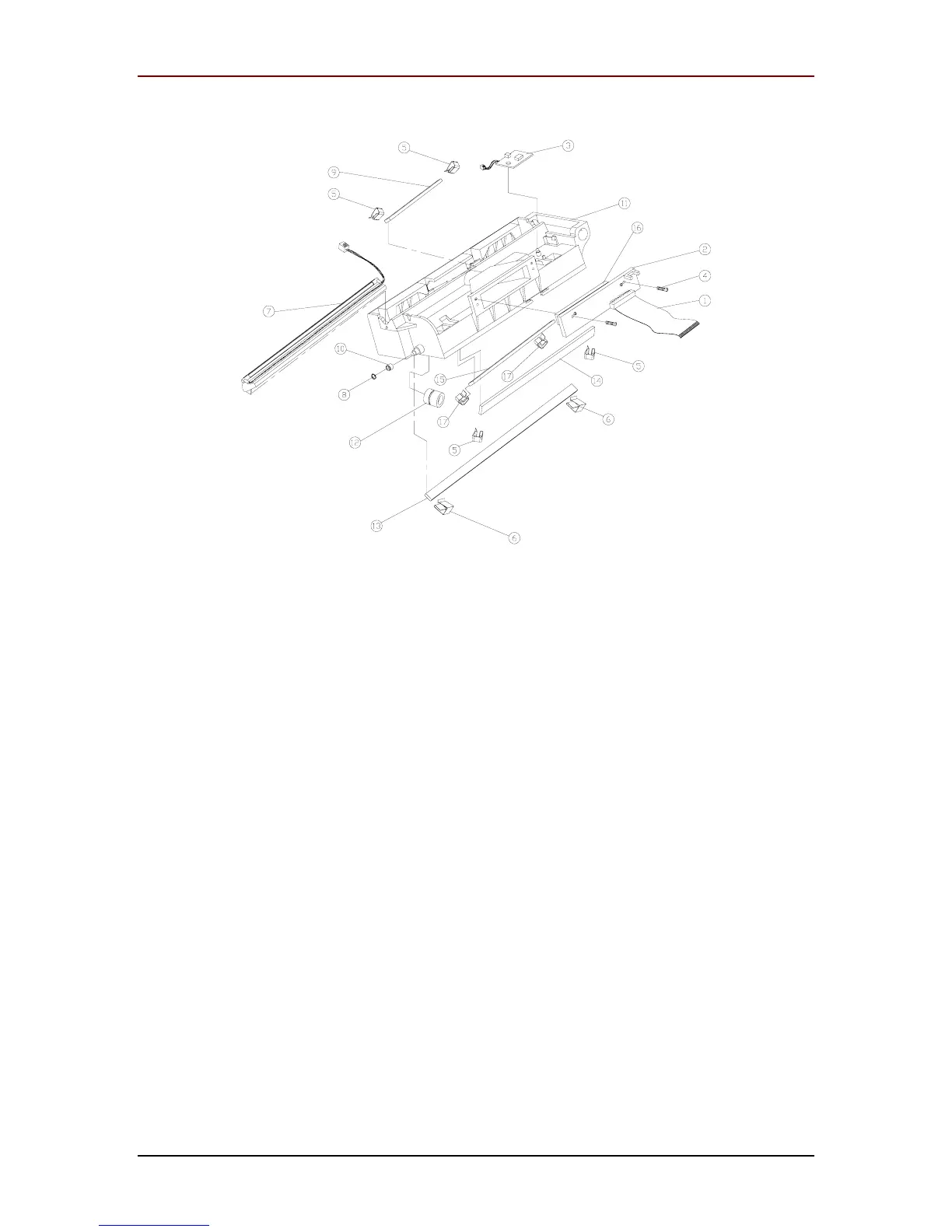

CCD Chassis Assembly

ITEM # Description

01 FLAT CABLE, 2896, 24P, 490MM, SUNRISE

02 A’SSY, CCD, PCBA

03 INV, 11V, Ø2.6X250X1, S12III, BTC

04 SCREW MCP, M3X5, BLK

05 CLIP, MIRROR, W7X6MM

06 CLIP, MIROR, W9X11MM

07 M’ASSY, LAMP, ASTRA 1220P

08 RING, CIRCULAR, 4D, EXT

09 MIRROR, 80X12X3

10 ROLLER, VX6

11 CHASSIS, SUNRISE

12 LENS, OD16X18L, S12II, YJ14

13 MIRROR, 222X23X4

14 MIRROR, 180X12X3

15 MIRROR, 150X103X3

16 PLATE, CCD/B, S12/II

17 CLIP, MIRROR, W7X5MM
