Transparency Adapter Main Components

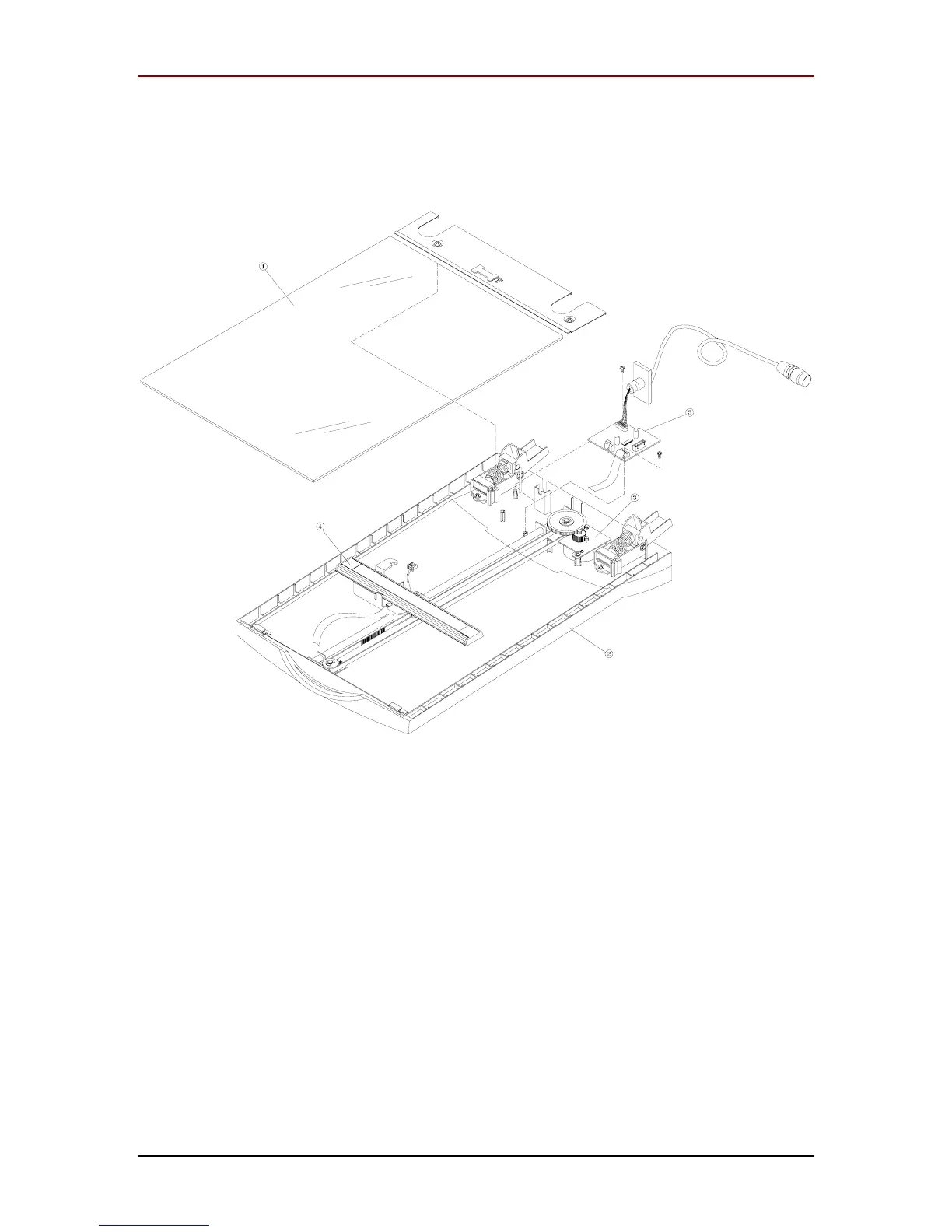

The Transparency Adapter 's main components are illustrated in the exploded diagram along with part
number descriptions in the table below. Diagrams of main components and associated part information
tables are included in the pages that follow.
Main Parts Assembly Diagram
ITEM # Description
01 MECH PARTS, UTA-3A
02 A’SSY, HOUSING, UTA-3A
03 M’ASSY, MOTOR, UTA-3A
04 M’ASSY, LAMP, UTA-3A
05 PCBA, H8H0, USE UTA-3A, REV.X2
