UMS T5 - Wiring Configuration

Appendix
41/48
8.2 Wiring configuration

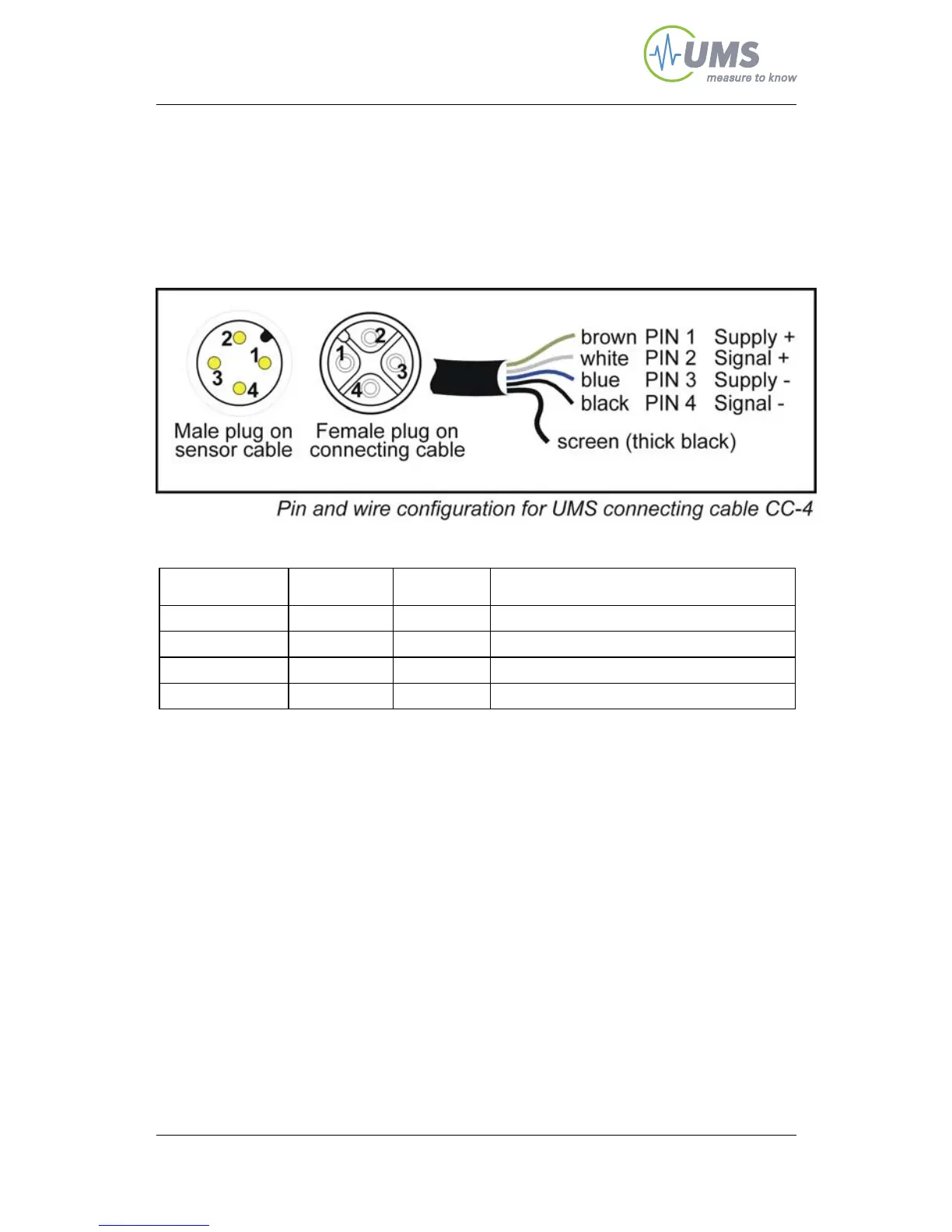

Configuration of T5 and T5x Tensiometer plug and
the 4-wire CC-4 connecting cables:
Signal Wire Pin Function
V
in
brown 1 Supply plus
V- blue 3 Supply minus
A-OUT+ white 2 Analog output plus
A-OUT- black 4 Analog output minus
