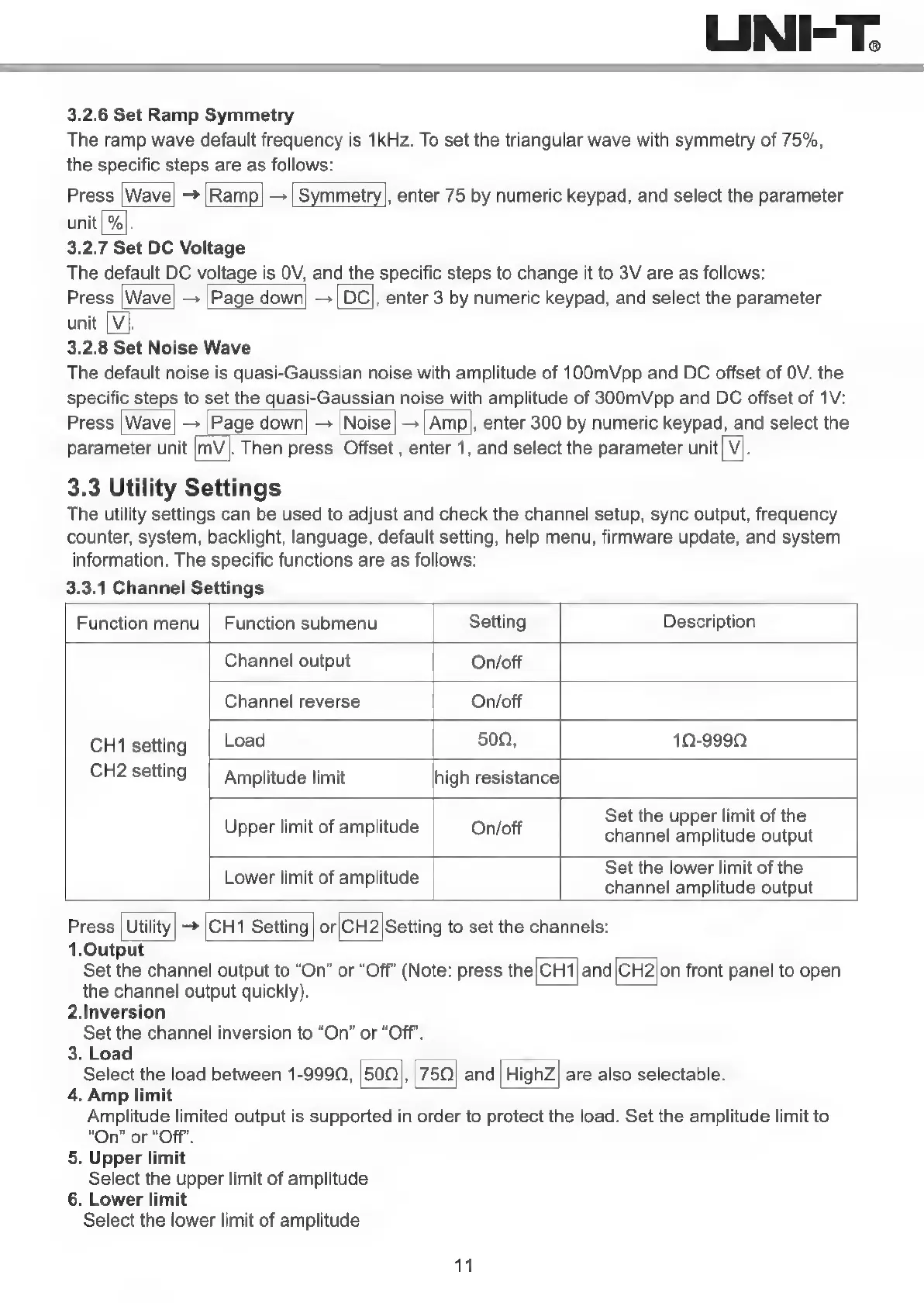

3.2.6
Set
Ramp
Symmetry
The
ramp
wave
default
frequency
is
1kHz.
To
set
the
triangular
wave
with
symmetry
of
75%,
the
specific
steps
are
as
follows:
Press (Wave
>
|Ramp)
—
|
Symmetry,
enter
75
by
numeric
keypad,
and
select
the
parameter
unit
|
%).
3.2.7
Set
DC
Voltage
The
default
DC
voltage
is
OV,
and
the
specific
steps
to
change
it
to
3V
are
as
follows:
Press
|Wave|
—
|[Page
down)
—
pc],
enter
3
by
numeric
keypad,
and
select
the
parameter
unit
[V].
3.2.8
Set
Noise
Wave
The
default
noise
is
quasi-Gaussian
noise
with
amplitude
of
100mVpp
and
DC
offset
of
OV.
the
specific
steps
to
set
the
quasi-Gaussian
noise
with
amplitude
of
300mVpp
and
DC
offset
of
1V:
Press
|Wave)
—
[Page
down|
—
|Noise|
—
|
Amp),
enter
300
by
numeric
keypad,
and
select
the
parameter
unit
mv].
Then
press
Offset
,
enter
1,
and
select
the
parameter
unit|
V|.
3.3
Utility
Settings
The
utility
settings
can
be
used
to
adjust
and
check
the
channel
setup,
sync
output,
frequency
counter,
system,
backlight,
language,
default
setting,
help
menu,
firmware
update,
and
system
information.
The
specific
functions
are
as
follows:
3.3.1
Channel
Settings
Function
menu
|
Function
submenu
Setting
Description
Channel
output
On/off
Channel
reverse
On/off
CH1
setting
Load
500,
10-9990
CH2
setting
_|_Amplitude
limit
high
resistance
Set
the
upper
limit
of
the
Upper
limit
of
amplitude
On/off
channel
amplitude
output
Set
the
lower
limit
of
the
Lower
limit
of
amplitude
channel
amplitude
output
Press
|
Utility)
>
(CH1
Setting
|or/CH2/Setting
to
set
the
channels:
1.Output
Set
the
channel
output
to
“On”
or
“Off’
(Note:
press
the/CH1/and/CH2Jon
front
panel
to
open
the
channel
output
quickly).
2.Inversion
Set
the
channel
inversion
to
“On”
or
“Off”.
3.
Load
Select
the
load
between
1-9990,
|500/,
(750)
and
|HighZ/
are
also
selectable.
4.
Amp
limit
Amplitude
limited
output
is
supported
in
order
to
protect
the
load.
Set
the
amplitude
limit
to
“On”
or
“Off”.
5.
Upper
limit
Select
the
upper
limit
of
amplitude
6.
Lower
limit
Select
the
lower
limit
of
amplitude
11
