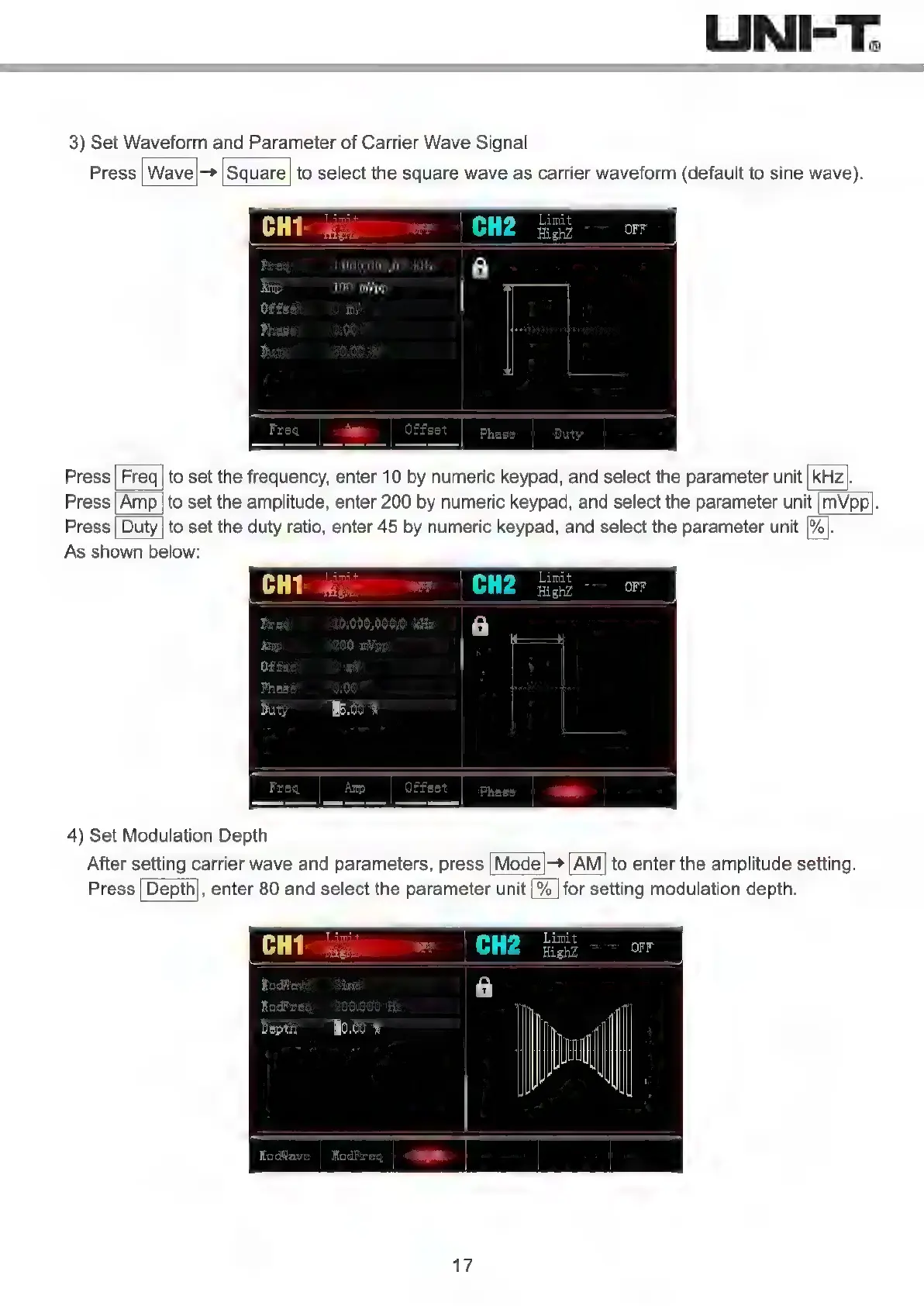

LINI-T,.
3)
Set
Waveform
and
Parameter
of
Carrier
Wave
Signal
Press
|Wavel>
|
Square
|
to
select
the
square
wave
as
carrier
waveform
(default
to
sine
wave).
1-000,000,00
kk:
â
100
|
0
mv
Press
[Freq
to
set
the
frequency,
enter
10
by
numeric
keypad,
and
select
the
parameter
unit
[kHz].
Press
[Amp
|to
set
the
amplitude,
enter
200
by
numeric
keypad,
and
select
the
parameter
unit
[mVpp].
Press
[Duty]
to
set
the
duty
ratio,
enter
45
by
numeric
keypad,
and
select
the
parameter
unit
ol).
As
shown
below:
4)
Set
Modulation
Depth
After
setting
carrier
wave
and
parameters,
press
|Mode/—
|AM/
to
enter
the
amplitude
setting.
Press
|
Depth/,
enter
80
and
select
the
parameter
unit
|%
|for
setting
modulation
depth.
17
