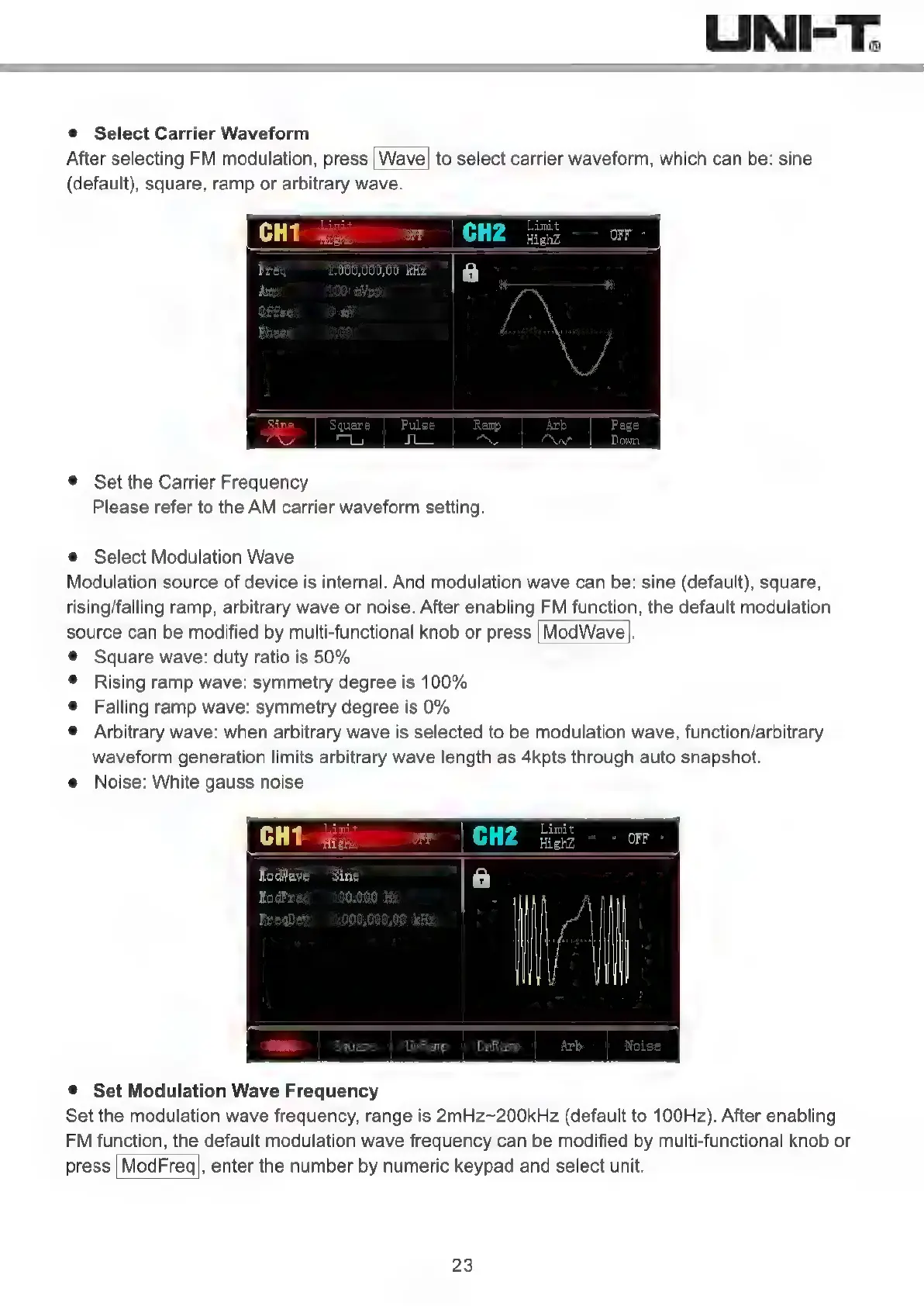

Select Carrier Waveform
After selecting FM modulation, press Wave) to select carrier waveform, which can be: sine
(default), square, ramp or arbitrary wave.
Set the Carrier Frequency
Please refer to the AM carrier waveform setting.
Select Modulation Wave
Modulation source of device is internal. And modulation wave can be: sine (default), square,
rising/falling ramp, arbitrary wave or noise. After enabling FM function, the default modulation
source can be modified by multi-functional knob or press [ModWavel.
Square wave: duty ratio is 50%
Rising ramp wave: symmetry degree is 100%
Falling ramp wave: symmetry degree is 0%
Arbitrary wave: when arbitrary wave is selected to be modulation wave, function/arbitrary
waveform generation limits arbitrary wave length as 4kpts through auto snapshot.
Noise: White gauss noise
Square | UpRamp | Dakar
Set Modulation Wave Frequency
Set the modulation wave frequency, range is 2mHz-200kHz (default to 100Hz). After enabling
FM function, the default modulation wave frequency can be modified by multi-functional knob or
press |ModFreg|, enter the number by numeric keypad and select unit.
