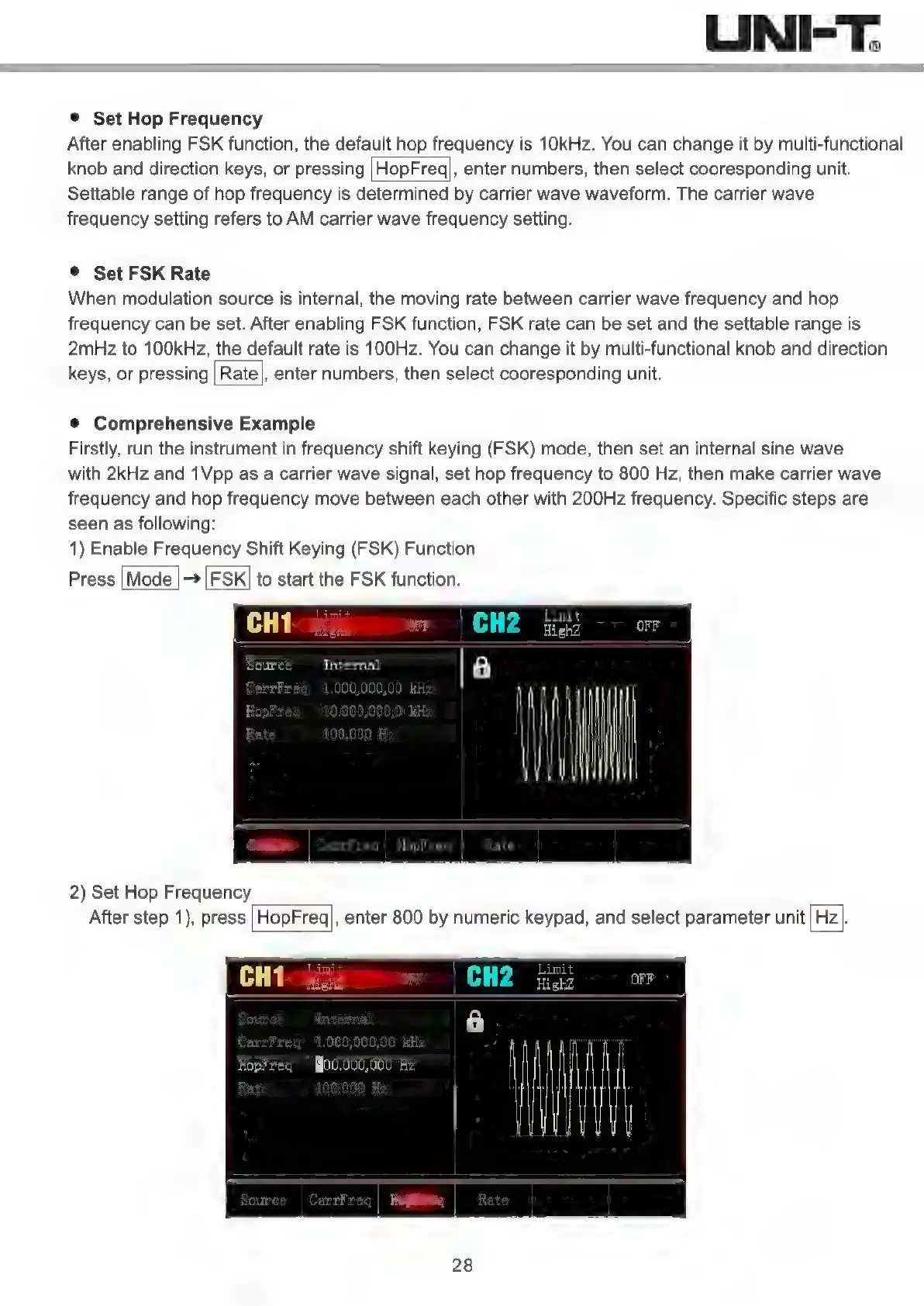

Set
Hop
Frequency
After
enabling
FSK
function,
the
default
hop
frequency
is
10kHz.
You
can
change
it
by
multi-functional
knob
and
direction
keys,
or
pressing
|HopFreg/,
enter
numbers,
then
select
cooresponding
unit.
Settable
range
of
hop
frequency
is
determined
by
carrier
wave
waveform.
The
carrier
wave
frequency
setting
refers
to
AM
carrier
wave
frequency
setting.
®
Set
FSK
Rate
When
modulation
source
is
internal,
the
moving
rate
between
carrier
wave
frequency
and
hop
frequency
can
be
set.
After
enabling
FSK
function,
FSK
rate
can
be
set
and
the
settable
range
is
2mHz
to
100kHz,
the
default
rate
is
100Hz.
You
can
change
it
by
multi-functional
knob
and
direction
keys,
or
pressing
[Rate],
enter
numbers,
then
select
cooresponding
unit.
@
Comprehensive
Example
Firstly,
run
the
instrument
in
frequency
shift
keying
(FSK)
mode,
then
set
an
internal
sine
wave
with
2kHz
and
1Vpp
as
a
carrier
wave
signal,
set
hop
frequency
to
800
Hz,
then
make
carrier
wave
frequency
and
hop
frequency
move
between
each
other
with
200Hz
frequency.
Specific
steps
are
seen
as
following:
1)
Enable
Frequency
Shift
Keying
(FSK)
Function
Press
[Mode
|>[Fsk]
to
start
the
FSK
function.
Limit
Internal
|
â
1.000,000,00
kHz
HSDEDEe:
HN
|
|
|
|
|
I
|
HN
|
|
|
Carrfreq
|
HopFrea
Kate
2)
Set
Hop
Frequency
______
After
step
1),
press
(HopFreg
enter
800
by
numeric
keypad,
and
select
parameter
unit
[Hz].
28
