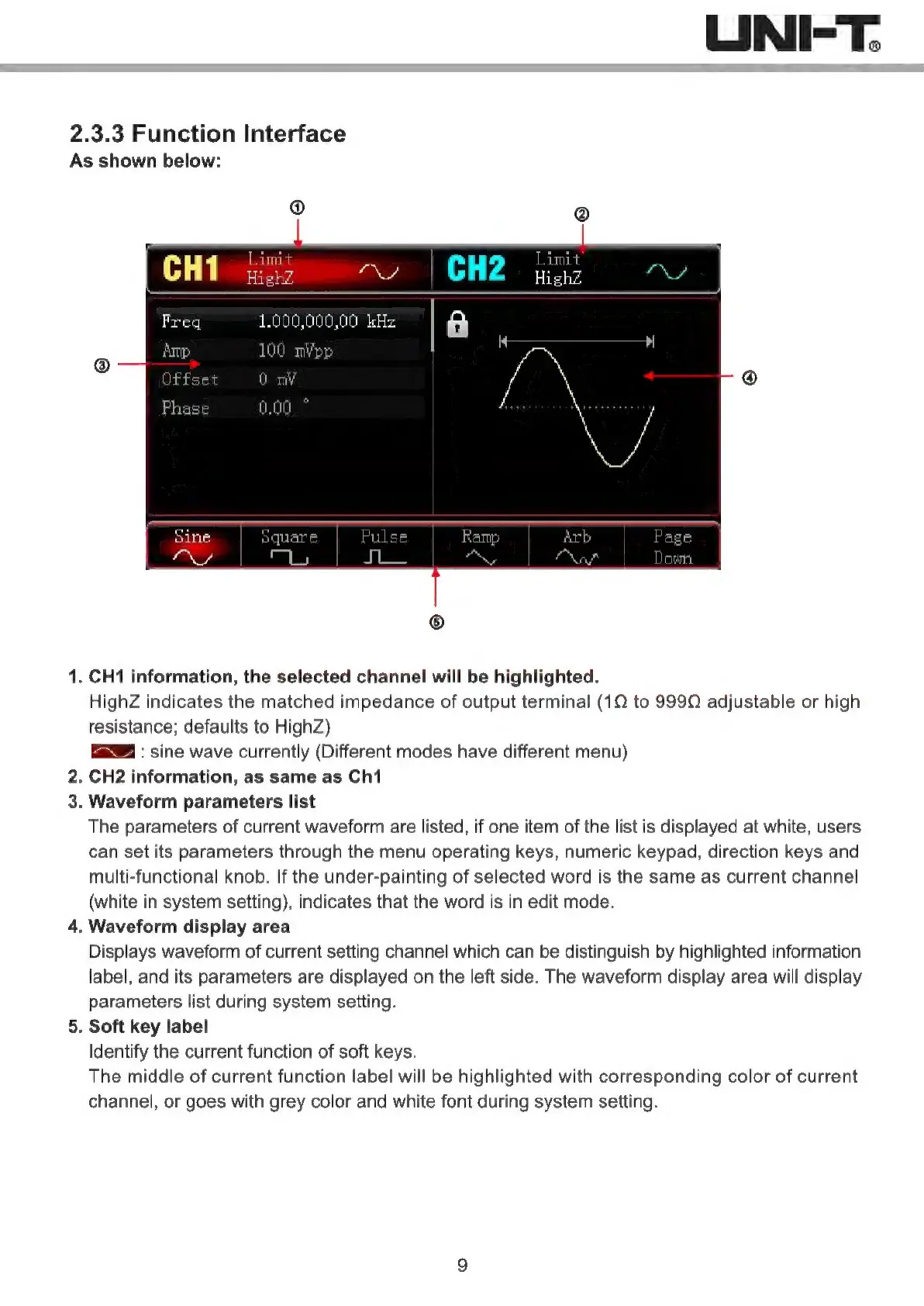

2.3.3
Function
Interface
As
shown
below:
1.
CH1
information,
the
selected
channel
will
be
highlighted.
HighZ
indicates
the
matched
impedance
of
output
terminal
(10
to
9990
adjustable
or
high
resistance;
defaults
to
HighZ)
Ka
:
sine
wave
currently
(Different
modes
have
different
menu)
2.
CH2
information,
as
same
as
Chí
3.
Waveform
parameters
list
The
parameters
of
current
waveform
are
listed,
if
one
item
of
the
list
is
displayed
at
white,
users
can
set
its
parameters
through
the
menu
operating
keys,
numeric
keypad,
direction
keys
and
multi-functional
knob.
If
the
under-painting
of
selected
word
is
the
same
as
current
channel
(white
in
system
setting),
indicates
that
the
word
is
in
edit
mode.
4.
Waveform
display
area
Displays
waveform
of
current
setting
channel
which
can
be
distinguish
by
highlighted
information
label,
and
its
parameters
are
displayed
on
the
left
side.
The
waveform
display
area
will
display
parameters
list
during
system
setting.
5.
Soft
key
label
Identify
the
current
function
of
soft
keys.
The
middle
of
current
function
label
will
be
highlighted
with
corresponding
color
of
current
channel,
or
goes
with
grey
color
and
white
font
during
system
setting.
