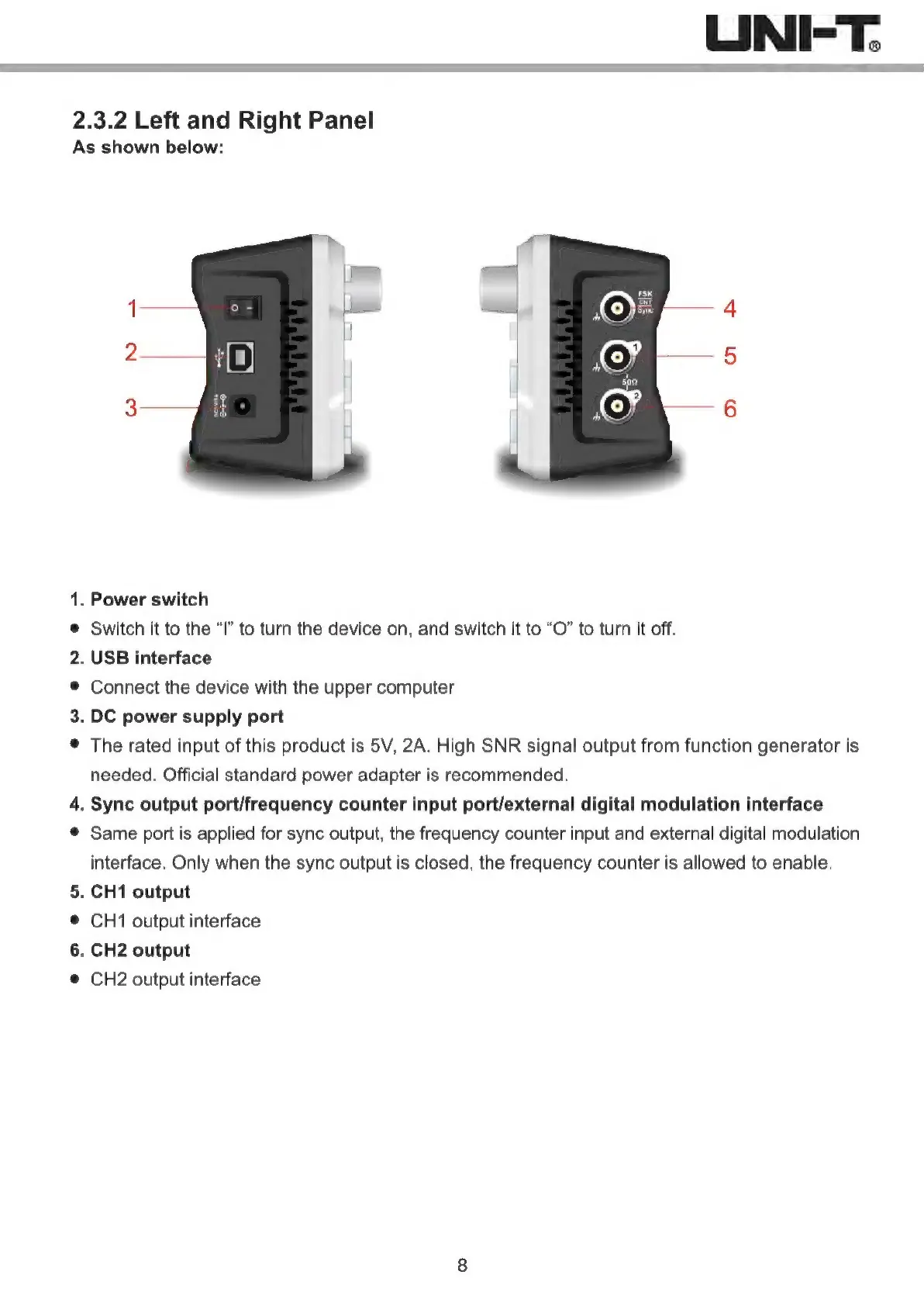

2.3.2 Left and Right Panel
As shown below:
» ee Nn ee
„ Power switch
Switch it to the “1” to turn the device on, and switch it to “O” to turn it off.
„USB interface
Connect the device with the upper computer
„DC power supply port
The rated input of this product is 5V, 2A. High SNR signal output from function generator is
needed. Official standard power adapter is recommended.
4. Sync output port/freguency counter input port/external digital modulation interface
ee oe a
Same port is applied for sync output, the frequency counter input and external digital modulation
interface. Only when the sync output is closed, the frequency counter is allowed to enable.
„CHI output
CH1 output interface
„ CH2 output
CH2 output interface
