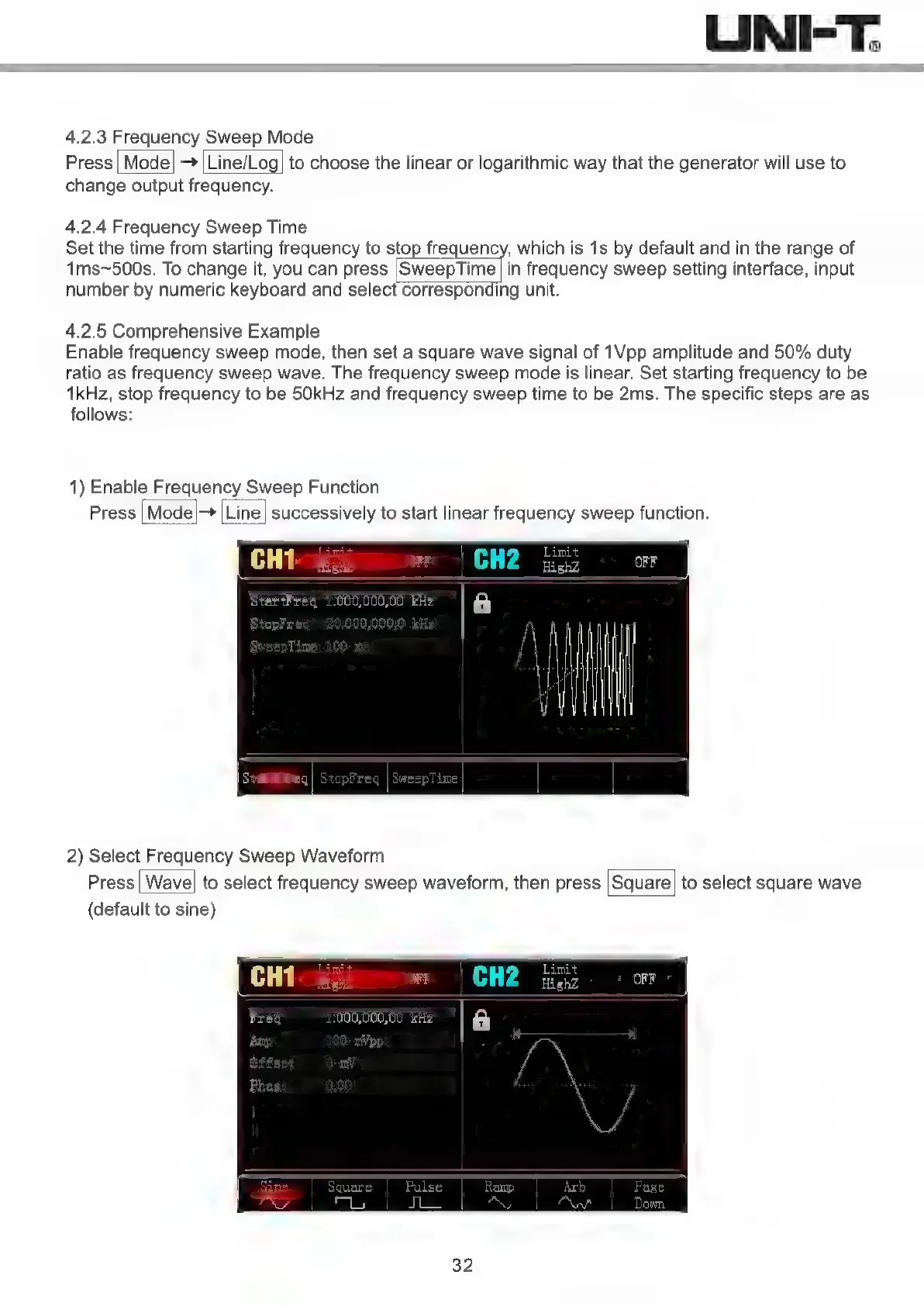

4.2.3
Frequency
Sweep
Mode
Press
Mode)
>
Line/Log|
to
choose
the
linear
or
logarithmic
way
that
the
generator
will
use
to
change
output
frequency.
4.2.4
Frequency
Sweep
Time
Set
the
time
from
starting
frequency
to
stop
frequency,
which
is
1s
by
default
and
in
the
range
of
1ms-500s.
To
change
it,
you
can
press
|SweepTime
|
in
frequency
sweep
setting
interface,
input
number
by
numeric
keyboard
and
select
corresponding
unit.
4.2.5
Comprehensive
Example
Enable
frequency
sweep
mode,
then
set
a
square
wave
signal
of
1Vpp
amplitude
and
50%
duty
ratio
as
frequency
sweep
wave.
The
frequency
sweep
mode
is
linear.
Set
starting
frequency
to
be
1kHz,
stop
frequency
to
be
50kHz
and
frequency
sweep
time
to
be
2ms.
The
specific
steps
are
as
follows:
1)
Enable
Frequency
Sweep
Function
Press
Model
Line)
successively
to
start
linear
frequency
sweep
function.
2)
Select
Frequency
Sweep
Waveform
Press
Wave]
to
select
frequency
sweep
waveform,
then
press
(square!
to
select
square
wave
(default
to
sine)
