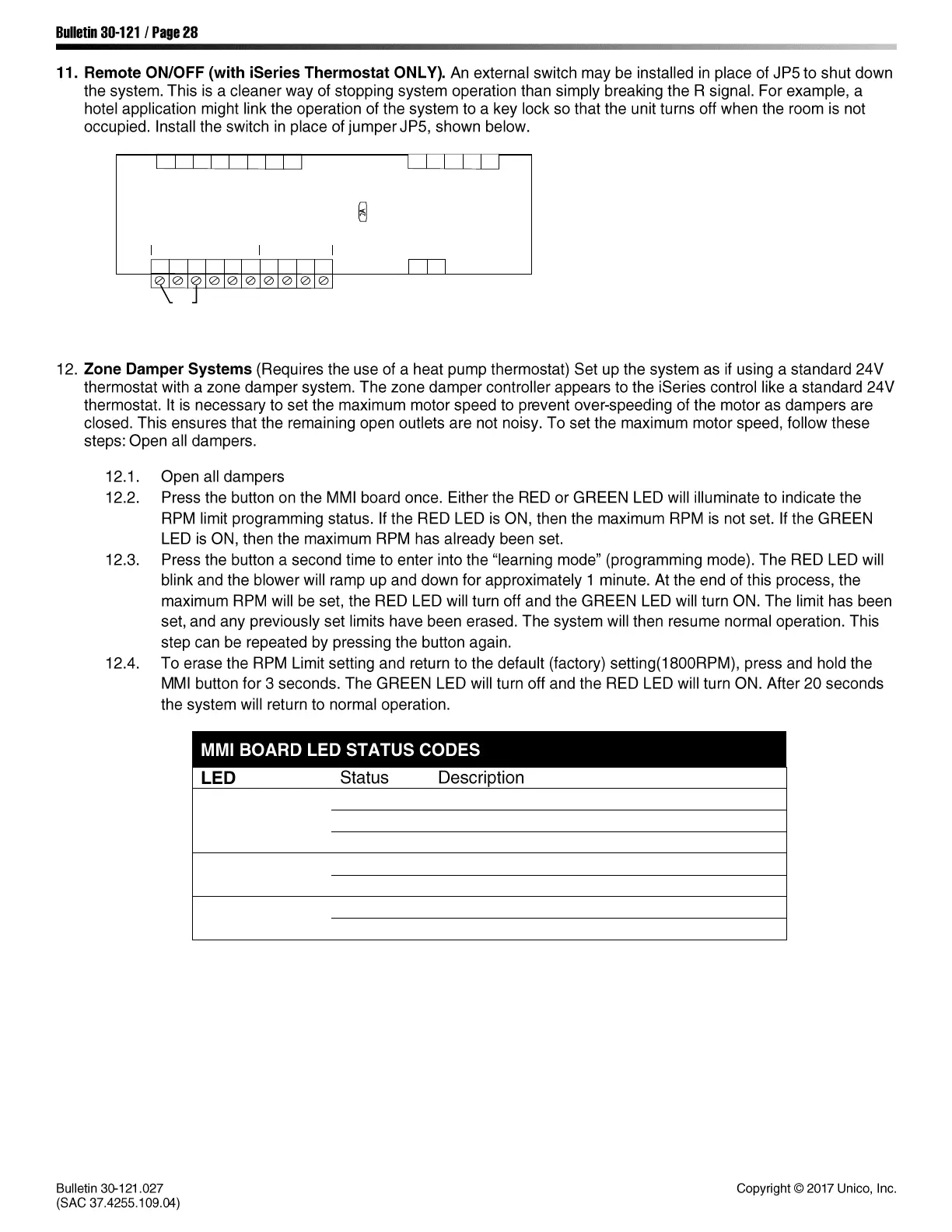

Unico i Series User Manual

LED 1 (Red)
SOLID
Maximum RPM is not set
OFF
Maximum RPM is already set
BLINKING
System is “learning” the maximum RPM
LED 2 (Blue)
SOLID
In programming mode
OFF
Normal operation
LED 3 (Green)
SOLID
Maximum RPM is set
OFF
Maximum RPM is not set
REMOTE
ON/OFF
(SEE MANUAL)
JP5
1 2
J1
OUTPUT
(WHT)
3 4 5 6 7 8
J2
INPUT
(WHT)
R B G Y1Y2 C C S1
HEATER
THERMOSTAT
S2S3
1 2 3 4 5
J3
+24V
(WHT)
RELAY
BOARD
A01837-G01
1 2
F1
