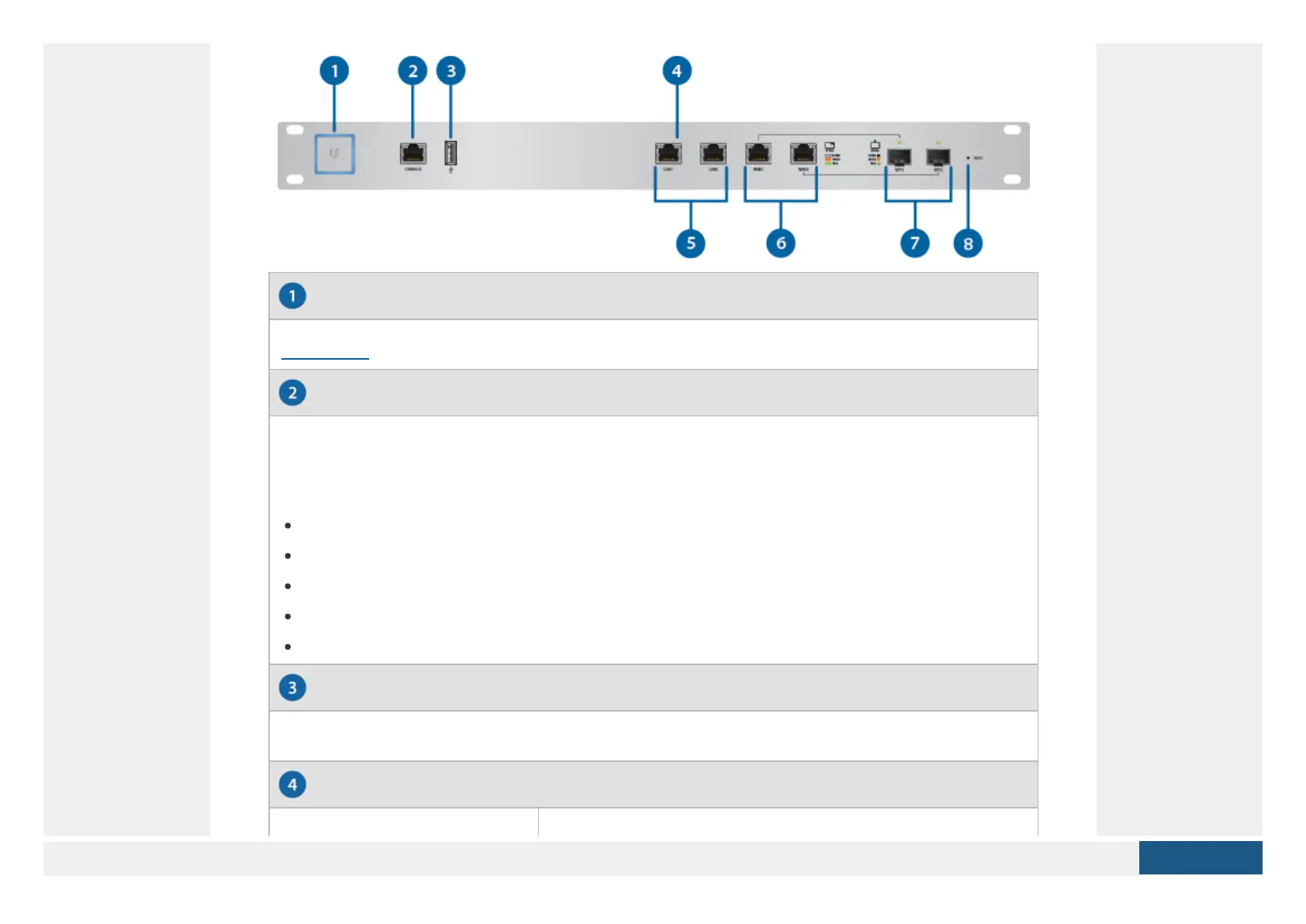

System LED
Console Port
USB Port
LAN / WAN / SFP Speed/Link/Act LED
Click here for detailed descriptions.
RJ45 serial console port for Command Line Interface (CLI) management. Use an
RJ45-to-DB9 serial console cable, also known as a rollover cable, to connect the
Console port to your computer. Then configure the following settings as needed:
Baud rate 115200
Data bits 8
Parity NONE
Stop bits 1
Flow control NONE
Reserved for future use.
